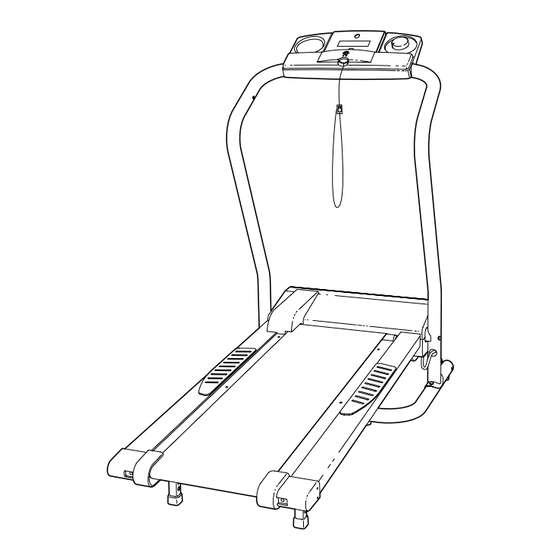

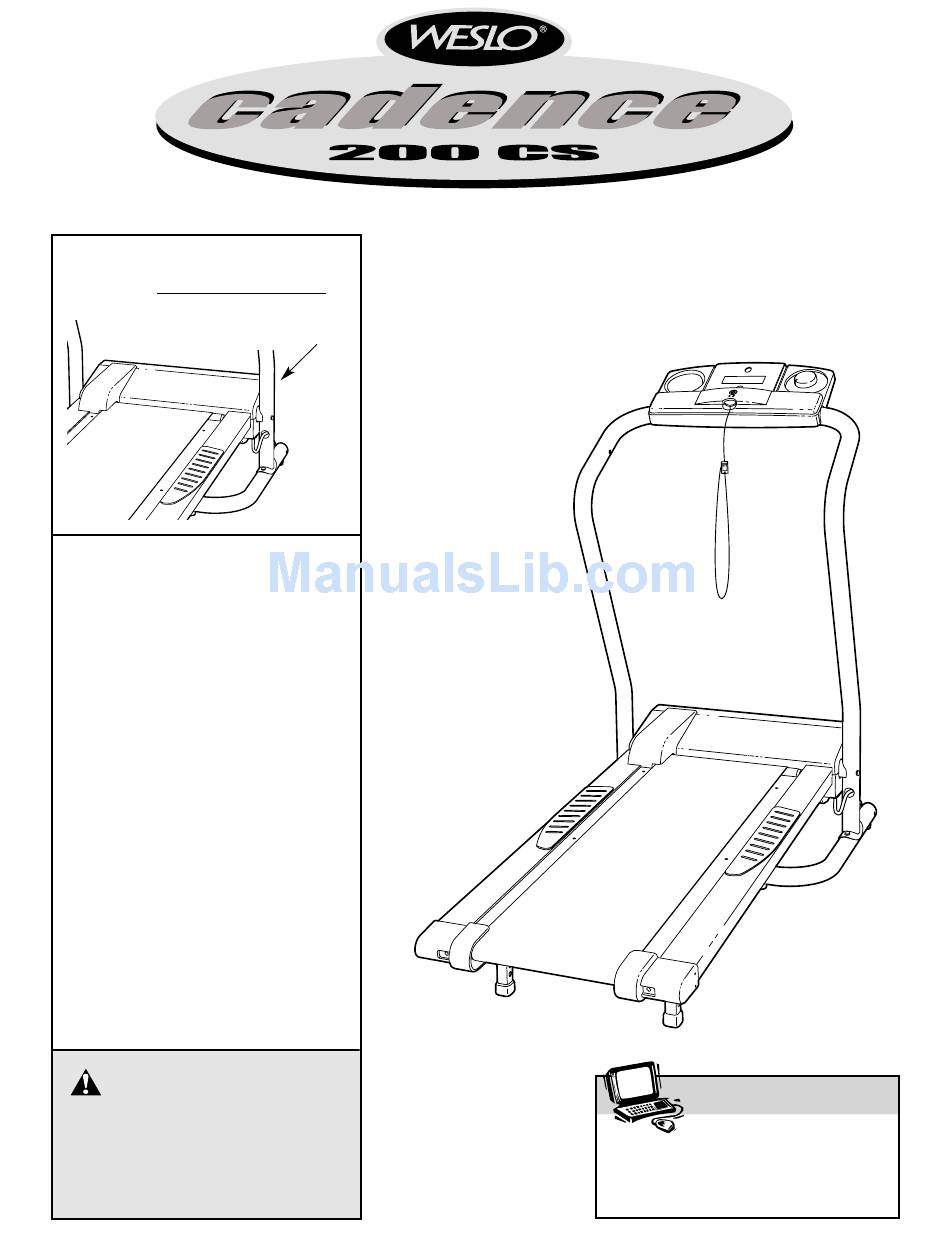

Model No. WLTL19012
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete
satisfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading

Related Manuals for Weslo WLTL19012

Summary of Contents for Weslo WLTL19012

  • Page 1 Model No. WLTL19012 Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, we will guarantee complete satisfaction through direct assis- tance from our factory. TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL- FREE CUSTOMER HOT LINE.

  • Page 2: Table Of Contents

    11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 7. To purchase a surge suppressor, see your local WESLO dealer or call 1-800-806- 3651 and order part number 146148. 12. Failure to use a properly functioning surge suppressor could result in damage to the con- trol system of the treadmill.
  • Page 3 15. Never start the treadmill while you are stand- ing on the walking belt. Always hold the handrails while using the treadmill. 16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed. 17.

  • Page 4: Before You Begin

    The model number of the treadmill is WLTL19012. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location).

  • Page 5: Assembly

    ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
  • Page 6 4. See inset drawing 4c. If there is a plastic tie in the square hole in the bottom of the Right Handrail (6), remove it. Attach the Console Plate (4) to the Right and Left Handrails (6, 7) by pushing the Handrails inward and tightening two Console Bolts (9) and Handrail Washers (11) into the Console Plate and Handrails.

  • Page 7: Operation And Adjustment

    (see drawing 1 at the right). To purchase a surge sup- pressor, see your local WESLO dealer or call 1-800- 806-3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS).
  • Page 8 DIAGRAM OF THE CONSOLE Water Bottle Holder (Water bottle is not included) Note: If there is a thin sheet of clear plastic on the console, remove it. CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turn- ing on the power.
  • Page 9 Reset the console and start the walking belt. Turn the speed control to the RESET position. Note: Each time the walking belt is stopped, the speed control must be turned to the RESET position be- fore the walking belt can be restarted. Next, slowly turn the speed control until the walk- ing belt begins to move at slow speed.

  • Page 10: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shown at the right.
  • Page 11 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, slide the latch pin to the right. Lock the pin in place by pressing the end of the pin into the slot in the storage latch as shown in the inset drawing.

  • Page 12: Maintenance And Trouble-Shooting

    MAINTENANCE AND TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a.
  • Page 13 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 7. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- come damaged.

  • Page 14: Conditioning Guidelines

    CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for in- dividuals over the age of 35 or individuals with pre-existing health problems. The following guidelines will help you to plan your ex- ercise program.
  • Page 15 EXERCISE FREQUENCY To maintain or improve your condition, complete three workouts each week, with at least one day of rest be- SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1.

  • Page 16: Ordering Replacement Parts

    • The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAW- ING in the center of this manual) WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.

  • Page 17: Part Identification Chart

    PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. Screw (5)–8 Console Bolt (9)–2 Star Washer (33)–2 Formed Washer (31)–4 Handrail Bolt (12)–4 Nut (42)–6 Handrail Washer (11)–4 Wheel Bolt (14)–2...
  • Page 18 PART LIST—Model No. WLTL19012 Key No. Qty. Description Console Speed Control Key/Clip Console Plate Screw Right Handrail Left Handrail Battery Cover Console Bolt/Motor Tension Bolt Frame Pivot Bolt Handrail Washer Handrail Bolt Frame Spacer Wheel Bolt Wheel Base Cap Handrail Nut...
  • Page 19 EXPLODED DRAWING—Model No. WLTL19012 R0802A...

This manual is also suitable for:
