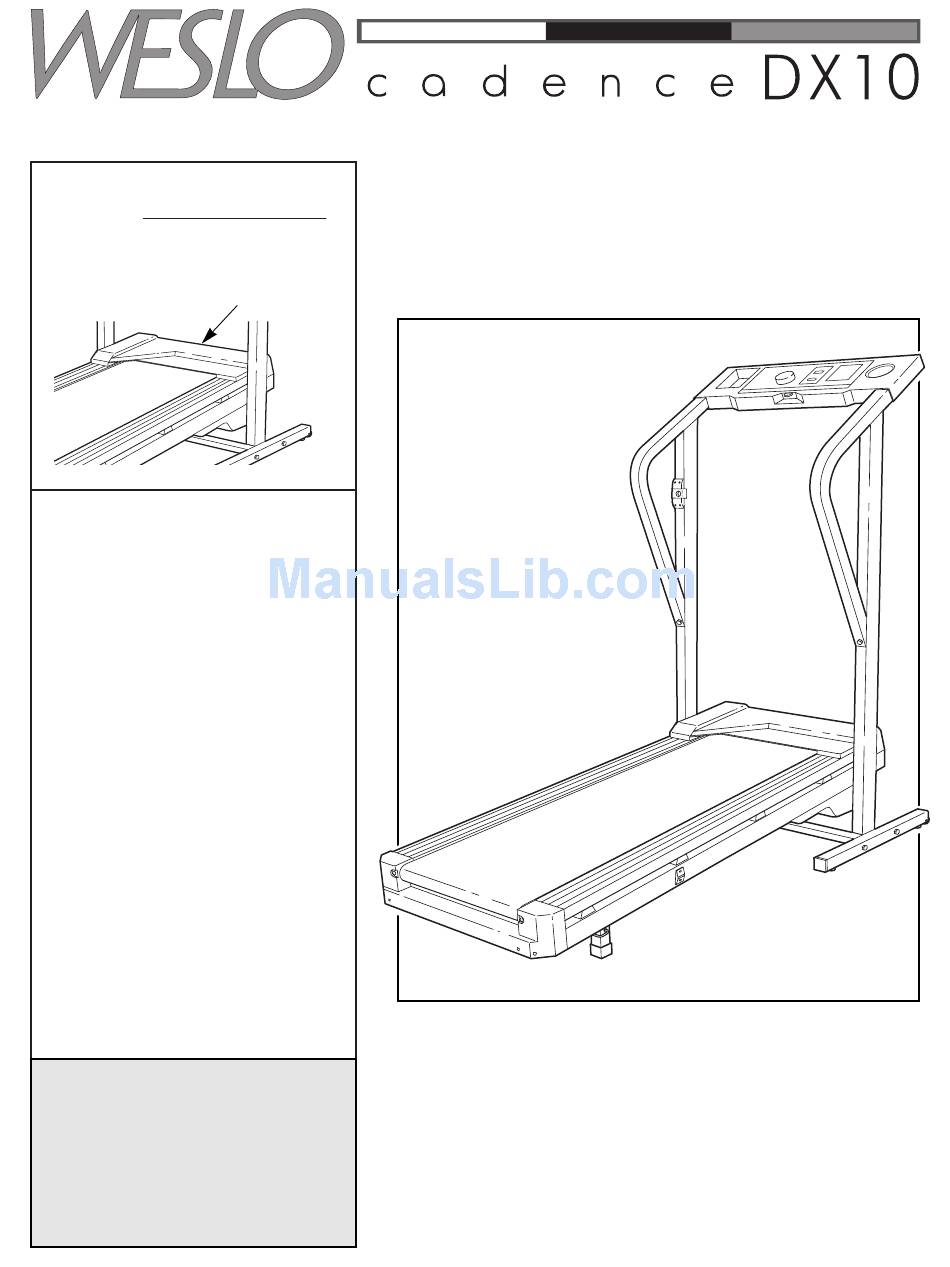

Owner's Manual
Model No. WLTL35080
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are
committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfac-
tion through direct assistance
from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
¨
USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Weslo DX10
Summary of Contents for Weslo DX10
- Page 1 Model No. WLTL35080 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satisfac- tion through direct assistance from our factory.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ............. 2 BEFORE YOU BEGIN . - Page 3 15. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed. 16. To reduce the possibility of the treadmill overheating, do not operate the treadmill continuously for longer than one hour. 17.
-
Page 4: Before You Begin
And when youÕre not exercising, the CADENCE DX10 can be folded up, re- quiring less than half the floor space of other treadmills. For your benefit, read this manual carefully before using the treadmill. -
Page 5: Assembly
ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the small parts used in assembly. Assembly requires the included allen wrench driver , two adjustable wrenchs 1. - Page 6 4. With the help of a second person, hold the Console Base (12) and the Right Handrail (32) near the right Upright (31) as shown. Insert the Wire Harness (28) down into the right Upright; bend the Wire Harness, if necessary. Next, insert the bracket on the Right Handrail into the right Upright.
- Page 7 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. Caution: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower or move the treadmill. 1.
- Page 8 DIAGRAM OF THE CONSOLE Speed Control CAUTION: Before operating the console, read the following precautions. ¥ Do not stand on the walking belt when turn- ing on the power. ¥ Always wear the clip (see the drawing above) while operating the treadmill. When the key is removed from the console, the walking belt will stop.
- Page 9 Insert the key fully into the power switch. Inserting the key will not turn on the dis- play. The display will turn on when the ON/RESET button is pressed or when the walking belt is start- ed. Note: If you just installed batteries, the display will already be on.
-
Page 10: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT Your treadmill features a walking belt coated with PERFORMANT LUBE , a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat- form. They will deteriorate the walking belt and cause excessive wear. - Page 11 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, slide open the storage latch. Pivot the treadmill until the catch and the foot rail are past the storage latch.
-
Page 12: Maintenance And Trouble-Shooting
MAINTENANCE AND TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 13 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt has shifted to the left, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjust- ment bolt clockwise, and the right bolt counterclock- wise, 1/4 of a turn each.
-
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems. The following guidelines will help you to plan your exer- cise program. - Page 15 Training Zone Exercise After warming up, increase the intensity of your exer- cise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exer- cise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exerciseÑnever hold your breath.
- Page 16 PART LISTÑModel No. WLTL35080 Key No. Qty. Description Motor Belt Motor/Pulley/Flywheel/Fan Pulley/Flywheel/Fan Motor Motor Pivot Bolt Motor Tension Bolt Motor Tension Washer Star Washer Motor Tension Nut Hood Screw Motor Hood Console Base Controller Battery Cover Cage Nut Releasable Cable Tie Latch Spring Latch Bracket Storage Latch...
-
Page 18: Ordering Replacement Parts
¥ The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING in the center of this manual). WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.
