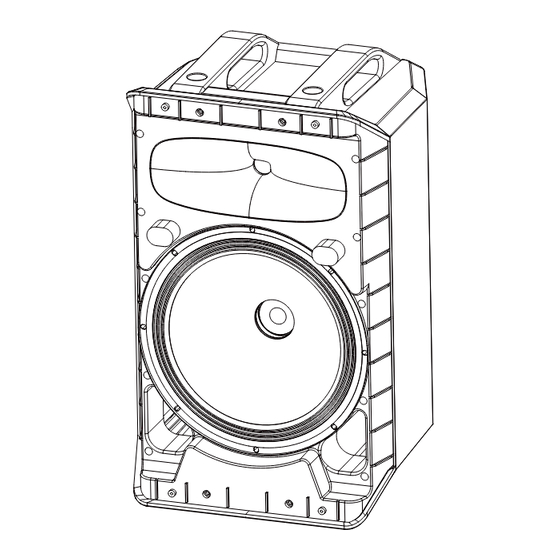

- Page 1 Wharfedale Pro Typhon Series User Manual TYPHON-AX8 TYPHON-AX8-BT TYPHON-AX12 TYPHON-AX12-BT POWERFUL | PORTABLE | VERSATILE PA WWW.WHARFEDALEPRO.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS …………………………………………… 1 TYPHON - Pronounced - “TYF—ON” ……………………………………………… 2 IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ………………………… 3 - 4 REAR PANEL FEATURES ..………………………………………………………… 5 - 8 TECHNICAL DRAWINGS ………..……..……..……..……..……………………….. 9 - 10 SPECIFICATIONS ……………………………………………………………………. 11 - 12... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS... -
Page 4: Typhon - Pronounced - "Tyf-On
Bluetooth model. A polypropylene cabinet design with a full frontal steel grille houses the most advanced active loudspeakers ever created by Wharfedale Pro. This injection moulded cabinet is carefully engineered to feature 5 carry handles making transportation easy and well balanced. -
Page 5: Important Warnings & Safety Instructions
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 6 CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
-
Page 7: Rear Panel Features
REAR PANEL FEATURES Typhon-AX12 and Typhon-AX12-BT... - Page 8 Typhon-AX8 and Typhon-AX8-BT DSP SETTING DSP SETTING FLAT MONITOR BASS PUNCH FLAT MONITOR BASS PUNCH D-EQ D-EQ ∞ ∞ ∞ ∞ VOLUME VOLUME VOLUME VOLUME LINE LIMIT LINE LIMIT LINE POWER POWER PAIR 90Hz 90Hz FRONT FRONT LOOP LOOP (BALANCED) (BALANCED) (BALANCED) (BALANCED)
- Page 9 Bluetooth operation (Typhon-AX12-BT and Typhon-AX8-BT only) : a. MONO Mode: Press and release the PAIR button on one speaker only. Select “Wharfedale Pro BT” on your device. The BT LED will change to solid when paired. To disconnect, press and release the PAIR button.
- Page 10 GAIN selection switch A: This switch selects the proper gain structure for INPUT A. If a microphone is connected to INPUT A, use mic mode (up). If the signal source is anything other than a microphone (eg an analogue playback device, keyboard or mixer output) use the line selection (down).
-
Page 11: Technical Drawings
TECHNICAL DRAWINGS TYPHON-AX12 and TYPHON-AX12-BT 154.5 340.0 344.0 Typhon Monitor Wedge Typhon is supplied with a monitor wedge adaptor. This supplied accessory gives you the perfect angle when using Typhon as a stage monitor. - Page 12 TECHNICAL DRAWINGS Typhon-AX8 and Typhon-AX8-BT 124.5 124.5 256.0 240.0...
-
Page 13: Specifications
SPECIFICATIONS Model Name Typhon-AX12 Typhon-AX12-BT System Type Active 12" 2-way Active 12" 2-way Frequency Response (+/-3dB) 55Hz-20kHz 55Hz-20kHz Frequency Range (- 10 dB) 50Hz-20kHz 50Hz-20kHz Maximum SPL (peak @1m) 129dB 129dB Sensitivity (@ 1W / 1m) 98dB 98dB Low Frequency Transducer Size (mm / inches) 305mm / 12"... - Page 14 SPECIFICATIONS Model Name Typhon-AX8 Typhon-AX8-BT System Type Active 8" 2-way Active 8" 2-way Frequency Response (+/-3dB) 65Hz-20kHz 65Hz-20kHz Frequency Range (- 10 dB) 60Hz-20kHz 60Hz-20kHz Maximum SPL (peak @1m) 127dB 127dB Sensitivity (@ 1W / 1m) 96dB 96dB Low Frequency Transducer Size (mm / inches) 203.8mm / 8"...
- Page 16 2020 March 2020...
