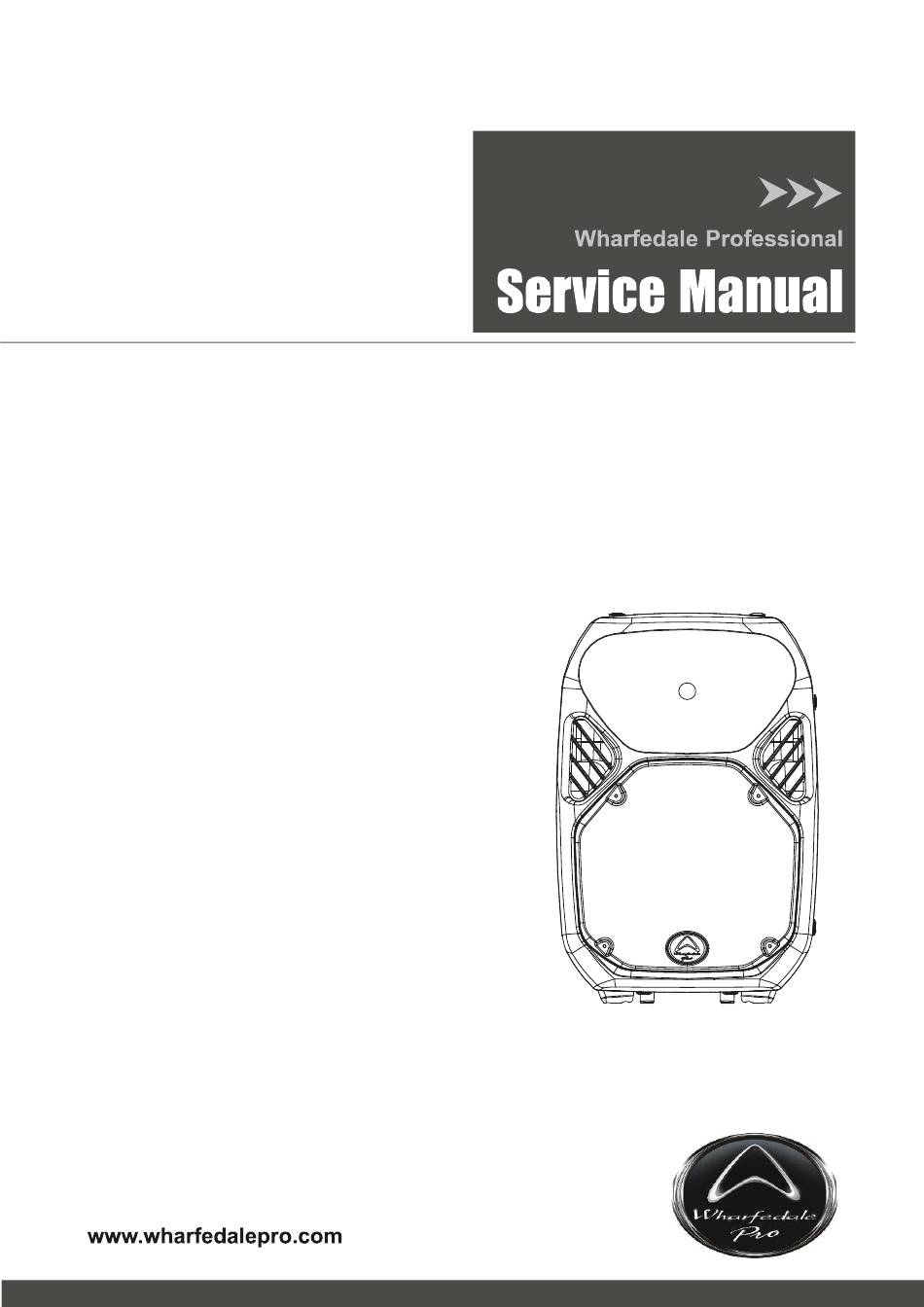

  • Page 1 TITAN-AX15...
  • Page 2 VERSION HISTORY Date Update Content June. 12, 2017 The First Release TITAN-AX15...

  • Page 3: Table Of Contents

    CONTENT Introduction Specification Assembly Sketch ASSEMBLY PARTS LIST Schematic Diagram 8-12 Wir ng Di gram Silk screen of Bottom 14-19 Maintenance Alignment Procedure Electronic Parts List 21-24 Country Bom Deviation TITAN-AX15...

  • Page 4: Introduction

    This manual has been prepared with the greatest care, it is intended for information only and no liability shall be accepted for errors or changes to specification. For further service information, parts lists and updates, please contact our web-site at www.international audio group.com . 2011 International Audio Group Limited. All rights reserved. TITAN-AX15...

  • Page 5: Specification

    SPECIFICATION Model Name Titan-AX15 System Type Active 15" 2-way Frequency Response (+/-3dB) 50Hz-18kHz Frequency Range (- 10 dB) 40Hz-20kHz Maximum SPL(peak)(@1m) 129dB Sensitivity @ 1W / 1m) 98dB Low Frequency Transducer Size (mm / inches) 381mm/15" Voice-Coil Size (mm / inches) 75mm /3”...
  • Page 6 Dimensions - Unpacked (mm / inches): Height 728.5mm/28.7in Width Front 480.6mm/18.9n Width Rear 480.6mm/18.9n Depth 395.6mm/15.6in Dimensions - Packed (mm / inches): Height 830mm/32.7in Width Front 514mm/20.2in Width Rear 514mm/20.2in Depth 489mm/19.3in Net Weight (kg / lbs) 22.6kg/49.7lbs Gross Weight (kg / lbs) 27.4kg/60.3lbs TITAN-AX15...

  • Page 7: Assembly Sketch

    ASSEMBLY SKETCH 274-0400900786R 201-2010490203R 559-5001300071R L01-07020322A 321-4201202286-1R 249-2207100001R 500-1200951100R 557-0400116001R 537-6001100801AR L01-07010190A 535-4032100801R 565-0832100000R ZD-70401-01R 381-2105000000R 537-8000135801AR 243-2104902000R 573-5003000081AR 293-2010470003R 537-5001250801AR 573-2719010050R 537-5001250801AR 200-2207102003R 231-2600275212R 565-0829100000R 381-2105000000R 310-2207100000R 313-2104900001R TITAN-AX15...
  • Page 8 ASSEMBLY SKETCH TITAN-AX15...

  • Page 9: Assembly Parts List

    TITAN15 PLASTIC HANDLE TITAN15 BLACK HANDLE 19 537-8000135801AR SCREWS M8*35 BLACK 20 557-4001208061AR SCREWS 4.0*20 BLACK 21 L01-07020322A AMPLIFIER TITAN-AX15 22 201-2010490203R TITAN15 MAIN FRAME TITAN15 BLACK 23 274-0400900786R PLASTIC COVER M8*5*7.8*φ4*φ9 BLACK 24 321-4201202286-1R TITAN15/12 SCREW NUT M12XM8X42MM BLACK...
  • Page 10 307-1030000241R Hexagon copper cylinder hexagon appearance PCBA-DSP panel DIP combination 088-1100143681R DIP WHARFEDALE PRO IMPACT-AX12 DSP A00 ALL 088-1731011001R Titan 15 amplifier panel has pluged Titan 15 amplifier panel has pluged MP(+)3*8 electrophoresis black D Harden 537-3000081001R Pan machine screw...
  • Page 11 SCHEMATIC DIAGRAM TITAN-AX15...

  • Page 12: Schematic Diagram

    SCHEMATIC DIAGRAM INPUT PCB TITAN-AX15...
  • Page 13 SCHEMATIC DIAGRAM POWER SUPPLY TITAN-AX15...
  • Page 14 SCHEMATIC DIAGRAM AMPLIFIER PCB TITAN-AX15...
  • Page 15 SCHEMATIC DIAGRAM TITAN-AX15...

  • Page 16: Wir Ng Di Gram I A

    WIRING DIAGRAM TITAN-AX15...

  • Page 17: Silk Screen Of Top / Bottom

    SILK SCREEN OF BOTTOM INPUT PCB BOARD TITAN-AX15...
  • Page 18 SILK SCREEN OF BOTTOM TITAN-AX15...
  • Page 19 SILK SCREEN OF BOTTOM TITAN-AX15...
  • Page 20 SILK SCREEN OF BOTTOM TITAN-AX15...
  • Page 21 SILK SCREEN OF BOTTOM TITAN-AX15...
  • Page 22 SILK SCREEN OF BOTTOM AMP PCB BOARD TITAN-AX15...

  • Page 23: Maintenance Alignment Procedure

    VR Max. Hum&White noise No abnormal autoexcitation/screechy test adjust volume No abnormal AMP Mode and Bypass switch No abnormal Operate AMP Mode and Bypass .has Pop noise or not on/off pop noise with 264V mains line, 1/3 power No abnormal TITAN-AX15...

  • Page 24: Electronic Parts List

    TW - 4 hole: 3. 0，L=2. 0 3 . 5，6. 0mm TW - 4 hole: 3. 0，L=2. 0 3 . 5，6. 0mm 2.00 2.00 D16 D17 D16 D17 537-3001140801-1ARScrew M3*14/ Black 2.00 LOCK IC D11 591-0003012500R Screw M3*12 Black 5.00 LOCK IC TITAN-AX15...
  • Page 25 1.00 006-4714162593AR capacitance 470UF/100V 16*25 20%105℃ PH=7.5MM 2.00 C61 C62 016-4742100001R capacitance 0.47uF 250V 5% PH=15mm WIMA MKP4F034704D00JSSD 1.00 537-3000061001R Screw MP (+) 3*6，Black 1.00 324-0280220111R mica plate TO-3P 28*22 1.00 016-4742100002R capacitance 0.47UF/250V 5% 16*13*7 2.00 C55 C59 TITAN-AX15...
  • Page 26 537-3001060301-1R Sccrew M3*6/ nicke 2.00 591-0003008400R Sccrew M3*8mm nickel 1.00 088-1003013681-1R PCBA-input DIP DIP WHARFEDALE PRO DVP(titan)-AX15 IPT A00 ALL Assombly 006-1004051163R capacitance SM10μF 50V 20% 9.00 C4 C6 C14-15 C24 C28 C36 C43 C116 006-1014061153AR capacitance 100UF/25V 6.3*11 20%105℃3.0MM 9.00...
  • Page 27 BC846B SOT-23 NXP 1.00 128.3*122.7*1.6MM FR4 2L 1OZ green IPT A00 PCB-input board 053-1100100436R 1.00 PCBA-DSP DIP 088-1101023681-1R DIP WHARFEDALE PRO Titan-AX15 DSP A00 ALL BURN 1.00 assombly 100UF 10V 85℃，KW ，NICHICON ，20% ，Φ5*11MM 006-1014051123-1R capacitance 2.00 C91 C101 006-1024081213R capacitance 1000uF,6.3V,105DegC,8mmDia,12mmH,3.5mmPitch,Lelon 1.00...

  • Page 28: Country Bom Deviation

    T3.15A 250V 5*20MM UL LITTLE FUSE 088-1100340481R Power Supply Power Supply pcb assembly L01-07020322A Amplifier Active FG 062-8330000100R Power cord H03VV-F3G 1.0MM2 L=1.8M WP-101001-14A 031-4200510121R FUSE T3.15A 250V 5*20MM UL LITTLE FUSE 088-1100340481R Power Supply Power Supply pcb assembly TITAN-AX15...
  • Page 29 CHINA: Sanecore Industrial Park, Jiuwei, Xixiang, Shenzhen, China 518102 CHINA: Tel: + 86-755-2748-4420. Fax: + 86-755-2965-1484 www.wharfedalepro.com The information in this service manual is subject to change without notice. All rights reserved © 2011 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
