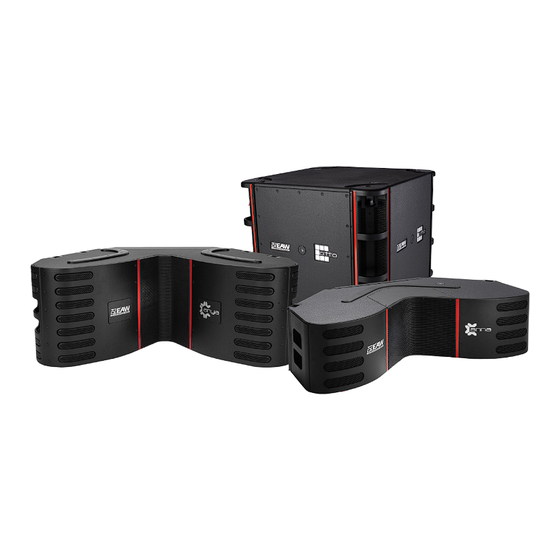

Accessory & Rigging Guide

Advertisement

Table of Contents
loading

Related Manuals for EAW ADAPTive systems

Summary of Contents for EAW ADAPTive systems

  • Page 1 Accessory & Rigging Guide...

  • Page 2: Table Of Contents

    Table of Contents Cabling System and Distro Racks ........................ 3 Audio/Data Connections ......................... 3 Dante™ Digital Audio & Control Network ................... 3 Analog Audio ............................5 AES/EBU .............................. 6 AC Mains Connection ..........................6 Electrical Warnings ............................. 8 AC MAINS SUPPLY ........................... 8 AC Mains Cable ............................
  • Page 3 Anya Caster Pallet ..........................25 Anna Caster Pallet ..........................26 Otto Caster Pallet ..........................27 Service, Inspection & Maintenance ......................28 General Service ............................. 28 Contacting EAW ............................28 Operating Questions ..........................28 Service Information ..........................28...

  • Page 4: Cabling System And Distro Racks

    Audio/Data Connections Dante™ Digital Audio & Control Network EAW recommends that users deliver digital audio and control signals via Ethernet and the Dante™ protocol using the fully redundant network. Connect a CAT5e (or higher) cable from a Dante™-capable platform to the Distro Rack input etherCON™...
  • Page 5 13-18 19-24* 25-32* Contact EAW *Array size results in a Design Factor of less than the recommended 10:1. Refer to EAW Resolution for further details. Cable lengths are as follows: Short Loom: 6, 8, 10, 12, 14, 16 feet (6 tails)

  • Page 6: Analog Audio

    (i.e. connecting the Primary port to the Secondary network) will result in communication errors. While the ADAPTive systems provide a complete data and power cabling solution, users can consult the cable and connector information below to develop their own cabling solutions if desired to meet specific challenges they face in system deployment.

  • Page 7: Aes/Ebu

    AES/EBU Users wishing to deliver digital audio using the AES/EBU standard must provide their own XLR cables. Connect the output from your AES/EBU digital audio source to the XLR-3F Input connector on the rear panel. Do not use loop-through connector when running system with AES/EBU input. Due to induced latency, loop output does not pass AES/EBU signals.
  • Page 8 265V AC, 50/60 Hz. No module setting changes are necessary to switch between regional voltage ranges (120, 208, 220, etc.) As with data, ADAPTive systems include pre-defined AC power cable assemblies with tails and extensions, based around 6-module fan-out looms of varying lengths, as well as extenders.

  • Page 9: Electrical Warnings

    *Array size results in a Design Factor of less than the recommended 10:1. Refer to EAW Resolution for further details. Loom: 6, 8, 10, 12, 14, 16 feet (6 tails) Extension: 12 feet CAUTION: There is no power switch on the loudspeaker. When connected to the AC mains, the loudspeaker will be fully operational, with the output level controlled by the signal source feeding the loudspeaker as well as by internal DSP.

  • Page 10: Warnings

    There is no option to splay each module and the modules are only designed to be flown in a straight vertical orientation. Use the correct holes on the Flybar as determined by EAW Resolution 2, based on rigging conditions and weight restrictions. Ground Stacking ADAPTive columns may be ground-stacked.

  • Page 11: Suspension Of Anya Flybar

    D. Four points – Array is suspended from outermost front and rear points. In all situations, it is critical to verify in EAW’s Resolution software that your configuration does not exceed recommended loads for any aspects of the Anya rigging system. It is the responsibility of the installer/technician to verify the chain motors, connecting members (i.e.

  • Page 12: Suspension Of Anna - Option 1 - Standard Flybar

    D. Four points – Array is suspended from outermost front and rear points. In all situations, it is critical to verify in EAW’s Resolution software that your configuration does not exceed recommended loads for any aspects of the Anya rigging system. It is the responsibility of the installer/technician to verify the chain motors, connecting members (i.e.

  • Page 13: Suspension Of Anna - Option 2 - Flybar Lite

    B. Two points – Array is suspended from two points, one on each side (left and right) of center. In all situations, it is critical to verify in EAW’s Resolution software that your configuration does not exceed recommended loads for any aspects of the Anya rigging system. It is the responsibility of the installer/technician to verify the chain motors, connecting members (i.e.

  • Page 14: Suspension Of Otto Flybar

    Note that this simply requires rotating the flybar 90 degrees relative to point B above. In all situations, it is critical to verify in EAW’s Resolution software that your configuration does not exceed recommended loads for any aspects of the Anya rigging system. It is the responsibility of the installer/technician to verify the the chain motors, connecting members (i.e.

  • Page 15: Rigging Modules To Flybar (Single Column Anya)

    Rigging Modules to Flybar (Single column Anya) Note: All complete Anya systems will ship with Flybars already on top of stacks. 1. The Flybar has built-in Rigging Latches that will slide into the Rigging Channels of the top Anya module. On the top Anya module, pull back on the Pin Grip to open the Rigging Channel. 2.

  • Page 16: Rigging Modules To Flybar (Single Column Otto)

    3. Once the Rigging Latches are set into the channel simply push on the Pin Grip to engage the pin. Check each Anna module’s Pin Grip to ensure that you do not see the orange reflective tape. Any visible orange indicates that the pins are not fully engaged. Pull the Pin Grip all the way out, then firmly push the Pin Grip in until you feel a positive stop.

  • Page 17: Rigging Modules From Modules (Anya/Anna)

    5. On the Caster Pallet, remove the four quick-release pins linking it to the bottom module, releasing the stack from the Caster Pallet. 6. Verify that the bottom module’s Rigging Latches are fully retracted and inspect the entire array. When an array is properly and safely flown, the ONLY orange that should be visible will be on the Latches of on the bottom-most module.
  • Page 18 the enclosure) until they stop. DO NOT PULL OUT THE PIN GRIPS AS THEY ARE SUSPENDING THE BOTTOM MODULE FROM THE ONE ABOVE IT. Lock the Rigging Latches in the retracted position by rotating the Latch Grips inwards (towards each other) 90 degrees. The Latch Grip handles will now be oriented horizontally (pointing inwards).

  • Page 19: Rigging Modules From Modules (Otto)

    10. Once this inspection is complete, fly out to trim height (if a complete array). (Fig. 4) If array is not complete, raise it high enough to clear the next stack of Anya modules and repeat from Step #2 above. Rigging Modules from Modules (Otto) Each Otto module contains its own rigging support structure, based on the simple and safe Rigging Latch-and-pin design.
  • Page 20 Fig. 1b 5. Lower the flown column until it just rests on top of the modules on the Caster Pallet, leaving the Rigging Latches of the bottom module in the retracted position. The stacking keys will assist alignment. (Fig. 2a) 6.
  • Page 21 8. On the Caster Pallet, remove the four quick-release pins linking it to the bottom module, releasing the stack from the Caster Pallet. 9. Verify that the bottom module’s Rigging Latches are fully retracted and inspect the entire array. When an array is properly and safely flown, the ONLY orange that should be visible will be on the Latches of on the bottom-most module.

  • Page 22: Rigging Multi-Column Arrays (Anya/Anna)

    Rigging Multi-Column Arrays (Anya/Anna) The Anya/Anna Flybar has a built in “pin and tapered slot” feature, allowing users to create multi- column arrays with the proper spacing and angle between columns. Before rigging multi-column arrays, verify your configuration in Resolution. 1.

  • Page 23: Rigging Multi-Column Arrays (Otto)

    Rigging Multi-Column Arrays (Otto) The Otto Flybar has a built in “pin and tapered slot” feature, allowing users to create multi-column arrays with the proper spacing and angle between columns. Before rigging multi-column arrays, verify your configuration in Resolution. 1. Begin with two stacks of up to 4 Otto modules, both with Flybars already rigged on top. Because users will need to move the arrays using the Caster Pallets, they may choose to stack only one or two modules to reduce the weight.

  • Page 24: Attaching Flybar To Distro Racks

    2. Slide Rigging Latch upwards and re-pin Rigging Latch to hold into place within Rigging Channel 3. Lift to remove Distro Rack from Caster Pallet. Note: Store Caster Pallets in a standing position in a safe location Attaching Flybar to Distro Racks 1.

  • Page 25: Flybar Carabiner Kit

    ADAPTive System. Note: The images below are of the EAW ADAPTive Anna System and Flybar and carabiner mounting point. Consult the Flybar Diagram in the User Manual provided with your EAW ADAPTive System for the location of the corresponding point for your system.

  • Page 26: Ground Transportation

    Ground Transportation Anya Caster Pallet The Anya Caster Pallet is designed for transportation of up to 4 Anya modules. Anya modules attach to the Caster Pallet via quick release pins. 1. Lower the Anya module onto the Caster Pallet so that the stack pads line up with the bottom module.

  • Page 27: Anna Caster Pallet

    Anna Caster Pallet The Anna Caster Pallet is designed for transportation of up to 4 Anna modules. Anna modules attach to the Caster Pallet via quick release pins. 1. Lower the Anna module onto the Caster Pallet so that the stack pads on the Anna module line up with the recesses in the pallet.

  • Page 28: Otto Caster Pallet

    Otto Caster Pallet The Otto Caster Pallet is designed for transportation of up to 3 Otto modules. Otto modules attach to the Caster Pallet via quick release pins. 1. Lower the Otto module onto the Caster Pallet so that the stack pads on the Otto module line up with the recesses in the pallet.

  • Page 29: Service, Inspection & Maintenance

    We have attempted to make this manual and the Resolution Help File as thorough as possible. However, feel free to contact us with any further questions or comments for topics not covered. Operating Questions EAW Applications Support Group 508-234-6158 800-992-5013 (USA only) E-mail design@eaw.com...
  • Page 30 Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / +1 508 234 6158 www.eaw.com ©2019 Eastern Acoustic Works All rights reserved. Products are not drawn to scale. All terms, conditions, and specifications subject to change without notice.
