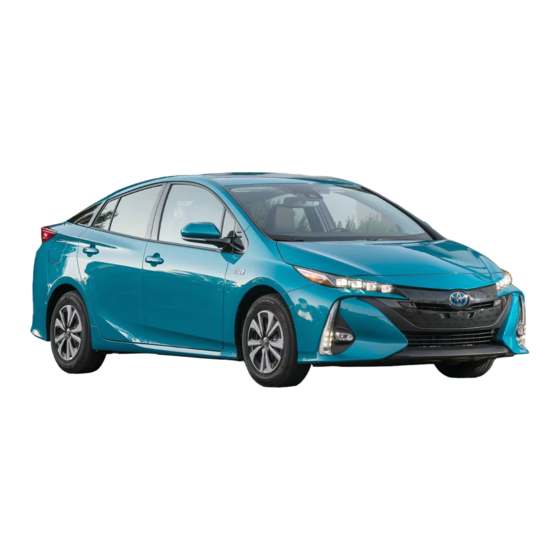

Toyota Prius Prime Quick Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Charging operation
1
Plug-in Hybrid Applications
2
Basic operation
3
Things you must know
4
The quick guide is not intended as a substitute for your "OWNER'S
MANUAL". We strongly encourage you to review the "OWNER'S MANUAL"
and supplementary manuals so you will have a better understanding of your
vehicle's capabilities and limitations.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.
PRIUS PRIME_QG_OM47C92U_(U)

Advertisement

loading

Related Manuals for Toyota Prius Prime

Summary of Contents for Toyota Prius Prime

  • Page 1 Charging operation Plug-in Hybrid Applications Basic operation Things you must know The quick guide is not intended as a substitute for your “OWNER’S MANUAL”. We strongly encourage you to review the “OWNER’S MANUAL” and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

  • Page 2: Charging Equipment

    1. Charging operation Charging equipment Charging equipment and names Charging inlet Hybrid battery (traction bat- tery) status indicator Charging inlet light Charging cable Charging port lid Charging port Charging indicator Charging connector lock switch : If equipped, refer to “OWNER’S MANUAL” PRIUS PRIME_QG_OM47C92U_(U)
  • Page 3 1. Charging operation The names of each part of the charging cable Charging connector Power indicator Latch release button Charging indicator Plug Error warning indicator Plug-cord CCID (Charging Circuit Inter- rupting Device) PRIUS PRIME_QG_OM47C92U_(U)
  • Page 4 1. Charging operation Safety functions ■ The CCID (Charging Circuit Interrupting Device) has the following safety features. ● Electrical leakage detection function If an electrical leakage is detected during charging, the power source will be automatically interrupted, thus preventing fires or electrical shocks caused by electrical leakage.
  • Page 5 1. Charging operation WARNING ■ Power sources precautions Observe the following precautions. If you do not follow them, fire, electrical shock or damage may occur, possi- bly resulting in death or serious injury. ● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit- Interrupter (GFCI) and supplied by a circuit breaker per your local code.
  • Page 6 1. Charging operation Opening and closing the charging port lid Opening the charging port lid ■ Vehicles without smart lid & connector locking system: Press the rear edge of the charging port lid (the position shown in the illustration). Push and take your hand away to slightly open the charging port lid.
  • Page 7 1. Charging operation Closing the charging port lid ■ Close the charging port lid and press the rear edge of the charging port lid (the position shown in the illustration). Vehicles with smart lid & con- nector locking system: • When the doors are locked with the smart key system, wireless remote control or door lock switch, the charging...
  • Page 8 1. Charging operation Hybrid battery (traction battery) status indicator When the charging cable is con- nected to the charging inlet, the user is informed of the charging status of the hybrid battery (trac- tion battery) by the statuses of 3 indicators (turned off, illuminated or flashing).

  • Page 9: How To Charge

    1. Charging operation How to charge Charging precautions This vehicle has been designed to allow charging from an external power source using a charging cable for exclusive use with standard household AC outlets. However, the vehicle differs greatly from standard household electri- cal goods in the following ways, and incorrect usage could cause fire or electric shock, possibly leading to death or serious injury.
  • Page 10 1. Charging operation Confirm the following before charging Before charging, always check the following items. ● The parking brake is applied. ● The headlights are switched off or set to AUTO, and lights such as the emergency flashers and interior lights etc. are switched off. If these light switches are turned ON, then these features will consume electricity, and charging time will increase.
  • Page 11 1. Charging operation When charging Prepare the charging cable. Insert the charging cable into the outlet of the external power source. Make sure to hold the body of the plug and insert it firmly into the out- let. Check that the power indicator on the CCID (Charging Circuit Inter- rupting Device) is illuminated.
  • Page 12 1. Charging operation Remove the protective cap of the charging connector and secure it to the cable. Insert the charging connector into the charging inlet. Align the guide position on the bot- tom of the charging connector, and push charging connector straight into the charging inlet as far as possible.
  • Page 13 1. Charging operation Vehicles with smart lid & con- nector locking system: When you wish to lock the charging connector, carry an electronic key and press the charging connector lock switch. The charging connector will be locked by the smart lid & connector locking system.
  • Page 14 1. Charging operation After charging Vehicles with smart lid & con- nector locking system: When the charging connector is locked, carry an electronic key and press the charging connec- tor lock switch. charging connector unlocked by the smart lid & con- nector locking system.
  • Page 15 1. Charging operation WARNING ■ When charging Observe the following precautions. Failure to do so may cause an unexpected accident, resulting in death or serious injury. ● Connect to a power source suitable for charging. ● Check that the charging inlet, charging cable, plug and outlet are free of foreign matter.
  • Page 16 The charging equipment is hot during charging. Do not touch the charging equipment, as doing so may result in burns. ● Do not disassemble, repair or modify the charging equipment. When the charging equipment needs to be repaired, consult your Toyota dealer. NOTICE ■...
  • Page 17 1. Charging operation NOTICE ■ After charging ● After disconnecting the charging connector from the charging inlet, make sure to put on the charging inlet cap and close the charging port lid. If the charging inlet cap is not put on, water or foreign objects may enter the charging inlet, which could lead to vehicle damage.
  • Page 18 1. Charging operation Using the charging timer function Charging timer function Charging can be carried out at the desired time by registering the charge schedule. When registering the charge schedule, the following settings can be changed. ● Select the charging mode (“Start”/“Departure”) ●...
  • Page 19 1. Charging operation Registering the charge schedule ■ Press the charging timer switch. The “Charge Schedule” screen will display on the multi-information dis- play. Press of the meter control switches to select “Scheduled Events”, and then press The “Scheduled Events” screen will display.
  • Page 20 1. Charging operation Changing the registered charge schedules ■ The registered charge schedules can be turned on, off, deleted or modified. Press the charging timer switch. The “Charge Schedule” screen will display on the multi-information dis- play. Press of the meter control switches to select “Scheduled Events”, and then press...
  • Page 21 1. Charging operation Setting operations on the 11.6-inch display (if equipped) Press the “MENU” button, then select “Info” and “Charge Schedule”. For details of “Charge Schedule” screen, refer to “OWNER’S MANUAL”. Registering the charge schedule ■ Display the “Charge Schedule” screen. Press “Add”.
  • Page 22 1. Charging operation Changing the registered charge schedules ■ Display the “Charge Schedule” screen. From the items displayed on the bottom of the screen, press “Edit” in the row of the charge schedule you wish to change. The settings screen will display on the bottom of the screen. It is also possible to display the settings screen by pressing the icon of the charge schedule you wish to change from those displayed on the calendar.

  • Page 23: Charging Tips

    1. Charging operation Charging tips Checking information related to charging Information related to charging can be displayed and checked on the multi-information display. For details on the screen display for the 11.6-inch display (if equipped), refer to “OWNER’S MANUAL”. While charging ■...
  • Page 24 The plug is not dirtied by dust etc. Remove the plug from the outlet before inspecting it. If any abnormalities are found in the charging cable as a result of the inspection, immediately stop use and consult your Toyota dealer. ■ Maintaining the charging cable When the charging cable is dirty, first remove the dirt with a hard, wringed cloth, and then wipe the cable with a dry cloth.

  • Page 25: Plug-In Hybrid Applications

    ● Download of nearby charging stations to the map screen (Type A) ● View list of nearby charging stations and corresponding charging station information (such as voltage supported) (Type B) For details about the function, refer to http://www.toyota.com/entune/. PRIUS PRIME_QG_OM47C92U_(U)

  • Page 26: Basic Operation

    3. Basic operation Basic operation How to operate the Remote Air Conditioning System Before leaving the vehicle ■ Check the temperature setting of the air conditioning system. The Remote Air Conditioning System will operate in accordance with the temperature settings of the air conditioning system. Activating the Remote Air Conditioning System ■...
  • Page 27 3. Basic operation How to operate unlocking and locking the doors Carry the electronic key to enable these functions. Front door handles ■ Grip the driver’s door handle to unlock the door. Holding the driver’s door handle for approximately seconds unlocks all the doors.
  • Page 28 3. Basic operation How to operate the power (ignition) switch Starting the hybrid system ■ Check that the charging cable is disconnected. Check that the parking brake is set. Firmly depress the brake pedal. and a message will be displayed on the multi-informa- tion display.
  • Page 29 3. Basic operation Stopping the hybrid system ■ Stop the vehicle completely. Set the parking brake. Shift the shift position to P. Check that the shift position indi- cator shows P. Press the power switch. The hybrid system will stop. Slowly release the brake pedal and check that the display on the instrument cluster is off.
  • Page 30 3. Basic operation Shift lever operation Starting procedure ■ When the “READY” indicator comes on, shift the shift posi- tion to D or R and release it with brake pedal depressed. The D or R posi- tion is selected and the lever returns to its home position.
  • Page 31 3. Basic operation Shift the shift position to P. Check that the P position is highlighted on the shift posi- tion indicator, and release the brake pedal gently after applying the parking brake. ■ About engine braking When shift position B is selected, releasing the accelerator pedal will apply engine braking.
  • Page 32 3. Basic operation How to operate the wipers and washers Operating the lever operates the wipers or washer as follows. Intermittent windshield wipers with interval adjuster (if ■ equipped) Type A  Intermittent operation Low speed operation High speed operation Temporary operation Type B ...
  • Page 33 3. Basic operation Wiper intervals can be adjusted when intermittent operation is selected. Increases intermittent windshield wiper frequency Decreases the intermittent windshield wiper frequency Washer/wiper dual operation Pulling the lever operates the wipers and washer. The wipers will automatically operate a couple of times after the washer squirts.
  • Page 34 3. Basic operation Rain-sensing windshield wipers (if equipped) ■ Type A  Rain-sensing opera- tion Low speed operation High speed operation Temporary operation Type B  Rain-sensing operation Low speed operation High speed operation Temporary operation When is selected, the wipers will operate automatically when the sensor detects falling rain.
  • Page 35 3. Basic operation The sensor sensitivity can be adjusted when is selected. Increases the sensitivity Decreases the sensitivity Washer/wiper dual operation Pulling the lever operates the wipers and washer. The wipers will automatically operate a couple of times after the washer squirts. PRIUS PRIME_QG_OM47C92U_(U)
  • Page 36 3. Basic operation Dynamic radar cruise control operation (vehicle-to-vehicle dis- tance control mode) Set the vehicle speed ■ Press the “ON-OFF” button to activate the cruise control. Radar cruise control indicator will come on and a message will be displayed on the multi-infor- mation display.
  • Page 37 3. Basic operation Canceling and resuming the speed control ■ Pulling the lever toward you cancels the speed control. The speed control is also can- celed when the brake pedal is depressed. (When the vehicle has been stopped system control, depressing the brake pedal does not cancel the setting.) Pushing the lever up resumes the cruise control and returns...

  • Page 38: Things You Must Know

    4. Things you must know Things you must know ■ Regenerative braking In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery). ●...
  • Page 39 Do not carry large amounts of water such as water cooler bottles in the vehicle. If water spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Toyota dealer. ● A filter is installed to the air intake vent. When the filter remains noticeably dirty even after cleaning the air intake vent, filter cleaning or replacement is recommended.
  • Page 40 Do not allow water or foreign matter to enter the air intake vents ● Do not spill large amounts of water near the air intake vents If water is spilled, have the vehicle inspected by your Toyota dealer and do not charge the hybrid battery (traction battery) before the inspection. ■...
