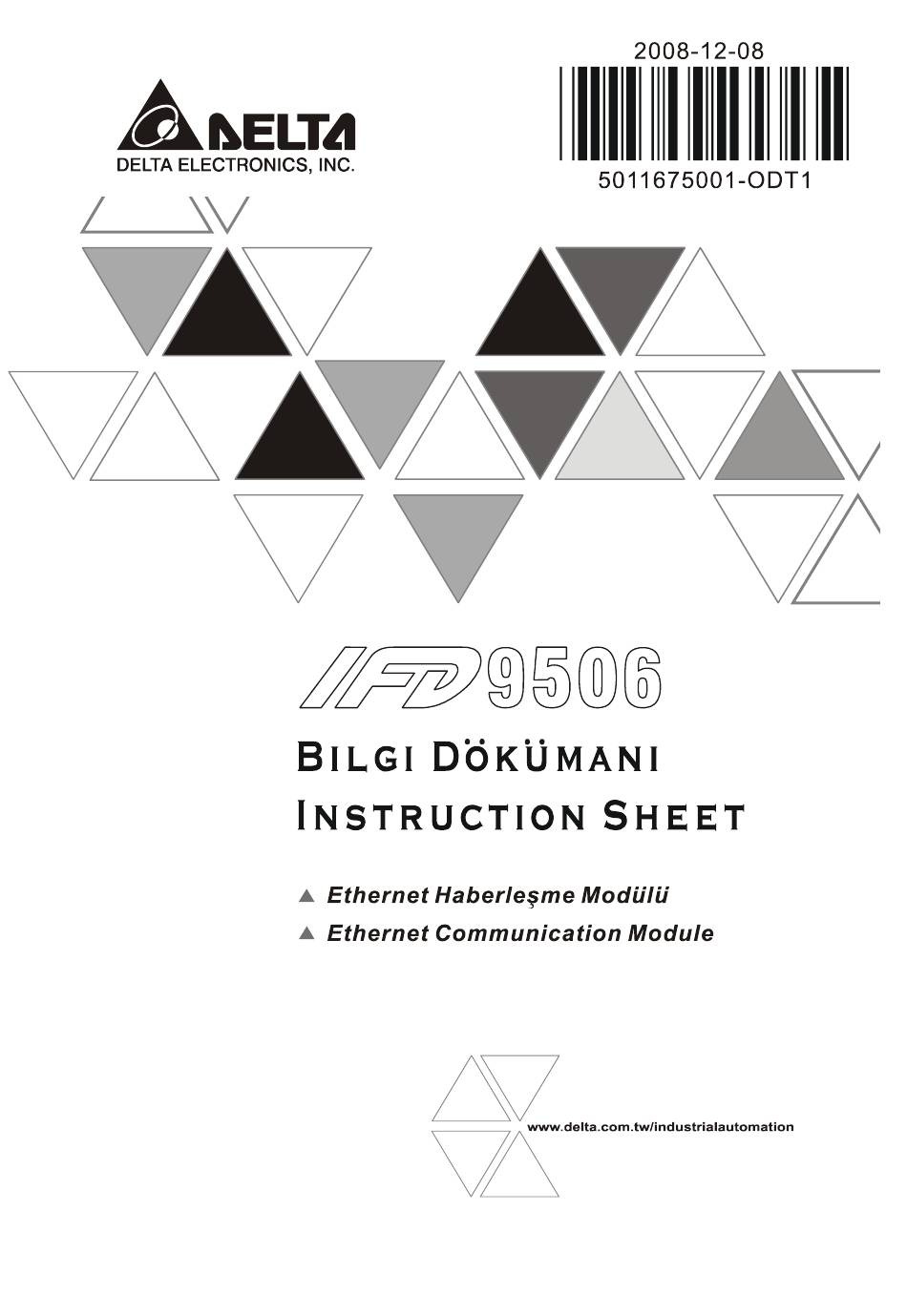

Delta Electronics IFD9506 Instruction Sheet

Ethernet communication module
Hide thumbs Also See for IFD9506:

Advertisement

Available languages

Available languages

Advertisement

Table of Contents
loading

Summary of Contents for Delta Electronics IFD9506

  • Page 2 Bu bilgi dökümanı sadece ürünün tanıtımı, elektrik özellikleri, kurulumu ve bağlantısını içerir. Bağlantı yapmadan önce enerjiyi kesiniz. Enerji varken herhangi bir terminale dokunmayınız. IFD9506 ünitesi AÇIK-TĐP bir ünite olup toz, rutubet, elektrik şoku ve titreşiminden uzak yerlere kurulmalıdır. Ayrıca cihaza yetkili olmayan kişiler tarafından müdahale edilmesini engelleyecek koruyucu önlemler alınmalıdır.
  • Page 3: Elektrik Özellikleri

    RS-485 Konnektör Arabirim RJ-11 Đletişim metodu RS-485 Đletişim hızı 110, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 Haberleşme formatı Stop bit: 1,2 Parity bit: None, Odd, Even Data bit: 7,8 ASCII/RTU Haberleşme protokolü Modbus, Kullanıcı Tanımlı RS-232 Konnektör Arabirim Mini Dim...
  • Page 4 Kurulum Ölçüler Birim: mm Adres Anahtarı Switch ayarı Đçeriği 00 … F7 Geçerli Modbus haberleşme adresi Data Format Anahtarı Switch ayarı Format Switch ayarı Format 7-N-1 7-N-2 8-N-1 8-N-2 7-O-1 7-O-2 8-O-1 8-O-2 7-E-1 7-E-2 8-E-1 8-E-2 Baud Rate Anahtarı Switch ayarı...
  • Page 5 RJ-11 PIN Açıklaması Sinyal Açıklama Data için pozitif kutup Data için negatif kutup Toprak RJ-45 PIN Açıklaması Sinyal Açıklama Data gönderimi için pozitif kutup Data gönderimi için negatif kutup Data alımı için pozitif kutup Data alımı için negatif kutup RS-232 PIN Açıklaması Sinyal Açıklama Data Alma...
  • Page 6: Power Led

    LED Đndikatörler & Arıza-Teşhis IFD9506 üzerinde 3 LED indikatör ve bir dijital display vardır. POWER indikatör çalışmayı gösterir. RS-485 ve LINK/ACT indikatörleri haberleşmenin bağlantı durumunu gösterir. Dijital display IFD9506 içindeki hata adreslerini ve hata mesajlarını gösterir. POWER LED LED durumu Gösterge...
  • Page 7 Modbus komutlarının doğru olduğunu kontrol ediniz. Yanlış adres Modbus komutlarının doğru olduğunu kontrol ediniz. Yanlış Data Modbus komutlarının doğru olduğunu kontrol ediniz. 1. IFD9506 ve RS-485 bağlantısının doğruluğunu kontrol ediniz. Slave hatası 2. Đletişim hızının diğer nod lar ile uyumlu olduğunu kontrol ediniz.
  • Page 8 MEMO...
  • Page 10: Product Profile & Outline

    Switch off the power before wiring. DO NOT touch any terminal when the power is switched on. IFD9506 is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust, humidity, electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the device (e.g. key or specific tools are required to open the enclosure) in case danger and damage on the device may occur.
  • Page 11: Terminal Block

    RS-485 Connector Interface RJ-11 Transmission method RS-485 110, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, Transmission speed 115,200 Communication format Stop bit: 1,2 Parity bit: None, Odd, Even Data bit: 7,8 ASCII/RTU Communication protocol Modbus, User Define RS-232 Connector Interface Mini Dim...
  • Page 12: Installation

    Installation Dimension Unit: mm Address Switch Switch setting Content 00 … F7 Valid Modbus communication address Data Format Switch Switch setting Format Switch setting Format 7-N-1 7-N-2 8-N-1 8-N-2 7-O-1 7-O-2 8-O-1 8-O-2 7-E-1 7-E-2 8-E-1 8-E-2 Baud Rate Switch Switch setting Baud rate (bps) Switch setting...
  • Page 13: Rs-232 Pin Definition

    RJ-11 PIN Definition Signal Definition Positive pole for data Negative pole for data Ground RJ-45 PIN Definition Signal Definition Positive pole for data transmission Negative pole for data transmission Positive pole for data receiving Negative pole for data receiving RS-232 PIN Definition Signal Definition Reception data...
  • Page 14 LED Indicators & Trouble-Shooting There are 3 LED indicators and a digital display on IFD9506. POWER indicator displays the status of the working power. RS-485 and LINK/ACT indicators display the connection status of the communication. The digital display shows the address of and errors in IFD9506 and the error messages from the slave.
  • Page 15 Check if the Modbus instruction is correct. Incorrect data Check if the Modbus instruction is correct. 1. Check if IFD9506 and RS-485 is connected normally. Slave error 2. Check if the series transmission speed is consistent with that of other nodes on the network.
  • Page 16 MEMO...
