Delta Electronics Network Device IFD9506 Instruction Sheet

Warning
This instruction sheet only provides introductory information on electrical specification, installation and wiring.
Switch off the power before wiring. DO NOT touch any terminal when the power is switched on.
IFD9506 is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust, humidity,
electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the device (e.g. key
or specific tools are required to open the enclosure) in case danger and damage on the device may occur.
Introduction
Features
1. Auto-detects 10/100 Mbps transmission speed; MDI/MDI-X auto-detection.
2. The monitor table temporarily stores the monitored data for the user to fast save or acquire the data.
3. Supports Modbus TCP protocol (supports Master and Slave mode)
4. Able to send out emails after being triggered.
5. The station address, RS-485 communication format and baud rate can be set up externally.
6. The communication parameters can be set up through Web.

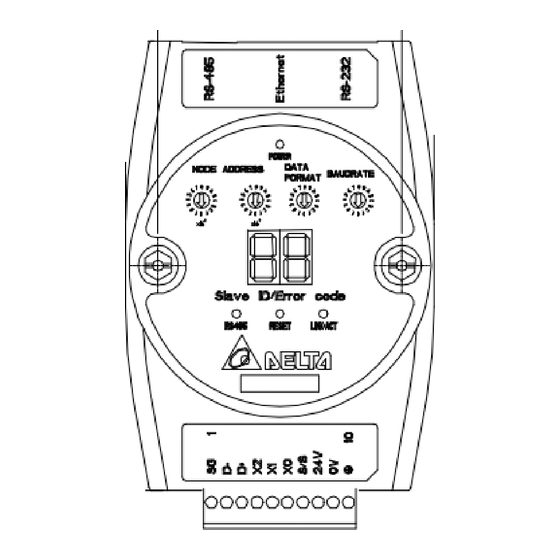

Product Profile & Outline
Communication ports: RS-485,
1
Ethernet, RS-232
2 Power indicator
3 Address switch
4 Data format/baud rate switch
5 Digit display
RS-485 indicator, Reset button,
6
Ethernet indicator
7 Module name
RS-485 connector, digital input points,
8
power input point, earth point
9
9 DIN rail connector
Specifications
Ethernet Interface
Interface RJ-45 with Auto MDI/MDIX
Transmission method Ethernet Type II
Transmission cable Category 5e, 100m (Max)
Transmission speed 10/100 Mbps Auto-Detection
ICMP, IP, TCP, UDP, DHCP, SMTP, MODBUS OVER TCP/IP, Delta
Network protocol
Configuration
RS-485 Connector
Interface RJ-11
Transmission method RS-485
Transmission speed 110, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200
Communication format Stop bit: 1,2 Parity bit: None, Odd, Even
Communication
Modbus, User Define
protocol
RS-232 Connector
Interface Mini Dim
Transmission method RS-232
Transmission speed 110, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200
Communication format Stop bit: 1,2 Parity bit: None, Odd, Even
Communication
Modbus, Delta Configuration, User Define
protocol
Transmission cable DVPACAB215 / DVPACAB230 / DVPACAB2A30
Terminal Block
Interface Feed-through terminal 10PIN
Transmission method RS-485
Transmission distance 1,200m
Transmission speed 110, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200
Communication format Stop bit: 1,2 Parity bit: None, Odd, Even
Communication
Modbus, User Define
protocol
Electrical Specifications
Power voltage 24V DC (-15% ~ 20%) supplied by feed-through terminal
Power consumption 3W
Insulation voltage 500V
Weight 140g
Environment
ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line:±2KV, Digital Input: ±2KV,
Communication I/O: ±2KV
RS (IEC 61131-2, IEC 61000-4-3): 80MHz ~ 1GHz, 10V/m. 1.4GHz ~ 2.0GHz,
Noise immunity 10V/m
Conducted Susceptibility Test (EN61000-4-6, IEC61131-2 9.10): 150KHz ~
80MHz, 3V/m
Surge Test (Biwave IEC61132-2, IEC61000-4-5):
Power line 0.5KV DM, Ethernet 0.5KV CM, RS-485 0.5KV CM
Operation: 0ºC ~ 55ºC (temperature), 50 ~ 95% (humidity), pollution degree 2
Operation/storage
Storage: -25ºC ~ 70ºC (temperature), 5 ~ 95% (humidity)
Vibration/shock International standards: IEC61131-2, IEC68-2-6 (TEST Fc)/IEC61131-2 & IEC
immunity 68-2-27(TEST Ea)
Certificates
Installation
ENGLISH
Dimension
Unit: mm
Address Switch
Switch setting Content
01 ... F7 Valid Modbus communication address
Data Format Switch
Switch setting Format Switch setting Format
0 7-N-1 8 7-N-2
1 8-N-1 9 8-N-2
2 7-O-1 A 7-O-2
3 8-O-1 B 8-O-2
6 7-E-1 E 7-E-2
7 8-E-1 F 8-E-2
Baud Rate Switch
Switch setting Baud rate (bps) Switch setting Baud rate (bps)
1 110 7 4,800
2 150 8 9,600
3 300 9 19,200
4 600 A 38,400
5 1,200 B 57,600
6 2,400 C 115,200
RJ-11 PIN Definition
PIN Signal Definition
1 -- N/C
2 -- N/C
Data bit: 7,8 ASCII/RTU
3 D+ Positive pole for data
RJ-45 PIN Definition
PIN Signal Definition
Positive pole for data
1 Tx+
transmission
Negative pole for data
2 Tx-
transmission
Data bit: 7,8 ASCII/RTU
Positive pole for data
3 Rx+
receiving
4 -- N/C
RS-232 PIN Definition
PIN Signal Definition
1 -- N/C
2 -- N/C
3 -- N/C
4 Rx Reception data
Data bit: 7,8 ASCII/RTU
Feed-through Terminal PIN Definition
PIN Signal Definition
1 SG Ground of signal
2 D-
3 D+
4 X2 Digital input 2
5 X1 Digital input 1
6 X0 Digital input 0
7 S/S Ground of digital input
8 24V
9 0V
10 -- Earth ground
LED Indicators & Trouble-Shooting
There are 3 LED indicators and a digital display on IFD9506. POWER indicator displays the status of the
working power. RS-485 and LINK/ACT indicators display the connection status of the communication. The
digital display shows the address of and errors in IFD9506 and the error messages from the slave.
POWER LED
LED status Indication
OFF Working power is abnormal
Green light ON Working power is normal
RS-485 LED
LED status Indication
No communication or RS-485
OFF
connection is abnormal.
Constantly ON Abnormal RS-485 connection
Green light
RS-485 connection is normal.
flashes
LINK/ACT LED
LED status Indication
No power, or no network
OFF
connection
The connection is normal, but no
Green light ON
data transmission.
Green light
The data transmission is normal. --
flashes
Codes in Digital Display
Code Indication
The node address of IFD9506 when
01 ~ F7
in normal operation
F0 Returning to default setting
F1 IFD9506 is booting
F2 Working power in low voltage
F3 Internal memory error
Internal error caused by
F4
manufacturing in the factory
F5 Network connection error
Full number of devices connected in
F6
the network
F7 UART setting error.
E1 Alarm 1 triggered
E2 Alarm 2 triggered
E3 Alarm 3 triggered
01 Incorrect MODBUS function
02 Incorrect address
03 Incorrect data
04 CRC error
0B No response from the station
