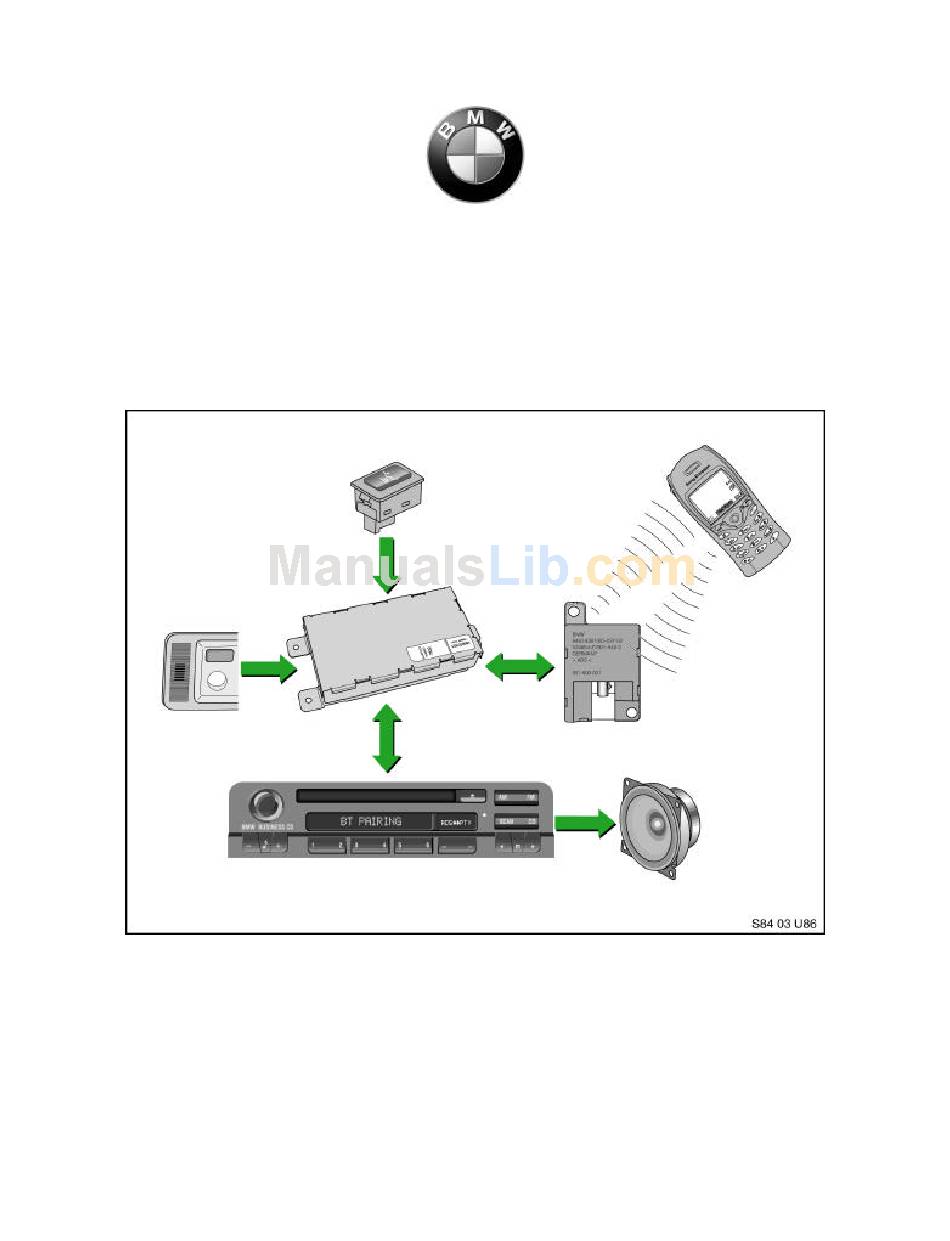

- Page 1 BMW Universal Bluetooth Hands-Free System (ULF) Owner’s Manual P/N 84 11 0 302 638 6/5/03...
- Page 2 Dear BMW Owner: Congratulations on your purchase of the BMW Universal Bluetooth Hands-Free System (ULF) for your BMW Group vehicle and for you! The BMW Universal Bluetooth Hands-Free System will provide an additional convenience feature for you and your passengers.
-
Page 3: Table Of Contents
Universal Bluetooth Hands-Free System (ULF) Contents Introduction What is Bluetooth Communication/Security Data and Voice Bluetooth Enabled Phones Advantages of the ULF System System Overview ULF Control Module Oddment Tray Pairing Button Bluetooth Antenna System Operation Initial Operation Pairing Procedure System Functions Indicator Lamps Adopting Telephone Book Placing A Call... -
Page 4: Introduction
The ULF Control Module forms an interface that allows a mobile phone with the embedded Bluetooth wireless technology feature to be wirelessly integrated into the vehicle. For the first time BMW is introducing a new generation hands-free telephone system kit that provides the customer with the option of using various Bluetooth enabled mobile phones (a list of recommended phones is available from your BMW Center). -
Page 5: Communication/Security
Ideally all phones that are Bluetooth system, however not all phones utilize the same profiles and therefore may not be recognized by the ULF System. A list of recommended Bluetooth phones is available from your BMW Center. technology, communication enabled should work with the ULF... -
Page 6: Advantages Of The Ulf System
Universal Bluetooth Hands-Free System (ULF) Advantages of the ULF System Once a phone is paired to the system it will be able to automatically connect to the Bluetooth wireless network of the vehicle, the next time it is introduced into the vehicle and the vehicle ignition is on. Up to four different Bluetooth time, although only one phone can be wirelessly connected at any time. -
Page 7: Oddment Tray
Universal Bluetooth Hands-Free System (ULF) be activated, paired and present within the vehicle network in order to place or receive a call in the vehicle. Oddment Tray The oddment tray, which is connected to the ULF control module via the vehicles wiring harness, serves the purpose of: Housing the send/receive to activate the pairing procedure between the phone and the control module. -
Page 8: System Operation
Universal Bluetooth Hands-Free System (ULF) System Operation Initial operation Prior to using the system for the first time, the Bluetooth to be used must be paired with the ULF control module. This pairing procedure is necessary in order to assign the digital code of the mobile phone to the ULF control module installed in the vehicle. - Page 9 Universal Bluetooth Hands-Free System (ULF) 3. Shortly after releasing the button on the Radio or Display Screen, the following message should be displayed: Note: The send/receive (pairing) button in 5 Series and X5 SAV is located on the oddment tray assembly in the center console.
- Page 10 Next select a menu option that will allow you to “Discover” or “Search” for active Bluetooth devices. If the phone identifies/finds a device (named “BMW” followed by 5 digits) select it and follow the indicated steps to complete the pairing process. Once the phone is successfully paired to the device cycle the vehicle ignition switch off and back on and the devices should wirelessly connect within 30 seconds.
- Page 11 11. Enter the password (= ULF passkey) located on ULF Control Module that is in the rear of the vehicle or on the Passkey Reference Card. Mobile phone display shows ‘BMW …… Pairing’ Mobile phone display shows ‘Pairing Successful’ Display screen shows ‘Pairing succeeded’ for 3 seconds 12.
-
Page 12: System Functions
Universal Bluetooth Hands-Free System (ULF) System Functions The mobile phone must always be activated, paired and present within the Bluetooth network in order to place or receive a call through the vehicle. Indicator lamps The indicator lamps show the following: Adopting Telephone Book Depending on the type of Bluetooth either transferred automatically (ex. -
Page 13: Receiving/Accepting A Call
Universal Bluetooth Hands-Free System (ULF) Depressing the R/T button on the steering wheel, then scrolling (using the é or ê buttons) through the address book of the phone that is linked to the ULF, until the desired number is displayed on the radio or display screen and then depressing the send/receive center console to place the call. -
Page 14: Conducting A Call
Universal Bluetooth Hands-Free System (ULF) Press send/receive Press send/receive Select the green phone symbol on the Display Screen. Press send/receive key on mobile phone Conducting a Call If the call is accepted by pressing the send/receive key series and X5 SAV), Display Screen, steering wheel or center console, it will be conducted via the hands free microphone and vehicle speakers. -
Page 15: Ending A Call
Universal Bluetooth Hands-Free System (ULF) Ending a Call The following options are available for ending a call: 3 Series without Display Screen: Press send/receive Press send/receive Press send/receive key on mobile phone 5 Series and X5 SAV without Display Screen: Press send/receive Press send/receive key on radio Press send/receive... -
Page 16: Linking Several Bluetooth Tm Mobile Phones
Universal Bluetooth Hands-Free System (ULF) the connections menu or selecting a transfer function in the settings menu of the phone (refer to the user’s manual of the phone for more information). Linking Several Bluetooth Up to four Bluetooth mobile phones can be paired one after the other to the ULF control module.
