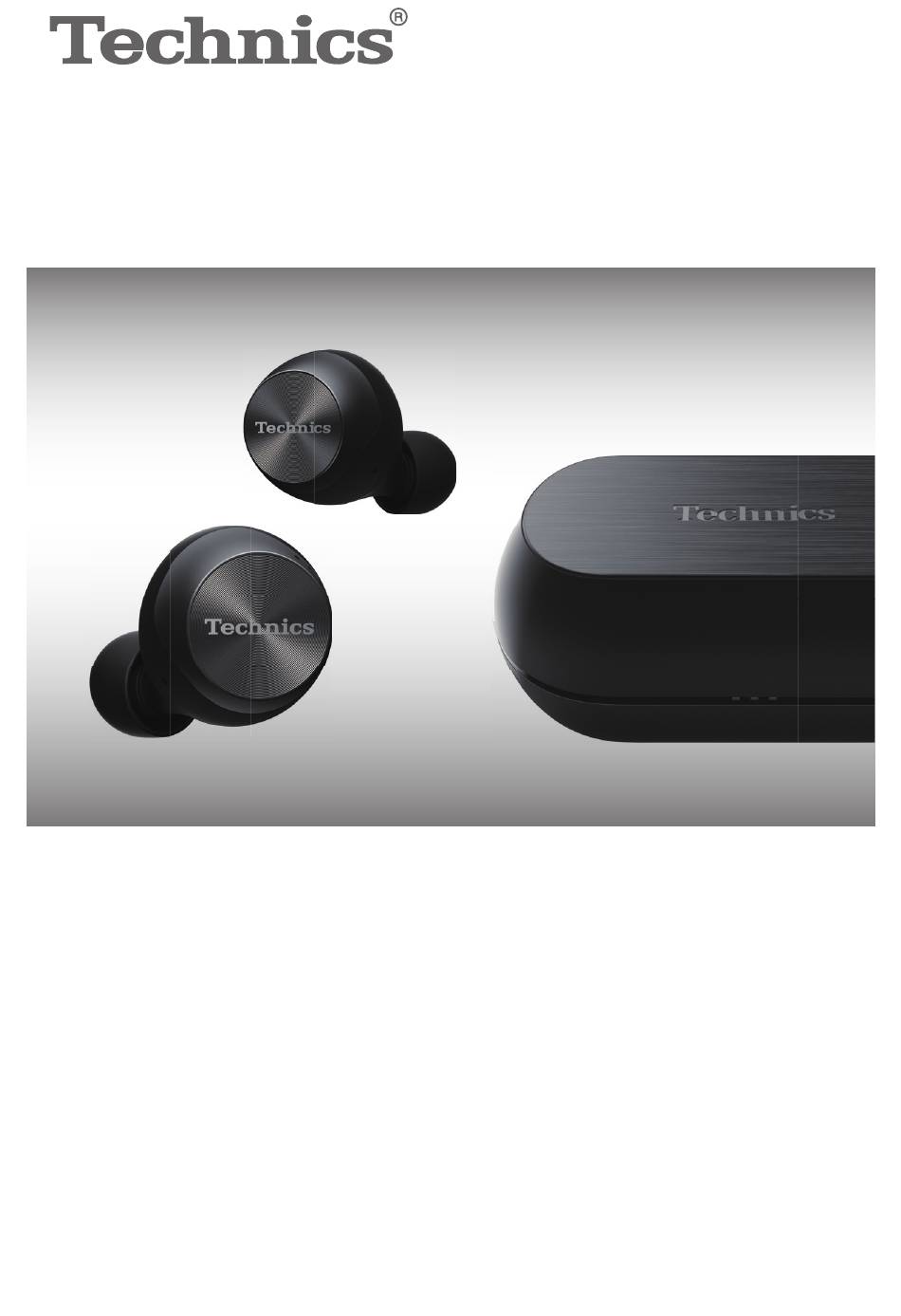

- Page 1 EAH-AZ70W Digital Wireless Stereo Earphones Owner’s Manual...
-
Page 2: Important Safety Instructions
Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. Register online at http://shop.panasonic.com/support (U.S. customers only) If you have any questions, visit: In the U.S.A.: http://shop.panasonic.com/support In Canada: www.panasonic.ca/english/support IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. -
Page 3: Safety Precautions
(RF) Exposure Guidelines as this equipment has very low levels of RF energy. (For Canada only) EAH-AZ70W has been tested and found to comply with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. - Page 4 ∫ Unit WARNING: To reduce the risk of fire, electric shock or product damage, • Do not expose this unit to rain, moisture, dripping or splashing. • Do not place objects filled with liquids, such as vases, on this unit. •...
-
Page 5: About Bluetooth
This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone. Use only the supplied USB charging cord when connecting to a computer. The symbols on this product (including the accessories) represent the following: Conforms to UL STD 62368-1. -
Page 6: Table Of Contents
Making a phone call ..........................19 Using the external sound control....................... 20 Useful functions............................21 • Using the app “Technics Audio Connect” ................... 21 • Activating voice functions ........................21 • Using just one earphone ........................21 Operating with the touch sensors......................22 Other Restoring to the factory settings........................ -
Page 7: Before Use
Before use Expressions used in this document • Pages to be referred to are indicated as “ ±±”. • The product illustrations may differ from the actual product. Accessories Please check and identify the supplied accessories. To order accessories, contact the dealer from whom you have made your purchase. 1 x USB charging cord 1 x Earpieces set (2 each of sizes XS, S, M, L, and XL) (M size fitted to the earphones) Only for U.S.A.:... -
Page 8: (Important) About Water Resistance
Before use (Important) About water resistance Specifications for this unit are equivalent of IPX4 of IEC 60529, the protection level of electronic device enclosures that protects from splashes, and is not designed to be totally waterproof. ∫ About IPX4 (liquid ingress protection level against splashing water) This unit is compatible to operate after splashing from nozzles approximately 1.8 L/min (0.5 gal/min) of room temperature tap water from every direction approximately 20 cm (8 in) from this unit for 10 minutes. -
Page 9: How To Fit The Earphones
Before use How to fit the earphones Fit the earphones correctly in order to get adequate noise cancelling effect and acoustics. Select and fit the special earpieces that suit the sizes of your ears, left and right. How to fit the earphones Check the orientation (up (a), down) and L (left) and R (right) of the earphones. -
Page 10: Part Names
Before use Part names Main unit (earphones) (Earphones hereafter in the instructions) a L side earphone (left) b R side earphone (right) Touch sensor (L) (left) Microphone for noise cancelling *1, 3 Touch sensor (R) (right) Earphone LEDs •... - Page 11 Before use Main unit (charging cradle) (Charging cradle hereafter in the instructions) Rear Open the lid. 10 Charging cradle lid 14 Charging cradle LEDs* 11 Certification information label 15 Charging terminal • The model number is shown on the certification •...
-
Page 12: Preparation
Preparation Charging The chargeable battery (installed in the unit) is not charged initially. Charge the battery before using the unit. • Proper charging is not possible if there is dust or droplets of water on the terminal sections of the earphones or charging cradle. -
Page 13: Charging The Earphones With The Charging Cradle
Preparation Confirm that the earphone LEDs (red) have illuminated (charging starts). • The earphone LEDs light (red) while the earphones are charging. Charging is complete when they turn off. • Charging time ( 26, “Specifications”) Note • Do not use any other USB charging cords except the supplied one. Doing so may cause malfunction. •... -
Page 14: Turning The Earphones On And Off
Preparation Turning the earphones on and off ∫ To turn the earphones on Take the earphones out of the charging cradle. • The earphones turn on. A beep will sound and the earphone LEDs blink (blue)* slowly. * The batteries are low when they are blinking in red. ∫... -
Page 15: Using The App "Technics Audio Connect
• Follow the on-screen instructions to operate. Note • Always use the latest version of the “Technics Audio Connect” app. • There may sometimes be changes made to the operating procedures, displays, etc., on the “Technics Audio Connect” app. Refer to the support site for details. -
Page 16: Connecting A Bluetooth ® Device
1 m (3.3 ft) from the unit. • Check the device operation using its operation instructions as required. ® • Using the “Technics Audio Connect” app (free of charge) makes connecting with Bluetooth simple. ( ® Connecting by pairing (registering) your earphones with a Bluetooth device Take both earphones (L and R) out of the charging cradle. -
Page 17: Connecting A Paired Bluetooth ® Device
Preparation ® Connecting a paired Bluetooth device Take the earphones out of the charging cradle. • The earphone LEDs light (blue) and the earphones turn on about 3 seconds later. A beep will sound, and the earphone LEDs (blue)* will blink slowly. * The batteries are low when they are blinking in red. -
Page 18: Operation
Operation Listening to music ® ® If the Bluetooth compatible device supports the “A2DP” and “AVRCP” Bluetooth profiles, music can be played back with remote control operations on the unit. • A2DP (Advanced Audio Distribution Profile): Transmits audio to the unit. •... -
Page 19: Making A Phone Call
Operation Making a phone call ® ® With Bluetooth enabled phones (cell phones or smartphones) that support the “HSP” or “HFP” Bluetooth profile, you can use the unit for phone calls. • HSP (Headset Profile): This profile can be used to receive monaural sounds and establish two-way communication using the microphone on the unit. -
Page 20: Using The External Sound Control
Operation Using the external sound control The external sound control function switches between noise cancelling, ambient sound and off. The sound quality is set so that it is optimized for each mode. While wearing the earphones, touch and hold the touch sensor (R) for about 2 seconds. •... -
Page 21: Useful Functions
® By creating a Bluetooth connection with a smartphone installed with the “Technics Audio Connect” app (free of charge), you can enjoy a wide variety of features, such as changing the settings on the earphones. (l 15) Activating voice functions You can use a touch sensor on the earphone to activate the voice functions (Amazon Alexa, Siri etc.) on your... -
Page 22: Operating With The Touch Sensors
Operation Operating with the touch sensors ® You can operate the touch sensors on the earphones to change to the Bluetooth pairing mode, or remote ® control the Bluetooth device. ® • Depending on the Bluetooth device or the app, even if you operate the touch sensors on the earphones, some functions may not respond or may operate differently from the descriptions below. -
Page 23: Other
Do the same Steps 1 to 3 above for the L side earphone. Note ® • To re-pair the earphones with a Bluetooth device, delete the registered information (device name: EAH-AZ70W) on ® the device, then pair the earphones with the Bluetooth device again. ( Copyright, etc. -
Page 24: Troubleshooting
Other Troubleshooting Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to “Customer Services Directory” if you reside in the U.S.A., or refer to “CONTACT INFORMATION”... -
Page 25: General
Other General Cannot operate the earphones. • Try turning the power off and on. ( The left and right batteries deplete at different rates. • There may be some difference between left and right due to signal and usage conditions. Amazon Alexa is not responding. -
Page 26: Specifications
Other Specifications ∫ General Power supply DC 5 V, 500 mA (Charging cradle) Internal Battery Earphones: 3.7 V, Lithium polymer 85 mAh Charging cradle: 3.7 V, Lithium polymer 800 mAh Operating time Approx. 6.5 hours (Noise cancelling: ON, AAC) (Earphones) Approx. - Page 27 Other ® ∫ Bluetooth section ® Bluetooth system specification Ver. 5.0 Wireless equipment classification Class 1 Max RF Power 11 dBm Frequency band 2402 MHz to 2480 MHz Supported profiles A2DP, AVRCP, HSP, HFP Supported codec SBC, AAC Operating distance Up to 10 m (33 ft) ∫...
-
Page 28: When Disposing Of The Product
Other When disposing of the product The built-in batteries are a valuable recyclable resource. When disposing of this unit, rather than disposing of in general waste (non-combustible garbage), follow the local national laws and take to the appropriate collection point. Contact your local government organization if you are unsure of your local collection point. Refer to the specifications in this document for information about the batteries. -
