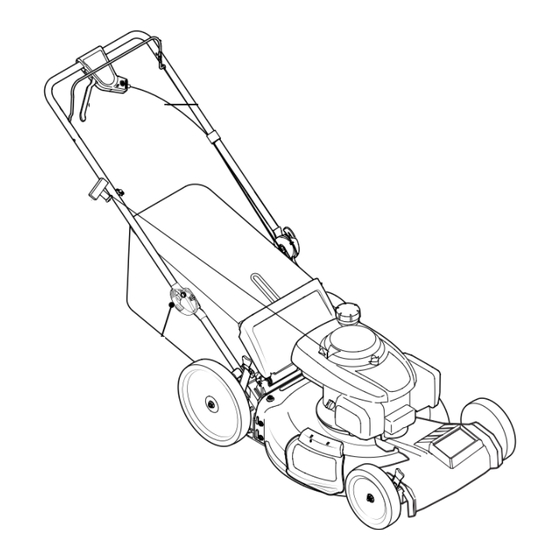

Craftsman 12 VB2AQ Series Fast Start Manual

A. Place the EZ-Fold handle release levers to
1
the unlocked position.
A
A
B. Pivot the handle into operating position. Be
careful not to crimp cables.
2
A. Ensure the position indicator aligns
with one of three handle positions (a).
B. Place the EZ-Fold handle release levers
to the locked position.
(a)
© 2018 12XVB2AQXXX CRAFTSMAN and the CRAFTSMAN logo are trademarks of Stanley Black & Decker, Inc. or an affiliate thereof and are used under license.
IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL THOROUGHLY
and FOLLOW THE important SAFE OPERATION PRACTICES BEFORE OPERATING.
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.
B
Starter
Rope Handle
EZ-Fold
Handle release
Lever
Fast Start Guide - Engine Start
Blade Control
Drive Control
EZ-Fold
Handle release
Lever
A. Remove T-bolts from the handle brackets.
A
B. Pull upward on the
handle until the holes
in lower handle line
up with the holes in
the handle bracket.
C. Insert the T-bolts
removed in Step 3A
through the handle
brackets to secure
the handle in place.
A
B
C
A. Hold the blade control handle against
the upper handle.
B. Slowly pull starter rope handle from engine and
slip starter rope into the rope guide.
C. Tighten rope guide wing knob.
D. Use cable ties to secure cables to lower handle.
Need Help?
www.CRAFTSMAN.com or Call 1-888-331-4569
3
B
4
D
778-16200A
