ADA SERIES
Wire Shelf Removal/Installation
Reposition the shelves as follows:

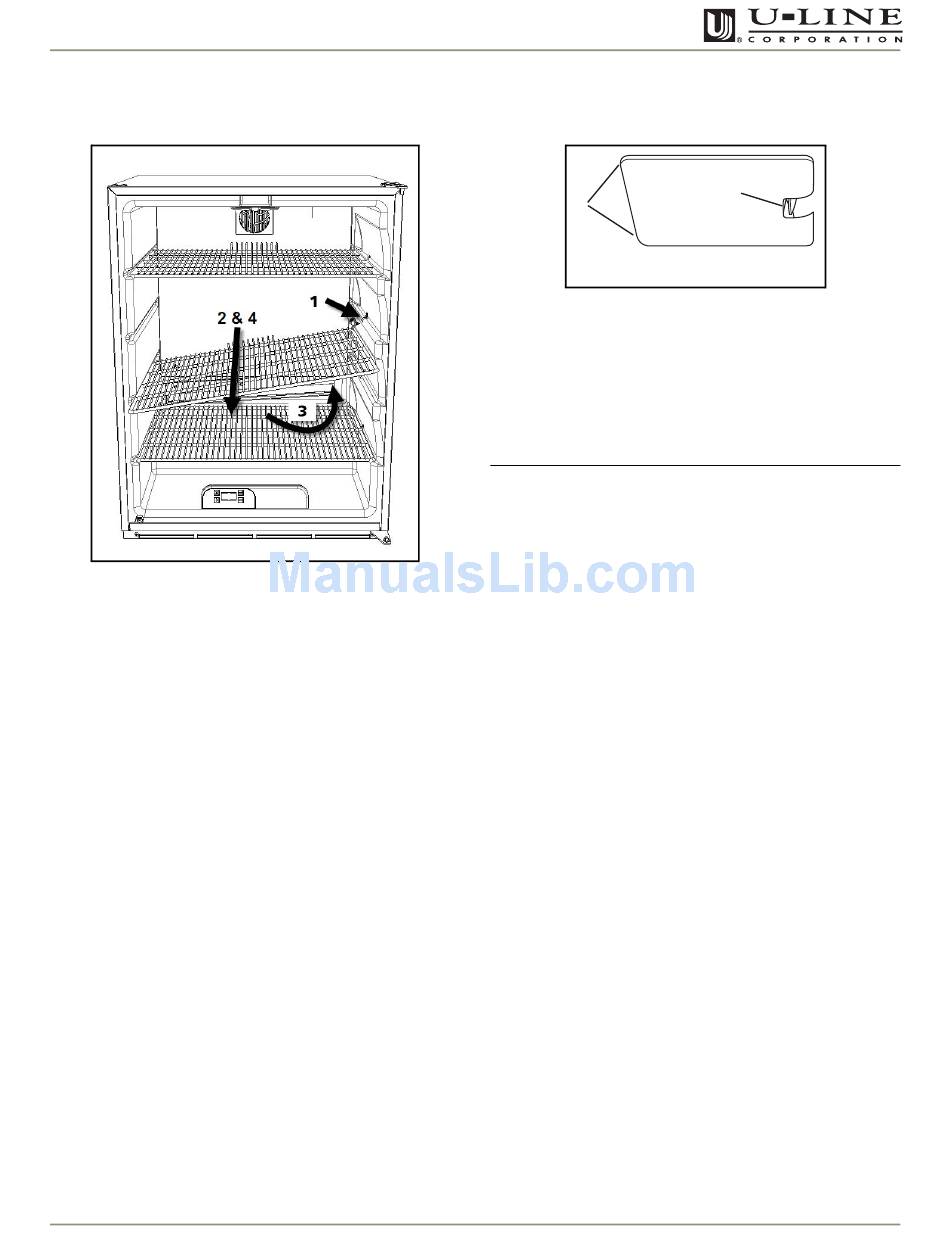

Figure 10
1. Remove shelf retention clip.
2. Pull shelf out about 6" (Figure 10, 1), until back of
shelf clears the "hump" on the right-hand side.
3. Tilt up right-hand edge of shelf (Figure 10, 2).
4. Remove shelf from unit by pulling out (Figure 10, 3).
Insert the shelves as follows:
1. To move to a different position in the unit, insert shelf
at an angle, approximately 15-20°, over the rib in the
side of the unit where you want to place the shelf. The
shelf must be started into the unit at an angle to clear
the door.
2. Continue to slide the shelf into the unit at an angle
until it clears the door.
3. Lower the shelf and push it in completely.
4. Install shelf retention clip.
Light Bulb Replacement
To replace the light bulb in your U-Line unit:
1
1. Grasp the edges of the light housing lens
(Figure 11, 1) opposite the exposed tab, and gently
push the lens towards the tab (Figure 11, 2).
2. Pull the edge of the lens down (Figure 11, 1), and
swing it out of the light housing.
ALWAYS use a genuine U-Line replacement bulb (P/N
31317) in the light housing. Use of any other bulb
within the housing will generate excessive heat,
causing damage to the light housing and cabinet
interior, and compromising the precise temperature
control of your unit.
3. Replace the bulb only with a genuine U-Line P/N 31317
replacement.
4. Replace the lens by first inserting the tab side back into
the housing at a slight angle. While gently pushing the
lens towards the tab end, push the free end up into the
housing, and release when you will hear a snap/click.
ADA24
2
ULIN_0001_A
Figure 11
IMPORTANT IMPORTANT
9
