Summary of Contents for R&G LP0201BK
Page 1

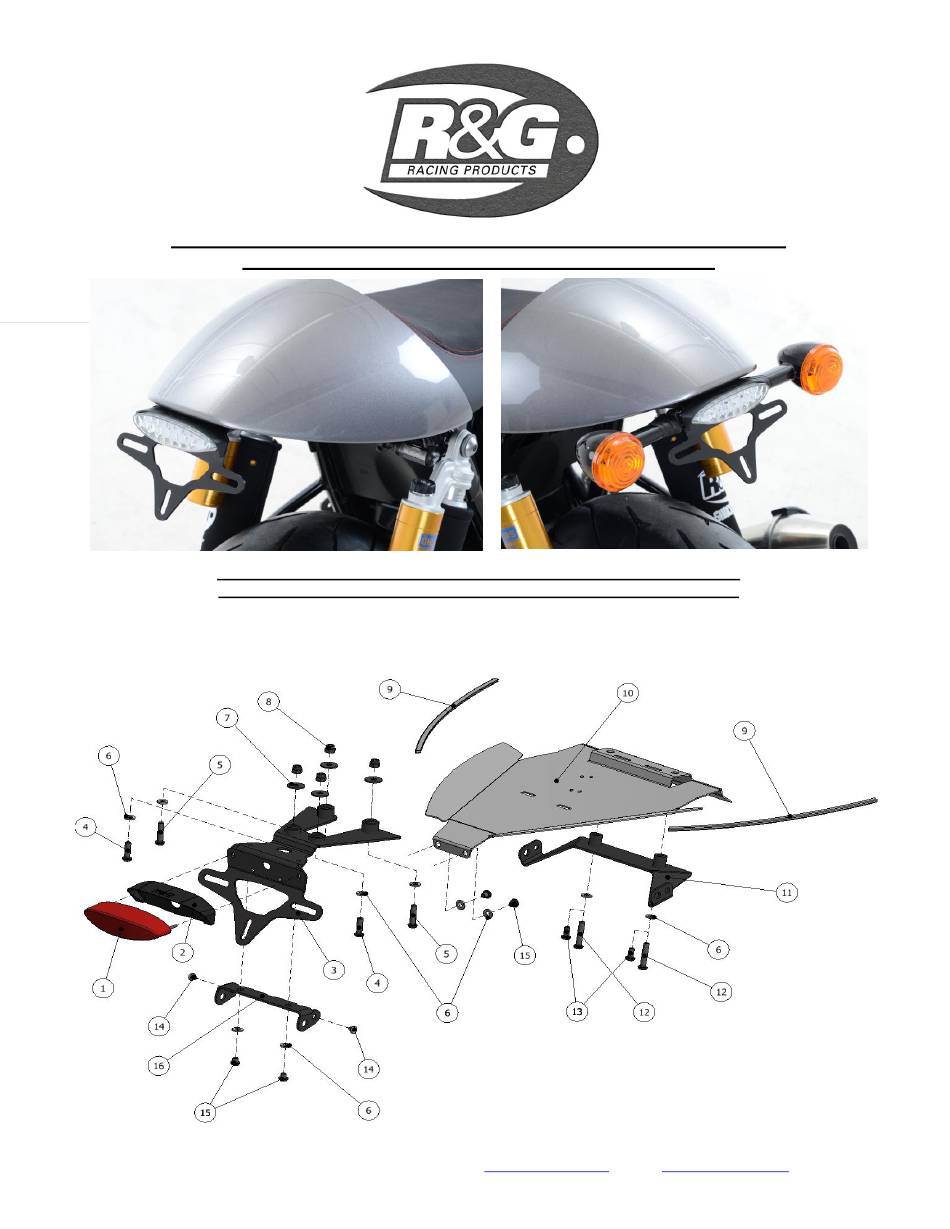

FITTING INSTRUCTIONS FOR LP0201BK LICENCE PLATE BRACKET TRIUMPH THRUXTON 1200 & THRUXTON 1200 R ’16- Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
FITTING INSTRUCTIONS To fit the R&G tail tidy, remove the seat and tail unit using the key, as shown in picture 1. Unclip the two rearward prongs to release the rear of the ECU plastic mount, as shown in picture 2. ...
Page 12
If fitting the R&G Mini Indicators, secure in place using the nut and use the rubber bung supplied (item 14) to blank off the smaller hole. Fit one length of heatshrink (item 18) to the wiring and feed it up through the central hole, as shown in pictures 27, 28, 29 &...
Page 13
Use the two indicator connectors (item 23 – CON0046) to connect the indicators to the OEM loom if using mini indicators. If fitting R&G Aero Indicators with LED’s, the yellow wire on the Aero Indicators connects with the green/red (left indicator) or green/red (right indicator) wire on the OEM loom and the black wire on the Aero Indicators connects with the black wire on the loom.
Page 14
NOTICE DE MONTAGE POUR LP0201BK SUPPORT DE PLAQUE TRIUMPH THRUXTON 1200 & THRUXTON 1200 R ’16- Page | 14 Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. A FAÇON DONT LE KIT EST EMBALLE NE CORRESPOND PAS FORCEMENT A LA FAÇON DE MONTER LES PIECES...
Couples de serrage recommandés : M4 BOULON = 8Nm M5 BOULON = 12Nm Page | 16 M6 BOULON = 15Nm M8 BOULON = 20Nm NOTICE DE MONTAGE Pour monter le support de plaque R&G, enlever l’unité de support de plaque à l’aide de la clé, voir photo 1. ...
Page 17
Monter l’ensemble sur le support de plaque, en veillant à ce que les trous filetés sur le feu se placent dans les 2 fentes et que les fils se placent dans le trou central, voir photos 23 & 24, avant d’insérer les écrous et rondelles puis serrer.
Page 18
Veiller à ce que les boulons soient correctement serrés, et que le cache sous siège soit correctement fixé en place. Fixer le mécanisme de blocage du siège en place sur le dessus du cache sous siège à l’aide des 2 colliers de serrage (article 17) voir photos 39 &...
Page 19
indirect or consequential loss and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect the Buyer’s statutory rights. R&G RACING RETURNS POLICY (NON-FAULTY GOODS) Returns must be pre-authorised (if not pre-authorised the return will be rejected).
