Interlogix ATS1831 Installation Sheet

ATS1831/32 IUM Modules Installation Sheet

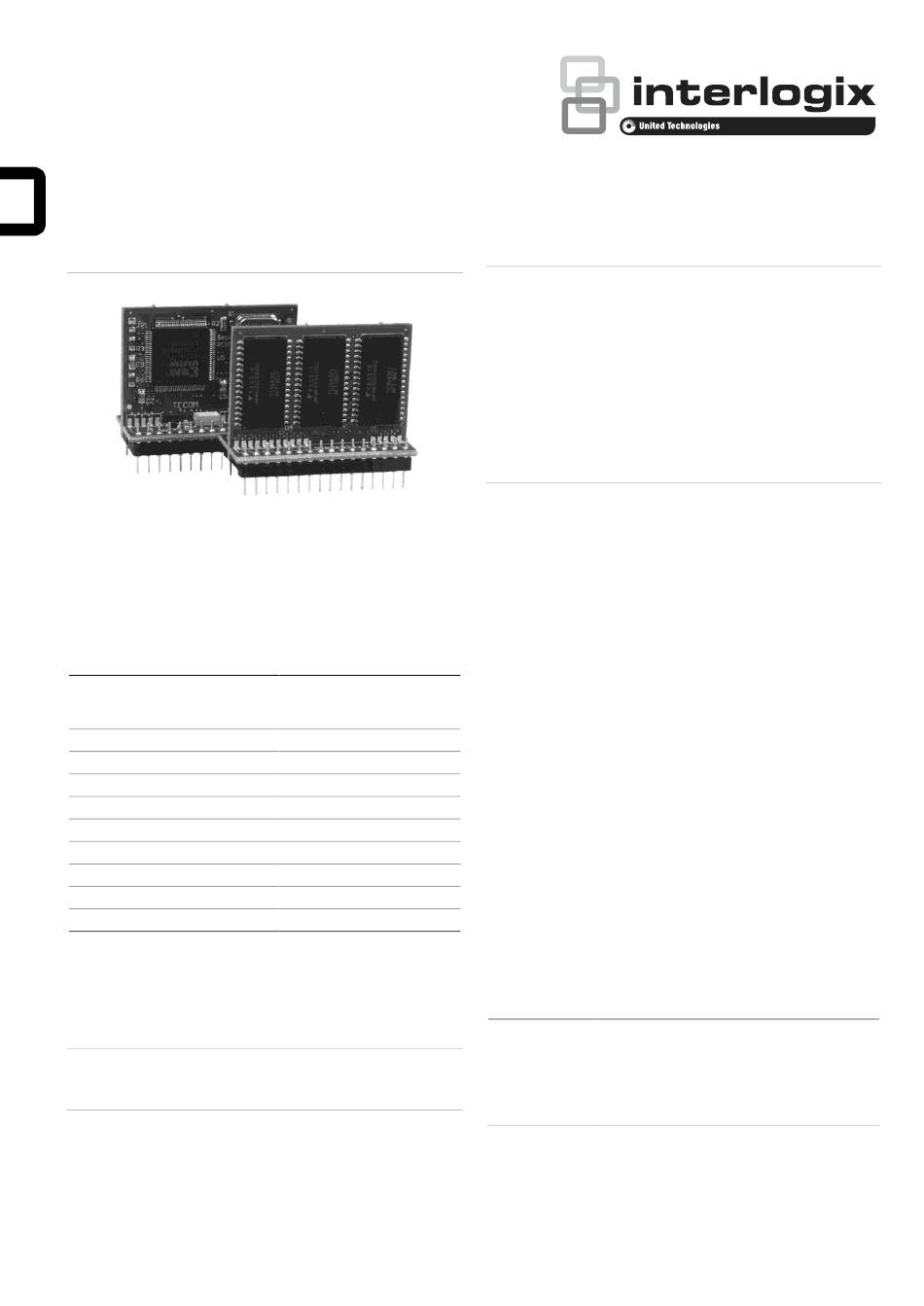

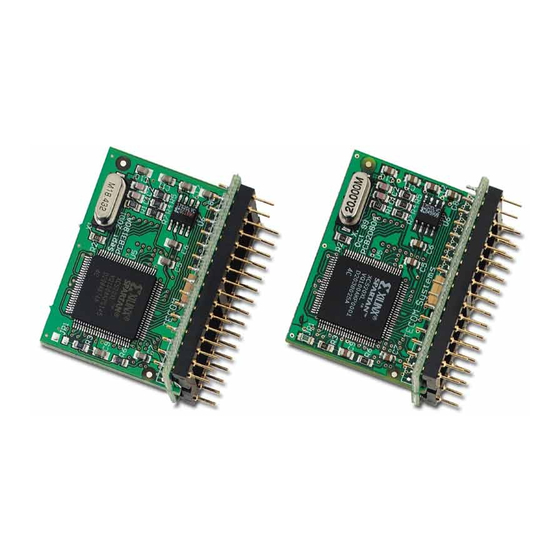

Figure 1: ATS1832 8 MB IUM module
Description
The intelligent user memory (IUM) module is an optional
memory expansion component that works with the Advisor
Master system. Two models are available: ATS1831 (4 MB)
and ATS1832 (8 MB).
Table 1: Advisor Master system capacities with IUM modules
User records (cards)
ATS1831
ATS1832
Users with PIN code (4 to 10 digits)
Users names (max. 16 characters)
Card data formats
Programmable alarm groups
Door groups
Floor groups
Time zones
Alarm events buffer
Access events buffer
* Applies to a control panel where ATS1831 can support 5,000 and
ATS1832 can support 10,000 access events. In all other cases 1,000
access events are supported.
Installation
WARNING: A qualified service person, complying with all
applicable codes, should perform all required hardware
installation.
IUM modules are plugged into a control panel PCB and any of
the panel's intelligent four-door/four-lift controller PCBs to
increase system capacity. The control panel and any intelligent
four-door/four-lift controller must use memory expansion
modules of the same capacity.
© 2019 UTC Fire & Security Americas Corporation, Inc.
17,873/15,000
65,535/55,000
All users
Users 1 to 200
Up to 48-bit
128
128
64
24
1,000
1,000/5,000/10,000*
Cautions
•
When installing an IUM module onto a control panel, the
existing records for users, door groups, and floor groups
are erased from the control panel's memory. You must
back up these records (if required) and reprogram them
into the control panel after installing the module.
•
Take static preventative measures during installation.
A conductive wrist strap should be worn and connected to
a 0 V terminal (e.g. "Batt−" or "Aux Pwr−"). If a wrist strap
is unavailable, touch the 0 V terminal before installing, and
then avoid touching the pins of the chip.
Note the alignment notch on one end of the module.
To install the IUM module:
1. Disconnect the plug pack and battery from the control
panel or intelligent four-door/four-lift controller.
2. Carefully remove the module from its packaging, taking
extreme care that none of the pins are bent.
3. Note the orientation of the module. The module has a
notch, which corresponds with a notch on the IC socket.
If the IC socket is already fitted with a memory expansion
module, you must remove the module so that you can
insert the IUM module in its place.
4. With the notch on the module aligned with the notch on
the IC socket, carefully insert the module into the socket
marked "RAM/IUM" making sure that no pins are bent
under.
5. Gently press the module into the socket until all of the pins
sit firmly in the socket.
Clear the panel's memory by shorting the KILL jumper for
6.
a minimum of 30 seconds (refer to installation guides for
details).
7. Reapply power to the control panel or intelligent four-
door/four-lift controller.
