Tripp Lite PDUMH15 Specification Sheet

Model #: PDUMH15

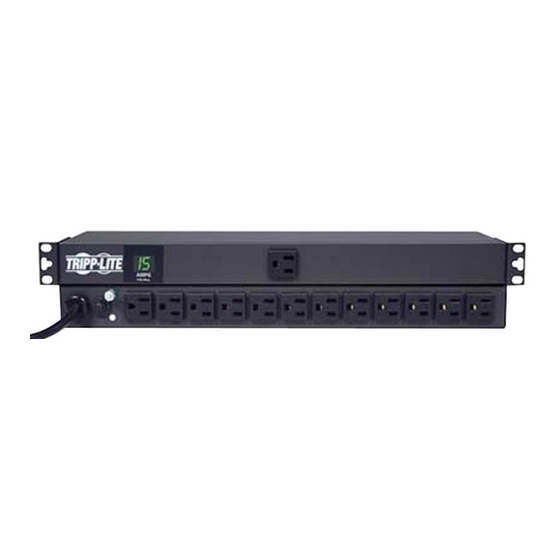

Single-Phase Metered PDU, 15A 120V, 1U Horizontal Rackmount, NEMA 5-15R outlets, NEMA 5-15P input plug
Description
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current
monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power
distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure
rackmount installation with included mounting accessories.
Applications
Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rackmount,
wall-mount, and under-counter applications such as internetworking, PC systems, telecommunications, audio visual, security, sound
reinforcement, and more. Ideal distribution of alternate and sinewave UPS and generator power or commercially derived AC power to
connected equipment.
Package Includes
PDUMH15 Metered rackmount PDU
Owner's manual with warranty information
Features
15A single phase 120V Metered Power Distribution Unit / PDU
Built-in 2 digit visual meter continuously reports PDU load level in amps
Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
1U horizontal rackmount format installs in one rack space
13 NEMA 5-15R outlets (1 front facing / 12 rear)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
Specifications
OVERVIEW
Model Type
PDU Type
Highlights
Metered
Metered
Metered single phase 15A 120V PDU
1U horizontal rackmount; digital current meter
NEMA 5-15P input; 15 ft. / 4.5m line cord
13 NEMA 5-15R outlets (1 front / 12 rear)
Reversible housing; 4.5 in. / 11.4 cm depth
