Delta 100 Series Manual

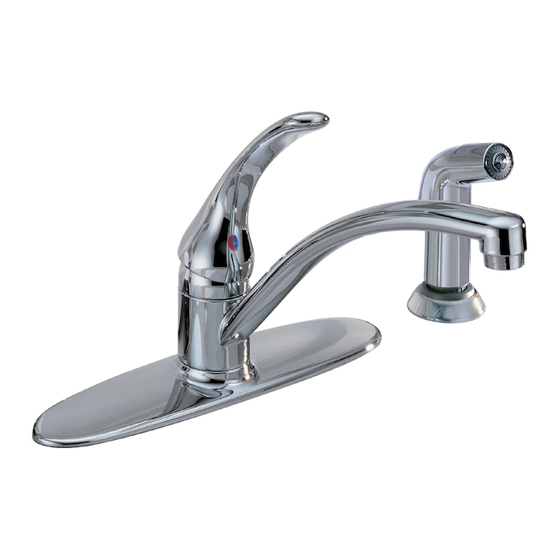

Single handle kitchen faucet
Hide thumbs
Also See for 100 Series:
- Installation instructions manual (36 pages) ,
- Parts list (2 pages) ,
- Manual (8 pages)
Advertisement
Quick Links
U P
®
C
®
ASME A112.18.1 / CSA B125.1
Models/Modelos/Modèles
100-HDF-DST
101-HDF-DST
400-HDF-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
Delta faucet, you will need:
• To READ ALL the instructions
completely before beginning.
• To READ ALL warnings, care
and maintenance information.
Para instalación fácil de su
llave Delta usted necesitará:
• LEER TODAS las instrucciones
completamente antes de empezar.
• LEER TODOS los avisos, cuidados,
e información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez :
• LIRE TOUTES les instructions avant
de débuter.
• LIRE TOUS les avertissements ainsi
que toutes les instructions de
nettoyage et d'entretien.
SINGLE HANDLE KITCHEN FAUCET
LLAVE DE COCINA DE PALANCA
ROBINET DE CUISINE À UNE MANETTE
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:

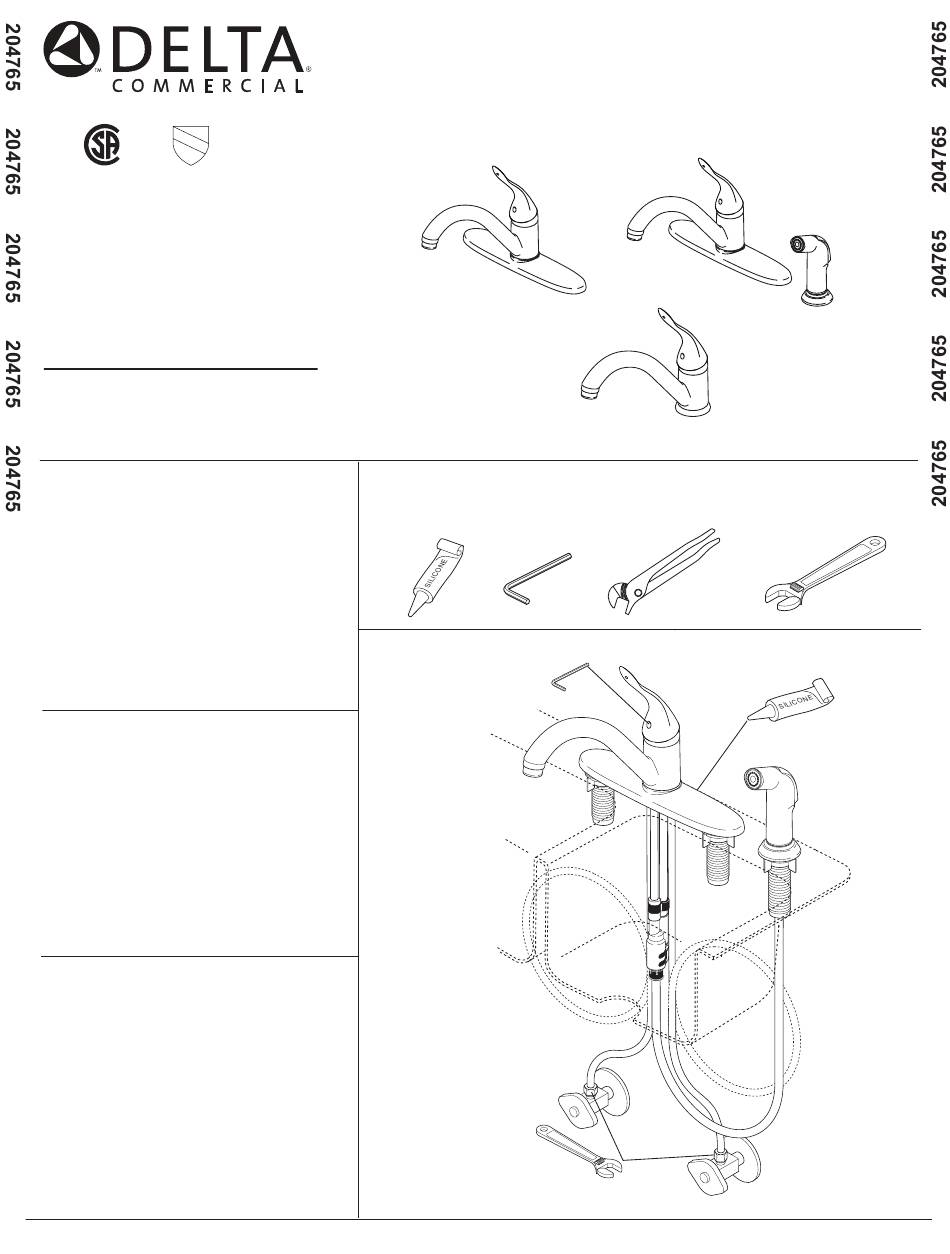

Page 1
204765 Rev. B
Advertisement
Related Manuals for Delta 100 Series
Summary of Contents for Delta 100 Series
- Page 1 Inscrivez le numéro de modèle ici. You may need/Usted puede necesitar/ Articles dont vous pouvez avoir besoin: For easy installation of your Delta faucet, you will need: • To READ ALL the instructions completely before beginning. • To READ ALL warnings, care and maintenance information.
- Page 2 061035A RP54687 Set Screw (pkg of 3) Elbow Handle & Set Screw Tornillo de Ajuste (pkg de 3) Manija del Codo y Tornillo de Ajuste Vis de Calage (pqt de 3) Manette de Coude et Vis de Calage RP51502 Casquillo Embase RP54236 Escutcheon &...
- Page 3 100 Series 400 Series 101 Series 400 Series 101 Series 100 Series SHUT OFF WATER SUPPLIES. Remove old SHUT OFF WATER SUPPLIES. Remove SHUT OFF WATER SUPPLIES. Remove faucet. Feed tubes (1) down through centre hole old faucet. Make sure gasket and base (1) old faucet.
- Page 4 For Sprayer Model Only Keeping clip (1) disengaged, insert diverter hose end (2) into Pull on clip (1) until disengaged. Pull down on diverter plug (2) to diverter housing (3) until seated. Push in clip (1) until it snaps. remove. Discard diverter plug. Caution: Do not remove tube Pull down moderatly to ensure connection has been made.
- Page 5 Water Line Connections joint to be created. Delta is not responsible for Potential Problems and Remedies tubing that is cut too short or cut in a way that will Ensure all fittings and end connections are free of debris. ♦ Tubing is not cut perpendicular to the axis of the tub: not allow for a leak-free joint.
- Page 6 Incorrect Installation Correct method Instalación Incorrecta Método Correcto Installation Incorrecte bonne méthode Do not install sleeve Ensure cut is straight. upside down. Custom Fit Connections - Plastic Sleeve Installation Instructions No instale la manga Asegúrese que el corte boca abajo. esté...
- Page 7 FLUSH YOUR SYSTEM: Check all connections at arrows for leaks. Re-tighten if necessary, Remove aerator (1) and turn faucet handle (2) to the full on but do not overtighten. mixed position. Turn on hot and cold water supplies (3) and flush water lines for one minute.
- Page 8 Setting The Handle Limit Stop (Optional) however, this handle limit stop will not always prevent scalding because it does This faucet includes an integrated handle limit stop that has two positions. not compensate for incoming pressure or sudden water temperature changes. Position 1, to the left, allows full handle motion (the full range between “all cold”...
- Page 9 Maintenance If faucet exhibits very low flow: If spray attachment does not function properly: Replace diverter and hose A. Remove and clean Aerator (1), or assembly (5). B. SHUT OFF WATER SUPPLIES. Replace valve cartridge (2). When * WARNING: Failute to securely tighten bonnet nut with a wrench could reinstalling parts, make sure bonnet nut (4) is tightened securely with a result in water damage.
- Page 10 Delta Commercial Faucet Limited Warranty All parts of the Delta® HDF® and TECK® faucets are warranted to the original consumer purchaser to be free from defects in material, finish and workmanship for a period of five (5) years unless otherwise specifically stated in the catalogue and price book. This warranty is made to the original consumer purchaser and shall be effective from date of purchase as shown on purchaser’s receipt.
