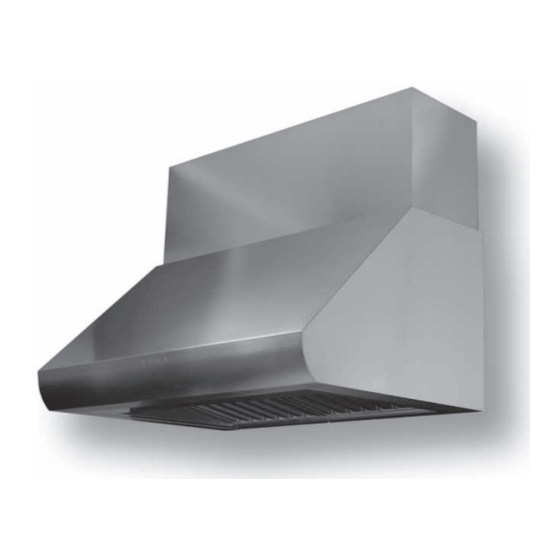

- Page 1 INSTALLATION INSTRUCTIONS CARE AND USE MANUAL FOR: WALL RANGE HOODS Models covered by this instructions: SU35 TC - SU109 *** BEFORE INSTALLATION *** ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING *** SHIPPING DAMAGE *** MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT...
- Page 2 WAR NIN G Thank you for purchasing a Sirius Range Hood. Please read all the instructions in this manual before installing the appliance. Save these instructions for future reference. Only use this appliance as an exhaust ventilation system for the removal of coo- king vapors.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN DUCTING External Venting Requirements Duct Run Calculation ELECTRICAL Electrical Supply USES INSTALLATION OPERATING PROCEDURES Working MAINTENANCE Light Bulb Replacement Substitution of the LED bar WARRANTY... -
Page 4: Before You Begin
B E FOR E Y O U B E G IN The manufacturer declines all responsibility BEFORE YOU BEGIN: It is advisable to in the event of failure to observe the instruc- test run the range hood before installa- tions given here for installation, maintenan- tion. -
Page 5: Electrical
Maximum Run 6” or 3 1/4 x 10” duct * 100 FT Deduct Each 90 elbow used 15FT Each 45 elbow used Each 6” or 3 1/4 x 10” duct Transition used Each 3” 1/4 x 10” to 6” Range hoods may interrupt the proper flow Transition used of combustion gases from fireplaces, gas furnaces and gas water heaters. -
Page 6: Uses
U S E S The appliance can be used both in filtering In the sucking version, fumes are conveyed and sucking versions. directly outside, through an evacuating duct. The use of a charcoal filter is not needed. In the filtering version, air and fumes conve- yed by the appliance are purified by both a grease filter and an active charcoal filter and are then released and re-circulated into the... -
Page 7: Installation
I N S TA L L ATIO N Before installation, in order to avoid damage Using the special drilling jig, to the appliance, remove the grease filter. The removal of the of the metal grease-filter is done by pushing the special filter handle towards the rear side of the cooker hood, making it rotate downwards. - Page 8 Hook the cooker hood into the bearings, In the 30” version, it is possible to orient the then adjust vertically and horizontally the air outlet towards the rear side of the cooker position of the appliance, acting on the spe- hood by rotating the sucking unit.
-
Page 9: Operating Procedures
In the case of the sucking version, connect the After having fixed the hood-bearing stirrup of flange of the cooker hood to the air outlet hole, the upper chimney, raise and block it with the which is already prepared, through a suitable two side screws. -
Page 10: Working
FUNCTION SU35 TC The functions of the keys of the Touch Con- trol keypad (push button control panel) are described below: A: LIGHT SWITCH ON/OFF B: SPEED REDUCTION / OFF MOTOR C: SPEED INDICATORS D: ON MOTOR / SPEED INCREASE E: TIMER 10 min. -
Page 11: Maintenance
The supply cord should be replaced by qualified and authori- zed personnel only. FOR SU35 TC Light Bulb Replacement (If in doubt, call 866.528.4987) Turn blower and lights off. Make sure the lights are cool. -
Page 12: Substitution Of The Led Bar
FOR SU109 Substitution of the LED bar: Using an appropriate tool, remove the LED bar from its seat, disconnect it electronically using the appropriate connector then substi- tute it with a LED bar with same characte- ristics. -
Page 13: Warranty
Three Year Limited Warranty YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY. YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE THE GREASE FILTER TO READ IT. WARRANTY SERVICE To qualify for warranty service, you must notify Sirius After sale service at the email address stated below or call toll free USA 1-877-474-8770 and provide the model number, description...
