Empire Comfort Systems LK6-2 Installation Instructions

INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION
TOOLS NEEDED: CARTON CONTENTS:
• Phillips •
Screwdriver •
INSTALLATION
1. Remove glass door and control panel. For more information,
refer to instructions that came with your appliance.

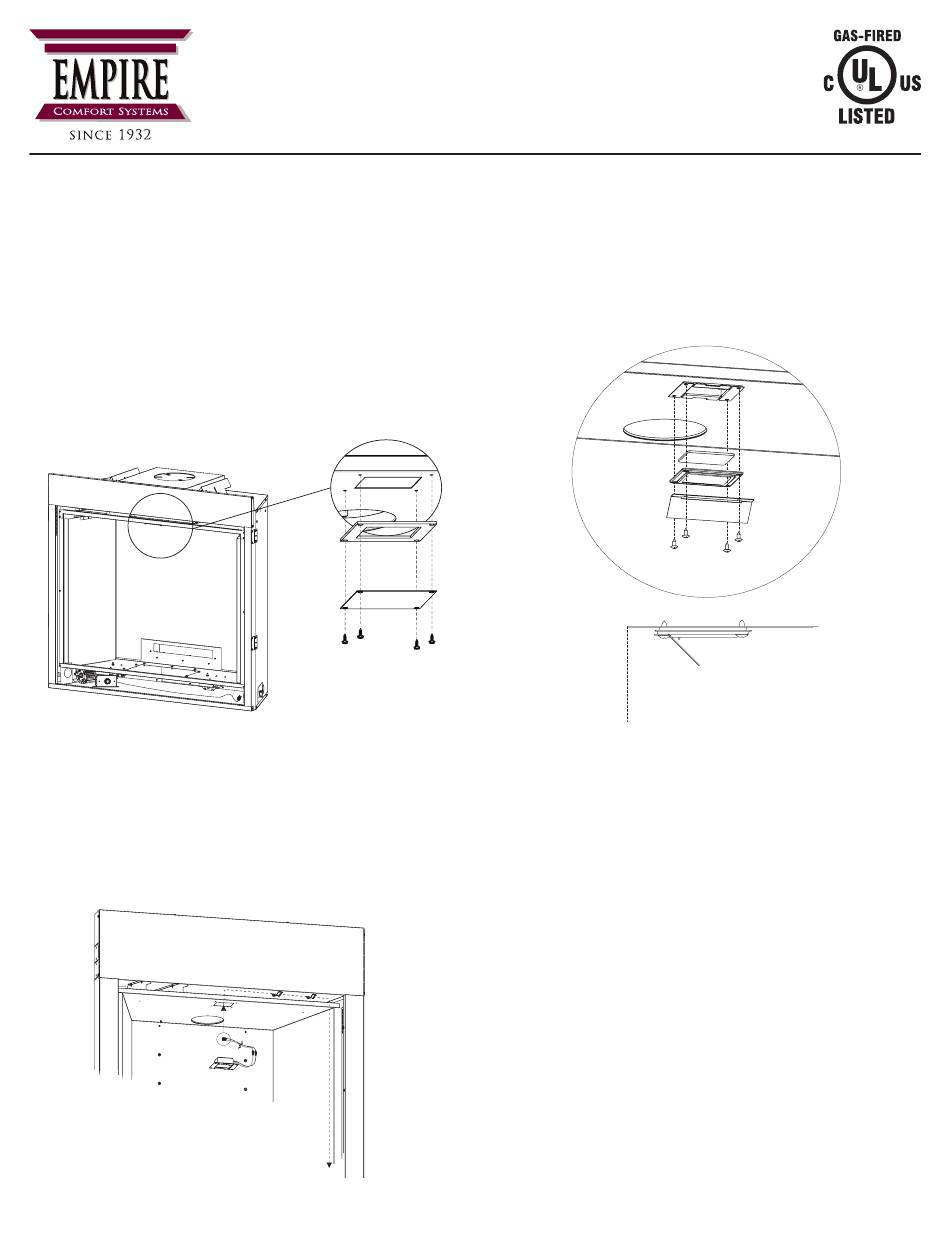

2. Remove the four screws securing the metal plate and
gasket to the top of the firebox and discard. See Figure 1.
3. Disconnect the two leads from the light assembly to the
control assembly. See exploded view on next page.
4. While wearing gloves, attach the light bulb to the light
socket.
5. Feed the light kit wiring through the cut-out, 2 wire clips
and down the right side of the unit. See Figure 2.
35482-2-0220
INSTALLATION INSTRUCTIONS
LK6 - 2 LIGHT KIT
FOR USE ON MODELS: DVCP, DVCC, DVCX
•
Light Assembly •
4 - #10 X 1/2" •
Screws •
Figure 1
Figure 2
Empire Comfort Systems Inc. • Belleville, IL
Bezel 6. Decide which glass you would like to install. Clear glass
Glass (2) will produce bright light and the orange glass will produce
Gasket a dimmer orange light. Secure the shield, bezel, glass,
Light Bulb gasket and light assembly to the firebox with four screws.
See Figure 3.
7. Reconnect the wires disconnected in step 3 and connect
the power source to the wall outlet.
8. Reinstall glass door and control panel. For more information,
refer to instructions that came with your appliance.
FRONT
ASSEMBLED
OF UNIT
SIDE VIEW
Figure 3
Page 1
