Toro Greensmaster TriFlex 3320 Installation Instructions Manual

E-Reels Harness Kit
Greensmaster
Model No. 131-8758
This product contains a chemical or chemicals known to the State of California to
Note: Determine the left and right and front and back sides of the machine from the normal operating position.
Preparing the Machine
1. Park the machine on a level surface, stop the engine,
and remove the key from the ignition.
2. Disconnect the negative battery cable from the battery.
3. Disable the reel batteries by pulling apart the battery
disconnect at the base of the left side of the ROPS.
4. Remove the flange-head bolts securing the left and
right side consoles, and remove the consoles.
Note: Retain the flange-head bolts and the left
console. Discard the right console.

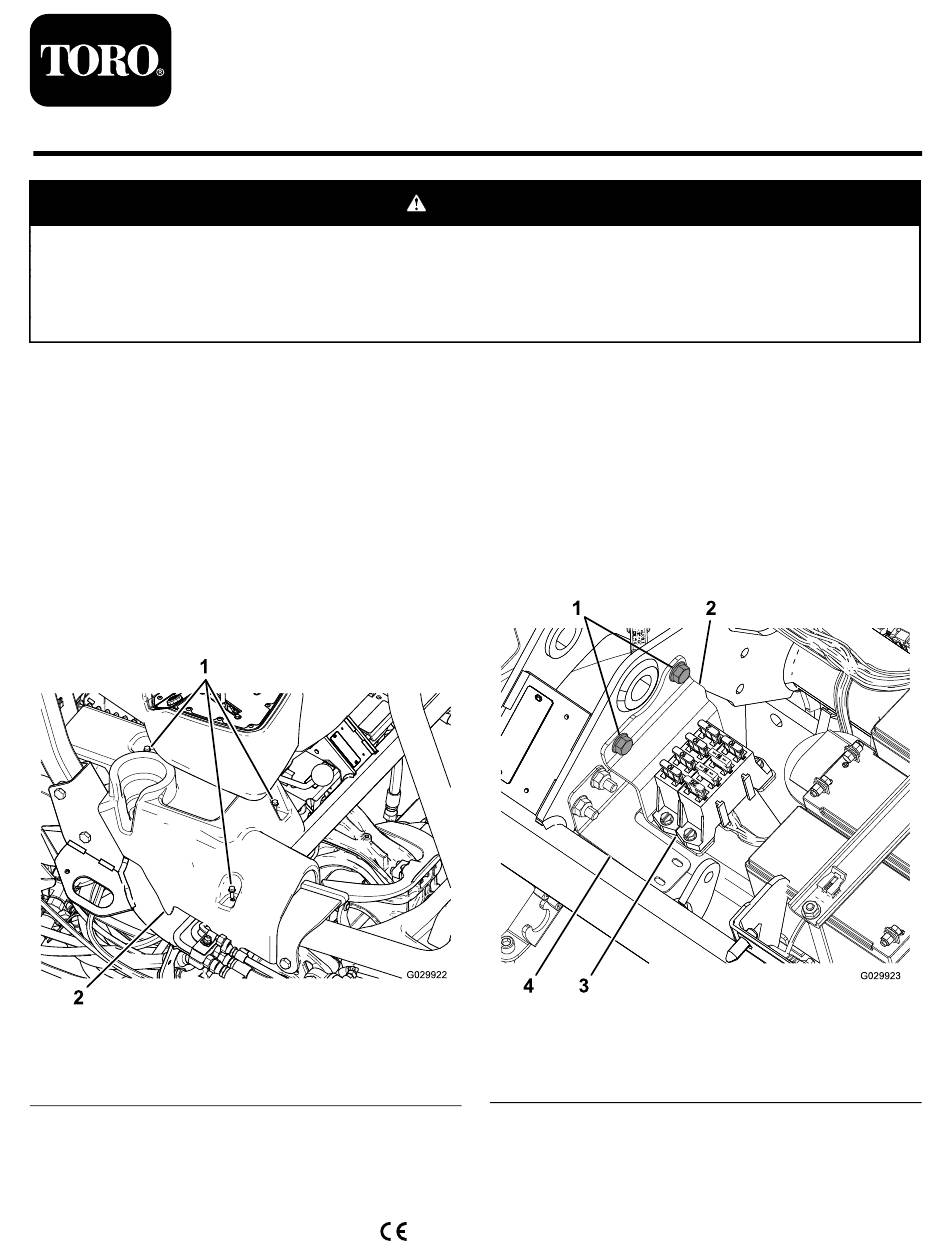

Right console shown
1. Flange-head bolts
5. Tip the seat forward.
6. Remove the ground terminal connectors (J06 and J08)
from the ground block.
© 2015—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
® 3320 or 3420 TriFlex
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
Figure 1
2. Right console
Register at www.Toro.com.
®
WARNING
CALIFORNIA
7. Cut and remove all the cable ties securing the existing
wiring harness.
Important: Do not cut any wires or other
components.
8. Remove the mounting bracket that holds the fuse block
under the seat.
Note: Keep the fuse block attached to the bracket.
1. Flange bolts (remove and
retain)
2. Bracket
9. Disconnect the harness from the 3 reel motors (2
connectors each).
Form No. 3394-595 Rev A
Traction Unit
Installation Instructions
Figure 2
3. Fuse block
4. Harness bracket
Original Instructions (EN) All Rights Reserved *3394-595* A
