I. Setting up the Stanton STR8-30 turntable
1. Unpack the turntable (Stanton STR8-30) and assemble

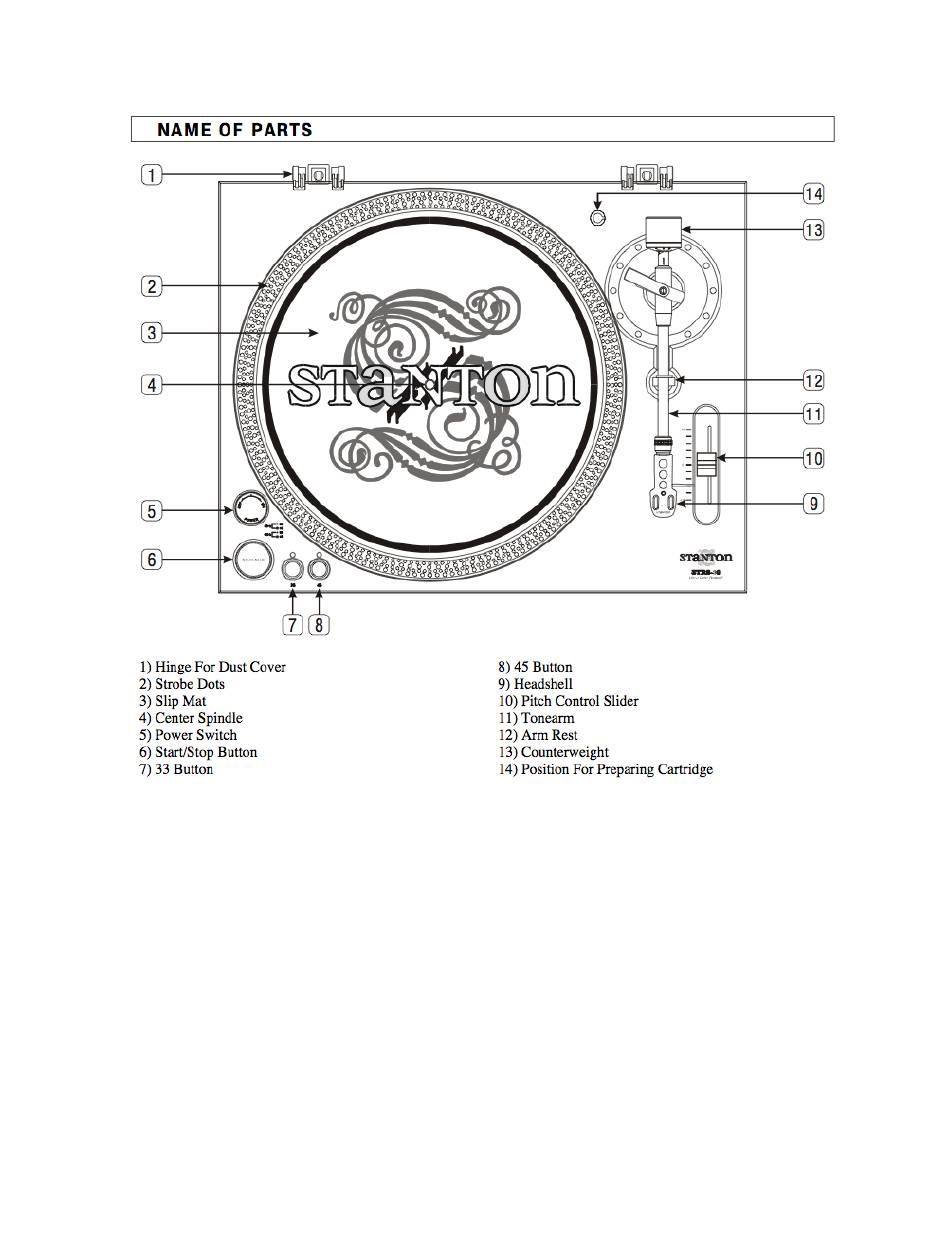

2. Put the slip mat [3] on the turntable (black side facing up, logo facing down – so it
can't be seen)
3. Connect the RCA audio cable with ground cable to the record player and plug in
the power cord (ATTENTION: the record player can be switched between 120VAC
and 240VAC – it is already set to 240VAC). The setting of the power can be
switched back to 120VAC under the slip mat [3].
4. You might need to adjust the stylus pressure (it was adjusted in the USA but might
have shifted during transportation):
a. Remove the stylus protector, do not touch the stylus tip during the adjustment.
b. Release the arm clamp and lift the tonearm from the arm rest to free it.
c. Rotate the counterweight until the tonearm is approximately balanced
McMullen | Winkler, Waves Records setup, p.1
Advertisement
Related Manuals for Stanton STR8-30
Summary of Contents for Stanton STR8-30
- Page 1 I. Setting up the Stanton STR8-30 turntable 1. Unpack the turntable (Stanton STR8-30) and assemble 2. Put the slip mat [3] on the turntable (black side facing up, logo facing down – so it can’t be seen) 3. Connect the RCA audio cable with ground cable to the record player and plug in the power cord (ATTENTION: the record player can be switched between 120VAC and 240VAC –...
- Page 2 The average stylus pressure of the cartridge body is 1.5-2 g. II. Connecting the STR8-30 turntable to the mixer 1. Unpack the mixer and connect the power cord (ATTENTION: the supplied wall adapter only works with 120VAC, it transforms the power to 15VAC, 500mA).
- Page 3 4. Here are the settings for the sliders on top of the mixer: headphones Input selector MIX selector volume Input Selector to “PHONO 1” MIX selector to “CH 1” The cue knob sets the volume for the headphone output The CH 1 and CROSSFADER slider should not influence the sound level at all (it doesn’t matter what they are set to).
- Page 4 III. Installation in the Exhibition space: 1. The turntable and the mixer should be installed on a pedestal, ca. 100 cm tall, if the exhibition space is dark, please direct a spot light onto the record player/mixer. Put one Waves Record vinyl record on the turntable – exhibition visitors can play the vinyl record by themselves.
- Page 5 Appendix Picture of possible setup of the individual components of the Waves Records work. This picture was take during the last exhibition of the work at EX3 Centro per l'Arte Contemporanea in Florence, Italy in 2011: prints (the second one mixer turntable flatscreen TV with DVD...
