Page 2: Table Of Contents
DX-2100 Series Industrial 3G Cloud Router User Manual Table of Contents Chapter 1 Introduction Product Overview ..................1-3 1.1.1 Network Design ..................1-4 1.1.2 Features ....................1-4 1.1.3 Front Panel Ports and LEDs ..............1-5 1.1.4 Top Panel ..................... 1-5 1.1.5...
Page 3 3.2.4 Static Routing Rules ................3-14 3.2.5 Dynamic DNS ..................3-16 Firewall ..................... 3-17 3.3.1 Firewall Settings .................. 3-17 3.3.2 DMZ Settings ..................3-18 3.3.3 Port Forward ..................3-18 3.3.4 Port Trigger ..................3-21 3.3.5 URL Filter ................... 3-22 3.3.6 MAC Filter ..................
Page 4 Chapter 4 DIACom Introduction to DIACom ................4-2 4.1.1 Select a Suitable Firmware Version ............4-2 4.1.2 DIACom Installation ................4-3 4.1.3 DIACloud Account Registration ..............4-3 4.1.4 Bind DIACloud Account ................4-5 DIACom Operation ..................4-6 4.2.1 Setup a Secure Tunnel ................4-6 4.2.2 Create a Virtual Serial-Port ..............
Page 5 6.2.4 Registers View ..................6-6 6.2.5 Alarm List .................... 6-7...
Page 6 Chapter 1 Product Introduction Table of Contents Product Overview ..................1-3 1.1.1 Network Design ..................1-4 1.1.2 Features ....................1-4 1.1.3 Front Panel Ports and LEDs ..............1-5 1.1.4 Top Panel ..................... 1-5 1.1.5 Bottom Panel ..................1-6 1.1.6 Dimension .................... 1-7 Package Checklist ..................
Page 7 About This Manual The user manual is suitable for DX-2100RW-WW. If you need to use the Delta DX-2100 series products in China areas, please refer to the model name DX-2100RW-CN on the Delta website, or contact our branch offices or distributors.
Page 8: Product Overview

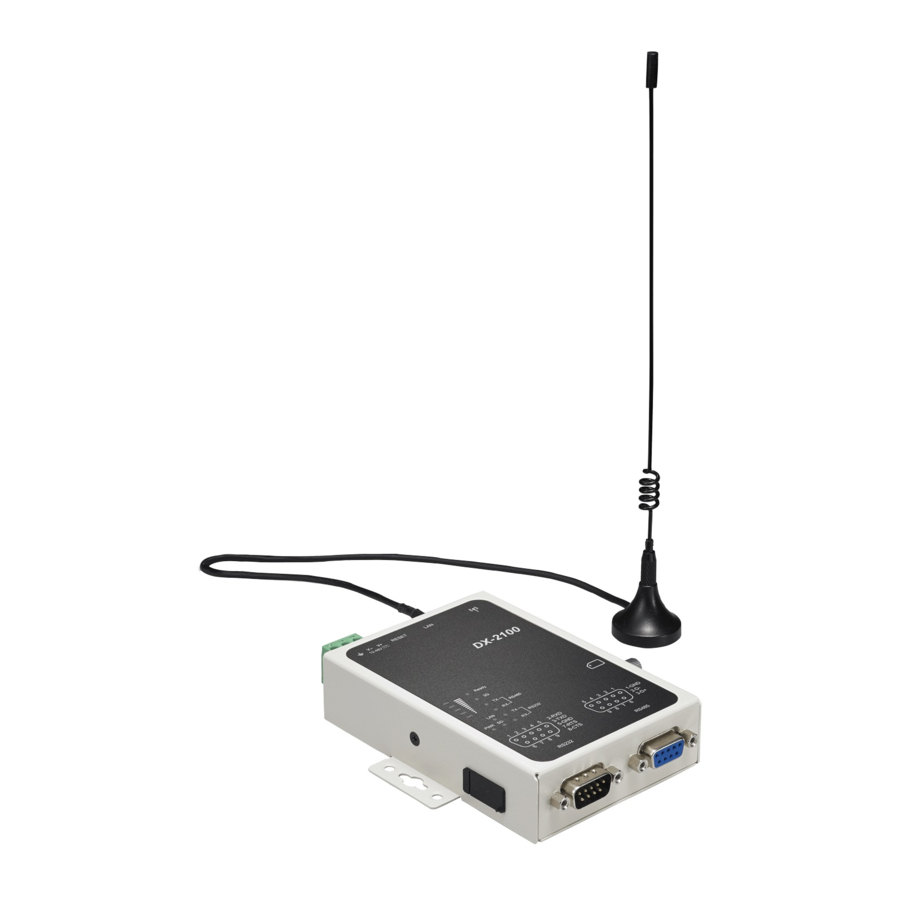

Ch ap te r 1 Pro duc t In tr oduc tio n Product Overview The DX-2100RW-WW is a single-port 3G industrial router, an Internet of Things wireless communication product of industrial grade. Apart from supporting HSPA+/HSUPA/HSDPA/UMTS, the product is also downward compatible with GSM/GPRS/EDGE mobile network.
Page 9: Network Design
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 1.1.1 Network Design DIACloud platform services supported, users can connect intelligent devices from different locations to the internet with DX-2100RW-WW and use point-to-point connection with the router for a safe and reliable data transmission and additionally save the costs of VPN device operation as well as maintenance.
Page 10: Front Panel Ports And Leds
Ch ap te r 1 Pro duc t In tr oduc tio n  Network Fault Detection and Diagnosis  DIACloud Service to Secure Point-to-point Data Transmission, to Manage Device Configurations Piece by Piece or in Batch and to Upgrade Firmware Remotely 1.1.3 Front Panel Ports and LEDs 1.1.4...
Page 11: Bottom Panel
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 1.1.5 Bottom Panel Notice This router’s reset button is on the front panel. By pressing the Reset button, users can reset the router or reset the router to factory default settings.
Page 12: Dimension
Ch ap te r 1 Pro duc t In tr oduc tio n 1.1.6 Dimension Unit = mm Package Checklist Unpack the package carefully and check the package contents. The package should contain the following items:  DX-2100RW-WW Industrial 3G Cloud Router x 1 ...
Page 13: Chapter 2 User Interface
Chapter 2 User Interface Table of Contents Web-based GUI Configuration ............... 2-2 2.1.1 System Connection ................... 2-2 2.1.2 Default IP Address/Account/Password ............2-2 2.1.3 Local Network Setups ................2-2 2.1.4 Logging in ....................2-4 DIADevice ..................... 2-5 2.2.1 Device Connection and Detection ..............2-5 2.2.2 Network Setting ..................
Page 14: Web-Based Gui Configuration
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Web-based GUI Configuration The DX-2100RW-WW Industrial 3G Cloud Router provides a friendly Web Browser Configuration for users to set up and operate more intruitivly. 2.1.1 System Connection Connect the DX-2100RW-WW with a computer directly or via a switch/hub.
Page 15 Cha p ter 2 In tr oduc tio n to Use r In ter face Click Obtain DNS server address automatically and then click OK to get a DNS server address automatically using DHCP.  Set up the IP address manually. (The IP address of the computer should be in the same subnet as the router’s.) 2 - 3...
Page 16: Logging In
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Since the router’s default IP address is 192.168.5.5 and the subnet mask is 255.255.255.0, the computer’s IP address can be set between 192.168.5.1 to 192.168.5.254 except 192.168.5.5. However, you’ll need to make sure there are no IP conflicts.
Page 17: Diadevice
Cha p ter 2 In tr oduc tio n to Use r In ter face DIADevice DIADevice is a tool for quickly configuring network devices. Users simply connect the DX device to the PC through the network cable. This tool can be used to quickly and easily configure the network setting of the device and complete the device binding DIACloud cloud account.
Page 18 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter After DIACom detects the device, it will automatically go to the login page, and the user needs to enter login password on the login page. 2 - 6...
Page 19: Network Setting
Cha p ter 2 In tr oduc tio n to Use r In ter face After passing the authentication, the device information page is displayed, including the basic device information (Device Name, S / N, firmware, LAN IP address), network status, WAN information, and cloud service information 2.2.2 Network Setting This feature allows you to quickly configure your network in two steps.
Page 20 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter The default is automatic. If you can not connect to the Internet using auto-setup, please use manual settings. After the device successfully connected to the Internet, the connection was successful. 2 - 8...
Page 21: Bind Device
Cha p ter 2 In tr oduc tio n to Use r In ter face 2.2.3 Bind Device This feature allows you to quickly bind your device to the DIAcloud in three steps. Click “Bind Device” Enter the DIAcloud account number and password, and click Next. 2 - 9...
Page 22 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter After binding configuration is configured, click “Bind” to bind. If your device is successfully bound to the cloud, the following screen will appear Notice If the device has been bound to the cloud account, you need to switch to another cloud account binding, you only need to repeat 1-3 steps and then enter the new cloud account...
Page 23: Open Device Webpage
Cha p ter 2 In tr oduc tio n to Use r In ter face 2.2.4 Open Device Webpage Click open device webpage button, the browser will open the device settings page, the user can set the parameters of RS232 / 485 configuration. 2 - 1 1...
Page 24: Chapter 3 Functions
Chapter 3 Functions Table of Contents Status ......................3-3 3.1.1 Device Information ................3-3 3.1.2 Network Status ..................3-5 3.1.3 Routing Table ..................3-6 3.1.4 Local Log ....................3-6 3.1.5 Traffic Statistics ..................3-7 3.1.6 Cloud Status ..................3-7 3.1.7 Connected Device ..................
Page 25 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.4.9.1 Add A New Job ................3-41 3.4.9.2 Export Job List ................3-42 3.4.9.3 Import Job List ................3-42 3.4.10 Network Diagnosis ................3-42 3.4.11 System Reboot ...................
Page 26: Status
CH3 Func ti ons Status You can view summary or detailed information on the Device Information, Network Status, Routing Table, Local Log, Traffic Statistics, Cloud Status, and Connected Device. 3.1.1 Device Information This page shows basic information on the Hardware/Software version and Resource Usage Information. 3 - 3...
Page 27 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter  Hardware Version Item Description RTM Version Release to manufacturing version of the router Release Date Hardware release date Serial number of the router ...
Page 28: Network Status
Cha p ter 3 In tr od ucti on to F unc tio ns 3.1.2 Network Status This page shows basic information on Cellular Network Status and LAN Status. Cellular Network Status includes the Operator, Signal Strength, Connection Status, Online Duration, Authorization Mode, APN, Telephone Number, IP Address Network Mask, Gateway Address, primary DNS, and Secondary DNS.
Page 29: Routing Table
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.1.3 Routing Table This page shows basic information on the routing table, including the Destination, Gateway, Network Mask, HOPS and Network Interface. 3.1.4 Local Log This page shows logs of the router, including the System log, Warning lot and the Debug log.
Page 30: Traffic Statistics
Cha p ter 3 In tr od ucti on to F unc tio ns 3.1.5 Traffic Statistics This page shows network traffic information of the router, including the data sent and received over Cellular and LAN. You can use the buttons on the right hand side to refresh or clear the traffic information. 3.1.6 Cloud Status This page shows cloud server information of the router, including the Registration Status, Service Status, and Activated...
Page 31: Connected Device
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.1.7 Connected Device This page shows information of the devices connected to the router, including the IP Address, Host Name, MAC Address. Network You can set up networks, including the WAN Configurations, LAN Configurations, Static Routing Rules and Dynamic DNS.
Page 32 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Operator Select Auto or Others for the Operator from the dropdown list.  Auto: the system will detect the operator from the inserted SIM card AUTO and set up accordingly.
Page 33 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default will set the name up automatically and users cannot change the setting. Password This password is provided by the operator. When “Auto” is selected, the system will set the password up automatically and users cannot change the setting.
Page 34: Pin Management
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Maximum Transmission Unit is the largest packet that can be transmitted 1492 over packet based networks. Auto Detect If the connection is dropped, a ping test will launch automatically. Enable Target Address www.DIACloudSo...
Page 35 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter  The verification passes, it will display as below. Notice  If you enter the wrong PIN three times, your SIM card will become locked. ...
Page 36: Lan Configurations
Cha p ter 3 In tr od ucti on to F unc tio ns 3.2.3 LAN Configurations This page is used for setting up the LAN, including the Device Name, IP Address, Network Mask, and DHCP Server. Description Default Device Name DX2100 + “_”...
Page 37: Static Routing Rules
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default To set up the address lease time so that a client doesn't hold an IP address indefinitely. It allows for a mechanism to gracefully reuse DHCP addresses. One day Options here are 1 to 3 days.
Page 38 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Rule Name Set up a name for your rule. The name shall be composed of letters, numbers and underline, starting with a letter or number. The maximum string length is 32 bytes.
Page 39: Dynamic Dns
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.2.5 Dynamic DNS This page is used for setting up the Dynamic DNS Settings, including the Dynamic DNS, Service Provider, Domain User Name, Password, and the Refreshing Interval. Description Default Dynamic DNS...
Page 40: Firewall
Cha p ter 3 In tr od ucti on to F unc tio ns Firewall You can set up firewall configurations, including the Firewall Settings, DMZ Settings, Port Forward, Port Trigger, URL Filter, MAC Filter, and IP Filter. 3.3.1 Firewall Settings This page is used for setting up the basic firewall settings, including the SPI firewall switch, WAN Ping response, LAN SSH function and WAN SSH.
Page 41: Dmz Settings
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.3.2 DMZ Settings This page is used for setting up the DMZ server. Description Default DMZ Server Demilitarized zone (DMZ) is a special segment of the local network reserved for servers accessible from the Internet, adding an additional layer of Disable security.
Page 42 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Network Services Select the common network services. Refer to the following common service Customized list for optional values. Service Name Set up the service name for port forwarding. The name is composed of letters, numbers and underline, starting with a letter or number.
Page 43 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default Server IP Address Set up the server IP address that applies to the port mapping rule. 192.168.1.* Common Service List for Port Forwarding Protocol Starting Port Ending Port...
Page 44: Port Trigger
Cha p ter 3 In tr od ucti on to F unc tio ns 3.3.4 Port Trigger This page is used for setting up the port trigger, including configuring the Service Name, Service User, Service Type, Trigger Port, Protocol Role, Begin Port, End Port, and Status. Port triggering is port forwarding with an on/off switch for the ports that have been forwarded.
Page 45: Url Filter
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default Service Type Set up the protocol type for port triggering. Triggering Port Set up the triggering port. The port range is 1~65534. Protocol Role Set up the protocol type for the inbound connection.
Page 46: Mac Filter
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default URL Address Manually input the URL address that you’d like to block, for example www.baidu.com. LAN IP Address Set up the LAN IP address that you’d like to block. Options are “Any Address”, Any Address “Single Address”...
Page 47: Ip Filter
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.3.7 IP Filter This page is used for setting up the IP Filter, including configuring the Source IP, Source Port, Destination IP, Destination Port, Protocol and Status.
Page 48: System
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Enable/disable the URL Filter functionality. Enabled System You can set up the system configurations, including the User Management, Time Zone Configurations, RS232, RS485, Modbus TCP, Log Setting, Firmware Upgrade, Backup & Restore, Scheduled Jobs, Network Diagnosis, System Reboot, Event Management, and Register Management.
Page 49: Time Zone Configurations
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.4.2 Time Zone Configurations You can change the current time of the device. Use the dropdown list to select the correct time zone for your device. Description Default The current time of device...
Page 50 Cha p ter 3 In tr od ucti on to F unc tio ns 3 - 2 7...
Page 51 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default Working Mode Select the working mode for the current active serial port.  Transparent mode: This mode is suitable for uploading and downloading data remotely via the serial port.
Page 52 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default  Transparent mode: 7, 8  Slave mode: 8 Stop Bits Set up the stop bits for the serial port. Options are 1 and 2. Parity Bits Set up the parity bits for the serial port.
Page 53 It’s fixed to 0 in MC master mode. Controller In master mode, device types options are:  Delta PLC: Use this option for Delta DVP / AH / AS series PLCs  Other: Use this option for non-Delta PLCs. Delta DVP PLC HEX means hexadecimal address, DEC means decimal address.
Page 54: Rs485
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default address followed by the default mapped address. Add Mappings Click the button to add mappings; the data mapping can be set to 200. Edit Click an item of register mapping forms that can be edited.
Page 55 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3 - 3 2...
Page 56 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Working Mode Select the working mode for the current active serial port.  Transparent mode: This mode is suitable for uploading and downloading data remotely via the serial port. ...
Page 57 Slave ID Set up the corresponding slave communication port. The value is between 1 and 247. Controller Device types: Delta DVP  Delta PLC: Use this option for Delta DVP / AH / AS series PLCs 3 - 3 4...
Page 58 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default  Other: Use this option for non-Delta PLCs. HEX means hexadecimal address, DEC means decimal address. Address Type Depending on the selected controller type change: ...
Page 59: Modbus Tcp
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.4.5 Modbus TCP This page allows users to set whether to enable Modbus TCP client mode and set relevant parameters. Description Default Working Mode ...
Page 60 The value is between 1 and 247. Add Mappings Controller Device types:  Delta PLC: Delta DVP / AH / AS series PLCs use this option. Delta DVP PLC  Other: Use this option for non-Delta DVP / AH / AS series PLCs.
Page 61 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default  Other: Enter the Hexadecimal or Decimal actual address. For example: Holding Register: 400100, take 0100 (decimal) that is 64 (hex). DX supports the Holding Register : 400001~465535 (Decimal) Device Starting Address...
Page 62: Log Settings
Cha p ter 3 In tr od ucti on to F unc tio ns 3.4.6 Log Settings This page is used for configuring the log settings, including Log to Console, Remote Log Service, Remote Log Server Address, and Port of Remote Log Server. Description Default Log to Console...
Page 63: Firmware Upgrade
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.4.7 Firmware Upgrade This page is used for upgrading the system. Description Default Select Firmware Click “Browse” to select the new firmware file. Upgrade Click “Upgrade”...
Page 64: Scheduled Jobs
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Click “Browse” to select the backup file and then click “Restore” to restore the configurations. The device configuration will be restored to the previous version and the device will reboot after the restoring is done.
Page 65: Export Job List
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default Recurring Job Once The scheduled job can be done Once, Every day, Every week, or Every month. And the specific time can be further defined. 01:00 Date Select a specific date to perform the scheduled job.
Page 66: 3.4.11 System Reboot
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Diagnosing Method Select the Diagnosing Method; options are Ping Test and Route Ping Test Trace. Host Name/IP Address Select the domain name or IP address of the server that you want to test.
Page 67: 3.4.12 Privilege Management
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 3.4.12 Privilege Management Privilege management use in order to set the white list of phone numbers and the device operation can be triggered via the specific SMS text from the white list of phone numbers.
Page 68 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default 3 - 4 5...
Page 69 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default Short Message Center Number Input the short message center number supported by this SIM card, the input format is: "+" "country code" "short message center number". Example: +8613800100500 Send Short Message Test Confirm SMS module related functions are executed correctly, you can send a...
Page 70: 3.4.13 Event Management
Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Import A List Import the event of SMS to the router 3.4.13 Event Management This page is used for setting up 3 types of events, Communication Verification, Alarm Event and SMS Queries Event. ...
Page 71 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Click “Add” button to create new alarm event and click “Details” to edit the existing event and use ”Delete” button to delete the selected event. Click “Copy” to duplicate the event. Description Default Alarm Name...
Page 72 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default several alarm criteria. For example, the formula can be: {$2048}>100 Event Interval The time interval of alarm sending Repeat Times The repeated times of alarm sending Alarm Status Enable or disable this alarm setting Enable...
Page 73 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default Query Name Input an query name. The name shall be composed of numbers, English letters, and underline. The maximum string length is 9 characters. For example, after you create a query event name query1, you can send a message with content #MSG#query1 to device SIM card number, then it will reply you the content you setup in the event.
Page 74: 3.4.14 Register Management
Cha p ter 3 In tr od ucti on to F unc tio ns Notice {} is a special system symbol, which is used to reference system variables or system registers, like ${Time}, ${Date} or ${Number 0 - 4095}. Please use it with caution. 3.4.14 Register Management This page is used for setting up the rules of register data upload to Cloud.
Page 75: Cloud Service
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Description Default  No: The existed register values in the cloud CAN be overwritten by the new uploaded register values. Notice When the values in the register changes, the results will be uploaded to cloud. Cloud Service 3.5.1 Cloud Configuration...
Page 76 Cha p ter 3 In tr od ucti on to F unc tio ns 4. Click the "Bind" button, the DX router will bind with DIACloud server and established a secure tunnel between DIACloud server and the DX router. Meanwhile a new IP will assigns to DX router from DIACloud server (assign from the cloud HDCP server or a user specified).
Page 77 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 7. In this situation, the browser will access with 192.168.1.1 and the service status will be “Disable”. You can re-enable the service status to rebuild the secure tunnel again in cloud configurations. 8.
Page 78 Cha p ter 3 In tr od ucti on to F unc tio ns Description Default Check if the username and the password are matched. Secure Tunnel Select the device under the account to join in a certain secure tunnel network group.
Page 79: Secure Tunnel Firewall
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter and DNS after the activation, please re-plug the cable to resolve the issue. 3.5.2 Secure Tunnel Firewall In this page, user can set up the firewall for the secure tunnel. Description Default Allow multicast in secure tunnel...
Page 80: Cloud Log
Cha p ter 3 In tr od ucti on to F unc tio ns 3.5.3 Cloud Log Any information cloud event can be exported from this function about Description Default Cloud Log Level You can set different levels of log messages and saved to export to the engineering staff to view.
Page 81: Sd Card Quick Configuration
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter SD Card Quick Configuration DX-2100RW provides the multiple quick configurations via SD Card.  Upgrade the device firmware  Import the device configuration ...
Page 82 Cha p ter 3 In tr od ucti on to F unc tio ns 1 long, 1 short √ × √ 1 long, 2 short × × √ 1 long, 3 short √ √ × 1 long, 4 short × √...
Page 83: Chapter 4 Diacom
Chapter 4 DIACom Table of Contents Introduction to DIACom ................4-2 4.1.1 Select a Suitable Firmware Version ............4-2 4.1.2 DIACom Installation ................4-3 4.1.3 DIACloud Account Registration ..............4-3 4.1.4 Bind DIACloud Account ................4-5 DIACom Operation ..................4-6 4.2.1 Setup a Secure Tunnel ................
Page 84: Introduction To Diacom
 If you need to configure or monitor your controller, you will need to install programmable logic controller software, for example WPLSoft/ISPSoft for Delta PLC. 4.1.1 Select a Suitable Firmware Version Find a suitable DIACom firmware version according to the following table below for your router.
Page 85: Diacom Installation
Cha p ter 4 In tr od ucti on to D IACo m 4.1.2 DIACom Installation Obtain the DIACom firmware package from the official website or from our sales representative. Administrator privileges are required to run and install the package. Uninstall older versions of DIACom before downloading new DIACom firmware package.
Page 86 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter After clicking “CREATE AN ACCOUNT”, a congratulation page will be prompted and an activation email will be sent to the email address you have used as your DIACloud account. You will find an activation email sent from no-reply@diacloudsolutions.com in your email box.
Page 87: Bind Diacloud Account
Take note of the assigned IP address, it will be used when logging to the DIACloud. When selecting “No”: The IP address can be manually set.  The IP address of the DX-2100 Series and the WAN of your connected PC should be in different network segments. 4 - 5...
Page 88: Diacom Operation
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter DIACom Operation 4.2.1 Setup a Secure Tunnel Make sure there is internet connectivity, before creating a secure tunnel between your local PC and router via the DIACom. Http Proxy and Port Agent are configurable in DIACom network setting function, you can set it to avoid the possible limitation.
Page 89 Cha p ter 4 In tr od ucti on to D IACo m Notice  DIACom will automatically determine whether the port agent needs to enable.  Make sure that the external network port 80 and port 443 are opened and can access any network domains and IP addresses After the login is successful, the software displays the security tunnel page.
Page 90 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Notice If it is found that the static IP address is configured from DIACom, the IP address of the local IP address in the bottom right corner will be different from the original setting. Please change according to the following settings.
Page 91 Cha p ter 4 In tr od ucti on to D IACo m After the configuration is complete, click the Create Tunnel button to establish a connection with the specified tunnel. The following information is displayed: tunnel connection status, local delay to the DIACloud cloud server, and the IP address used by the local virtual network adapter.
Page 92: Create A Virtual Serial-Port
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter devices. In addition, you can remotely configure the router's router page (click the device in the device list Of the IP address) of the router for remote configuration. Notice ...
Page 93 Cha p ter 4 In tr od ucti on to D IACo m Notice  If the device's RS-232 / RS-485 is not operating in Transparent mode, the corresponding button is grayed out.  DIACom will prompt an error message if the FW version of DX is under V1.3.3. ...
Page 94 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Click IP address in the DIACom device list or open a browser and input the IP address of the router which is connected to your remote device on the search bar and then log in. Go to the System setup page, select the setup option RS232 or RS485 and input the required information to set up.
Page 95 Cha p ter 4 In tr od ucti on to D IACo m 4.2.4 Automation Startup The user can set Automation Startup for DIACOM, The setting steps see blow. Login to DIACom. Click on the icon button in the upper right corner of the windows, and select "Settings". Boot automatically log in the required configuration is as follows.
Page 96 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Notice  Login must be checked "remember password", otherwise DIACom can not be activated automatically  Confirm that the IP / Serial Port settings do not cause conflicts 4 - 1 4...
Page 97 Chapter 5 DIACloud Table of Contents Introduction to DIACloud ................5-2 5.1.1 Select a Suitable Firmware Version .............. 5-2 Instructions for DIACloud ................5-2 5.2.1 Register and Login ..................5-2 5.2.2 Home ...................... 5-4 5.2.3 Devices ....................5-6 5.2.4 Alarm ....................5-17 5.2.5 Secure Tunnels ..................
Page 98: Introduction To Diacloud
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Introduction to DIACloud DIACloud Web is a web portal of DIACloud cloud platform. Users can check the status of connected industrial device through DIACloud Web, browse data that has been collected, receive warnings, notices and other messages that are sent by cloud platform, create and manage sub-account and virtual safety network and check login and interface logging, to improve the manageability of devices, optimize the device performance and efficiency, save the operation cost and enhance the service quality.
Page 99 CH5 In trod uc ti on to IOT D IACl ou d After clicking “CREATE AN ACCOUNT”, a congratulation page will be prompted and an activation email will be sent to the email address you have used as your DIACloud account. You will find an activation email sent from no-reply@DIACloudSolutions.com in your email box.
Page 100: Home
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Open the DIACloud web page (http://www.DIACloudSolutions.com). Log in using your account that you have registered. 5.2.2 Home The Home Page will show up after login. 5 - 4...
Page 101 CH5 In trod uc ti on to IOT D IACl ou d Item Description Menu User can switch to corresponding function through menu on the left. Devices Total The number of total devices Devices is Online The number of total online devices Alarms in 24 Hours The number of alarms in Recently 24 hours Secure Tunnel is Usable...
Page 102: Devices
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Click , we accept PayPal payments and process credit cards on your order forms. 5.2.3 Devices It will switch to page of device list after clicking “Devices” in navigation bar. Item Description You can filter the device base on you input the key word of the device name.
Page 103 CH5 In trod uc ti on to IOT D IACl ou d Filter base on tunnel group, show all devices or only show the devices under user specified tunnel group. Show the list of device.The information include device’s name, device’s SN, device’s type, storage usage, data usage, the time of binding device.
Page 104 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Item Description It represents that device is on-line if background color is blue, and device is off-line if it is gray.  : Show device names; it can switch device after clicking Operation zone of device the drop down arrow.
Page 105 CH5 In trod uc ti on to IOT D IACl ou d Modbus TCP Client and Closed  RSSI: it means signal strength of device which contains 5 bars; the larger the number of green bars is, the stronger the signal strength is; The latest five Alarm of the current device.
Page 106 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Register Value Show the current register value and data transfer time. You can view the current register of historical data or delete the current register; it can also be configured register.
Page 107 CH5 In trod uc ti on to IOT D IACl ou d Item Description Date Start Set the Date Stare and query the historical data for a specific time Date End Set the Date End and query the historical data for a specific time Register Value History Diagram The latest trend chart of value of register;...
Page 108 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Item Description Length can be set to Word, DWord and Float.  DWord: DWord needs to use two DX internal registers. For example: $2050 and $2051 are set to DWord and it will combin to $2050, $2050 will be LOW Byte and $2051 will be HIGH Byte.
Page 109 CH5 In trod uc ti on to IOT D IACl ou d  Example 2: If you want to convert the register value to the text such as the register value of 1 shows the text as ‘NO’; register value of 2 shows the text as ‘OFF’ Input the code in function (val) {…} as the following picture and Click “Save”...
Page 110 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter SERVICES: This page shows the Device Data Usage, Device Storage Usage and Account Storage Usage for users. Item Description  Device Data Usage: Show device traffic usage till now and total capacity. ...
Page 111 CH5 In trod uc ti on to IOT D IACl ou d  : User can purchase more traffic package for this accoount if need. After successful payment, the moment is ready for use.  After Click the in Data field, it will show the traffic package select page. User can add a package to cart or pay it direct.
Page 112 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter MORE: This page will show the Serial Number, Software Version, Hardware Version, and IMEI for users. Item Description Serial Number Serial number of device Software Version Version information of software Hardware Version...
Page 113: Alarm
CH5 In trod uc ti on to IOT D IACl ou d recover the device by rebinding. 5.2.4 Alarm Click the Alarm in the left menu. The warning information in the latest 7 days will be shown in this page. The warning information includes name and serial number of device, content of warning, status of email that is being sent (green“...
Page 114 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Users can manager the tunnel network in this page. Interface is shown as follows: Description Search the existed tunnel network List all tunnel network under this account Tunnel network List Add a new tunnel network Refresh the tunnel network list...
Page 115: Sub Users
CH5 In trod uc ti on to IOT D IACl ou d Item Description The detail information of tunnel network:  Network Name: User can enter a name of tunnel network.  DHCP Option: Automatic IP Address Assignment by DIACloud. Tunnel Network Information ...
Page 116 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Item Description Search the sub users. Show the list of all sub users in main account. Sub Users List Add a sub user. Refresh the list of sub users.
Page 117 CH5 In trod uc ti on to IOT D IACl ou d  Login to DIACom: Allow the sub user to access the DIACom if the option is enabled.  Tunnel Network: Allow the sub user to access the Tunnel Network if the option of Tunnel Network is checked.
Page 118: Logs
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter When user login to DIACloud with main account and the sub user that we created has been activated. 5.2.7 Logs This page will show the web operation information of some users. It includes: login IP, setup of register, API interface call of DIACloud and other information.
Page 119: Orders
CH5 In trod uc ti on to IOT D IACl ou d 5.2.8 Orders In this page, user can check his all orders. Continue to pay for the unpaid orders or cancel the unpaid orders. Item Description View the order detail information Pay for the unpaid order Cancel the order, order will remove from the list.
Page 120: Profile
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 5.2.9 Profile In this page, QR Code of user, Package info, password management and other information will be shown. Item Description You can get the part information of user by using DIACloud APP and QR Code scanning QR Code.
Page 121 CH5 In trod uc ti on to IOT D IACl ou d 5 - 2 5...
Page 122 Chapter 6 DIACloud APP Table of Contents Introduction to DIACloud APP ..............6-2 6.1.1 Select a Suitable Firmware Version ............6-2 6.1.2 DIACloud APP Installation ............... 6-2 DIACloud APP Function ................6-3 6.2.1 DIACloud APP Login ................6-3 6.2.2 Device List .................... 6-4 6.2.3 Device Details ..................
Page 123: Introduction To Diacloud App
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter Introduction to DIACloud APP DIACloud APP is the client software of DIACloud cloud platform running on mobile devices. The APP supports both iOS and Android mobile system, it enables users to view the field data collected, the locations of the field devices, and the alarms/notifications pushed by the industrial IOT cloud platform, so that keep users posted anytime and anywhere, and therefore improve the manageability of devices, optimize the device performance and efficiency, save the operation cost...
Page 124: Diacloud App Function
Cha p ter 6 In tr od ucti on to D IAC lou d APP DIACloud APP Function 6.2.1 DIACloud APP Login Enter the DIACloud account and password, then click the “Sign in” button to login the APP. Click the “Sign up” to register an account if you don’t have one. Item Description Scan QR code, the QR code is generated by DIACloud Web portal,...
Page 125: Device List
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 6.2.2 Device List Device list will be shown after user login the APP. Device tab and alarm tab will be shown in the APP. In the device tab, the device information will be shown, include the value of registers of the remote device.
Page 126: Device Details
Cha p ter 6 In tr od ucti on to D IAC lou d APP 6.2.3 Device Details Device details will be shown by selecting a device in the device list. Item Description Type Type of the device Time The time when the device is online. IP Address of the device Account DIACloud account activating the device.
Page 127: Registers View
D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 6.2.4 Registers View Click [Register] on the device details page to switch to the register page In the register page, the user can browse the collected data. The register data can be refreshed by the pull-down screen.
Page 128: Alarm List
Cha p ter 6 In tr od ucti on to D IAC lou d APP Click “ok” button, the register value will be pushed to the device. 6.2.5 Alarm List Alarm criteria can be set on the device configuration web page. When the alarm criteria are met, the device will send out alarm messages.
Page 129 D X-2 100 Se ri es Ind ustr ia l 3G C lo ud Ro u ter 6 - 8...

This manual is also suitable for:

Dx-2100rw-ww Dx-2100rw-cn

Delta DX-2100 Series User Manual

Chapter 1 Introduction

Product Overview

Package Checklist

Chapter 2 User Interface

Web-Based GUI Configuration

Diadevice

Chapter 3 Functions

Status

Network

Firewall

System

Cloud Service

SD Card Quick Configuration

Chapter 4 Diacom

Chapter 5 Diacloud

Introduction to Diacloud

Instructions for Diacloud

Introduction to Diacloud APP

Diacloud APP Function

Quick Links

Related Manuals for Delta DX-2100 Series

Summary of Contents for Delta DX-2100 Series

This manual is also suitable for:

Table of Contents
