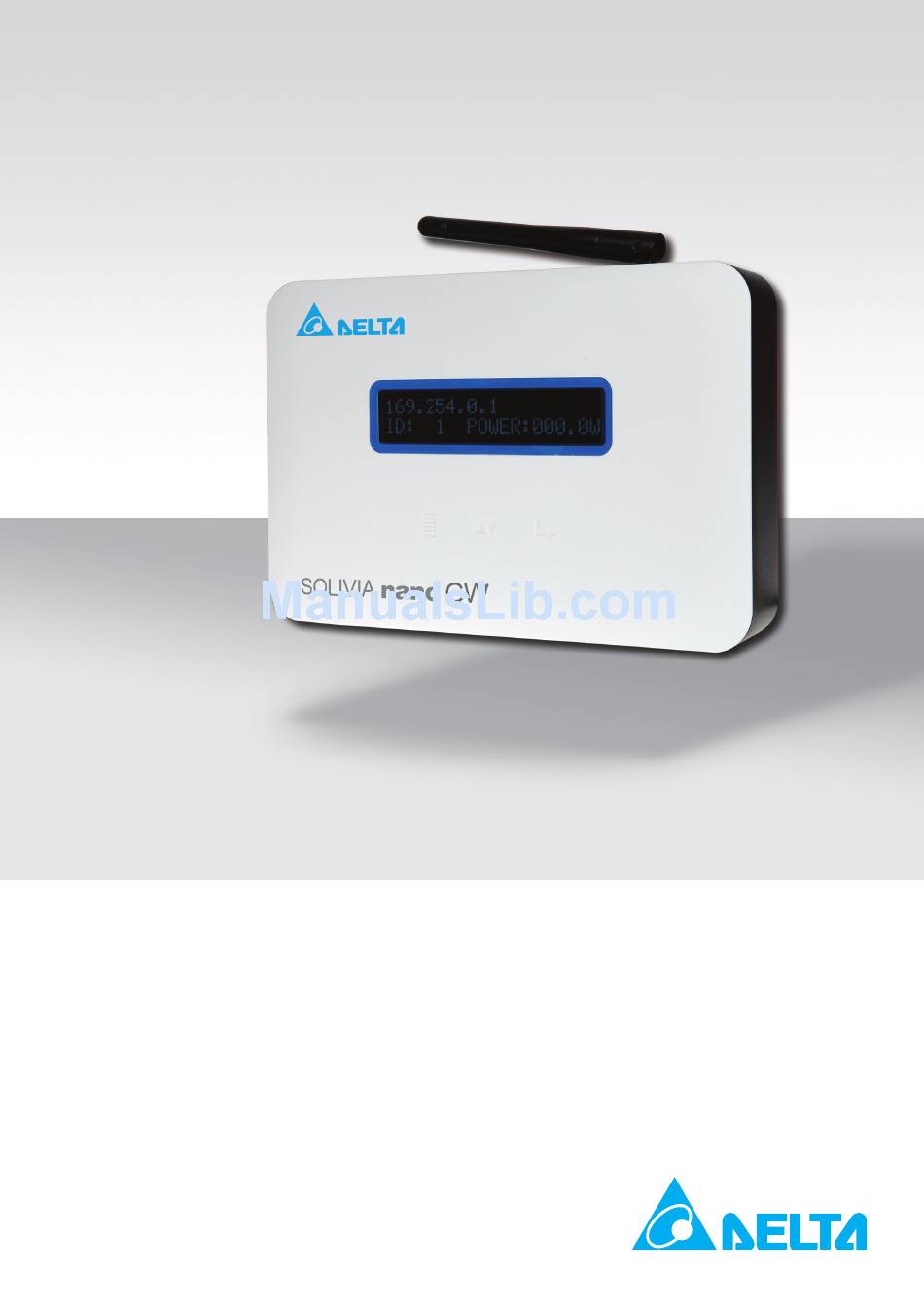

- Page 1 Quick Installation Guide for SOLIVIA nano GW Gateway...
-
Page 2: General Safety Instructions
► The Gateway can be operated safely and normally only if installed and used in accordance with this manual (see IEC 62109-5.3.3). Delta Energy Systems is not responsible for physical injury and property damage incurred by failure to observe the installation and operating instructions in this manual. -
Page 3: Type Label
To mount the Gateway to the wall. Mounting bracket is in the box; screws are not. Use screws tapping screws appropriate for the type of wall. Type label Mounting the Gateway SOLIVIA nano GW Mounting bracket + 2 x Tapping screws 172.4 mm 80.0 mm Before you install the Gateway, write down the two MAC addresses on the type label. -
Page 4: Communication Options
Communication options The Gateway is used for two tasks: For both tasks, you need a PC with an internet browser. Wi-Fi (a) To set up and start the micro inverters (mandatory). works with Windows XP / Vista / 7 and Mac OS X. To connect (b) To connect to the SOLIVIA Monitor Portal where you can to SOLIVIA Monitor, you need an internet connection (e.g. - Page 5 You choose the connection type after fi rst power-up (see section 7, “ Setting up the Gateway”. You can use either WiFi or Ethernet but not both at the same time. Once you have selected a communication type, the other is disabled. To change your selection, press the Reset button To use Gateway for task (a) + (b) WiFi Ethernet selected...
-
Page 6: Setting Up The Gateway
Setting up the Gateway FIRST POWER UP - CHOOSING CONNECTION TYPE After powering up the Gateway for the fi rst time, you have to choose the connection type: ● Wi-Fi device ● Ethernet device See section 6 “Setting up communication” for explanation. Use the SCROLL button to choose the connection type. - Page 7 INFO FORMAT LANGUAGES You can choose whether the information set in Here you can set the language for the display. DEFAULT DISP. INFO. is shown for all micro inverters Use the SCROLL button to choose an option. Press together (TOTAL) or for each one individually. the ENTER button when fi nished.
- Page 8 Configuring Communication on PC The communication variants mentioned in this section are described in section 5, “Set- ting up Communication”. Using WiFi (Communication variants 2 and 4) On your PC, look for available wireless networks. To connect to the Gateway, click on the wireless network with the name “DELTA_ xxxxxxxxxxxx”...
- Page 9 Type in the network key of your router and click on OK button. → When the network key was correct, after a few seconds a new IP address and the letters “DHCP” appear on the display of your Gateway. How the IP address looks like, depends on your router.
- Page 10 Setting up and Starting the Micro Inverters On the local website, click on Grid Settings. In the Country Set dropdown list, select your country/grid. When done, click on the Submit button. Click on Power Limitation. If your grid operator requires you to set a power limita- tion or power factor, you can change the default settings.
- Page 11 Connecting to SOLIVIA Monitor In the address field of your Internet browser, type in the new IP address (which the Gateway received from your router) and press the ENTER button on your PC. Click on User Host Setting. In the new window, you usually do not need to change the domain name “moni- toringservices.solar-inverter.com”.
-
Page 12: Technical Data
