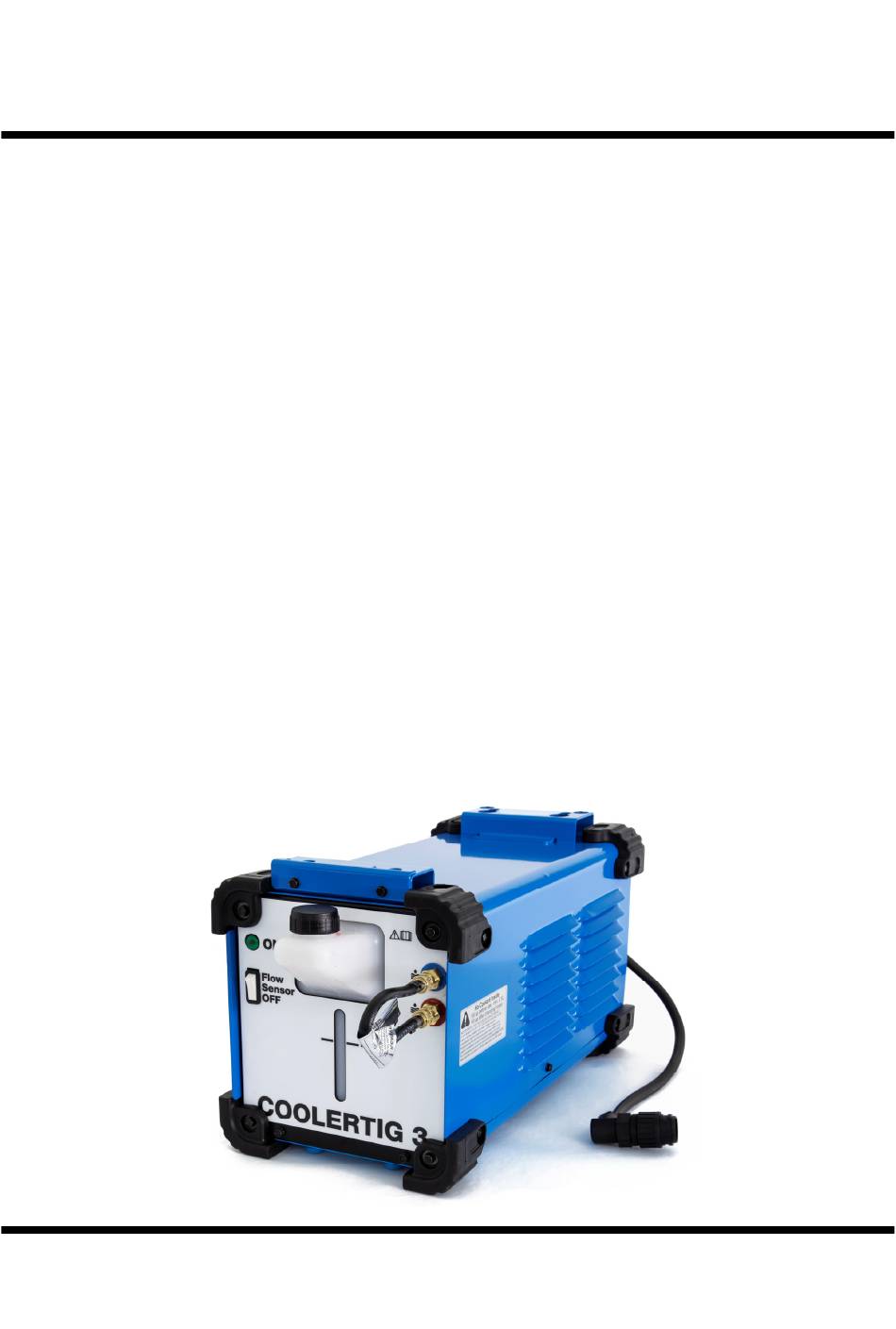

COOLERTIG 3
OPERATOR'S MANUAL
Lincoln Electric Bester Sp. z o.o.
ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland

Advertisement

Table of Contents
loading

Summary of Contents for Lincoln Electric COOLERTIG 3

  • Page 1 IM3083 04/2020 REV01 COOLERTIG 3 OPERATOR’S MANUAL Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland...
  • Page 3 IM3083 04/2020 REV01 COOLERTIG 3 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland...
  • Page 4: Table Of Contents

    12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products.  Please Examine Package and Equipment in case of Damage. Claims for material damaged in shipment must be notified immediately to the dealer.  For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate.
  • Page 5 Technical Specifications NAME INDEX COOLERTIG 3 W000403940 INPUT Input Voltage U Input Amperes I 1max COOLERTIG 3 400 V ± 10% / 3-phase 0,6 A Frequency EMC Class COOLERTIG 3 50/60 Hz PARAMETERS RATING The cooling power of flow 1liter per minute at Maximum pressure rate temperature of 25°C...
  • Page 6: Electromagnetic Compatibility (Emc)

    If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances.
  • Page 7: Safety

    Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.
  • Page 8 CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed.
  • Page 9: Introduction

    Introduction The COOLERTIG 3 is a cooling system designed for use COOLERTIG 3 is delivered empty with no coolant in the witch water-cooler torches and guns: system.  GTAW torches  Recommended equipment, which can be bought by user, MGAW guns up to 500A.
  • Page 10: Installation And Operator Instructions

    The COOLERTIG 3 could be supplied by welding power source using 9-PIN socket (see Figure 2). WARNING To connect the input supply to the COOLERTIG 3, turn off the power to the welding power source and disconnect it ELECTRIC SHOCK can kill.
  • Page 11 6. Minimum Liquid Level: Determine the level of coolant Controls and Operational Features in which the cooler can work. Figure 4. Figure 3. 7. Fuse: Use the 2A slow-blow fuse (see "Spare Parts" 1. Power Indicator Light: This lamp will light section).
  • Page 12 The coolant reservoir can be filled maximum 3,6l coolant.  Fill the coolant reservoir. Minimum 2,5l of coolant has to be poured into the  Connect COOLERTIG 3 to power source. reservoir.  Turn the power source on. Warning: First use the cooler require the pump is WARNING primed by coolant.
  • Page 13 Fill the coolant reservoir – minimum 2,5l.  Undo the nut. WARNING At first using of the COOLERTIG 3 reservoir’s nut has Figure 8. to be removed to avoid generate partial vacuum in cooling system during priming pump. Warning: The water-cooler hoses are connected into the quick connect coupling type, which automatically close ...
  • Page 14 We respond to our customers based on the best cooled. information in our possession at that time. Lincoln Electric  Clean the tank filter. is not in a position to warrant or guarantee such advice,...
  • Page 15 WARNING If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact the nearest authorized Technical Service Center or Lincoln Electric for technical troubleshooting assistance before you proceed.  ...
  • Page 16: Weee

    12/05 Part List reading instructions  Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed.  Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
  • Page 17: Accessories

    Accessories W000010167 FREEZCOOL 9,6L W000403580 PRESTOTIG 315 DC TIG DC INVERTER W000403581 CITOTIG 315 DC TIG DC INVERTER English English...
  • Page 18   Spare Parts ..................................1 Figure A: Machine Assembly ............................1   Electrical Schematic ................................3   CODE: 50428 .................................. 3   WEEE ....................................4   Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland...
  • Page 19 Spare Parts SP50428 REV00 10/2018 ASSEMBLY PAGE NAME CODE NO.: K NO.: FIGURE NO.: 50428 W000403940 COOLERTIG 3 29 30 31 22 23 24 Figure A Figure A: Machine Assembly Item Description Part Number FRONT PANEL R-1019-309-1/08R STICKER R-0000-025-1R QUICK CONNECT COUPLING...
  • Page 20 COVER R-3019-511-1/17R CORNER CAP W95X1147R RADIATOR R-0010-461-1R SHIELD R-1019-311-1/08R BRACKET R-1019-312-1/08R 0873-100-031R PUMP 0871-100-005R REAR PANEL R-3019-285-1/08R FUSE SOCKET 1158-632-032R FUSE CAP 1158-632-033R FUSE F1/2A 1158-660-010R BRACKET R-1019-326-1/08R CABLE CLAMP 1361-599-398R CABLE BUSH 1361-599-399R SUPPLY SOCKET X2 1158-641-157R TRANSFORMER T1 R-4034-108-1R PLATE R-1012-555-1R...
  • Page 21 Electrical Schematic CODE: 50428 Spare Parts – Electrical Schematic Spare Parts – Electrical Schematic...
  • Page 22 WEEE 25 26 27 Recycle Description Ref. FRONT PANEL COVER 12, 28 BRACKET 7, 17, 21 BASE TERMINAL BLOCK CORNER CAP REAR PANEL SHIELD RESERVOIR COMPLETE PUMP RADIATOR FLOW CENSOR CONNECT COUPLING LAMP SWITCH FUSE SOCKET CABLE CLAMP 22, 23 PLATE TRANSFORMER Spare Parts –...
  • Page 23 FERRULE 8, 9 GASKET POWER LEAD Spare Parts – Electrical Schematic Spare Parts – Electrical Schematic...
