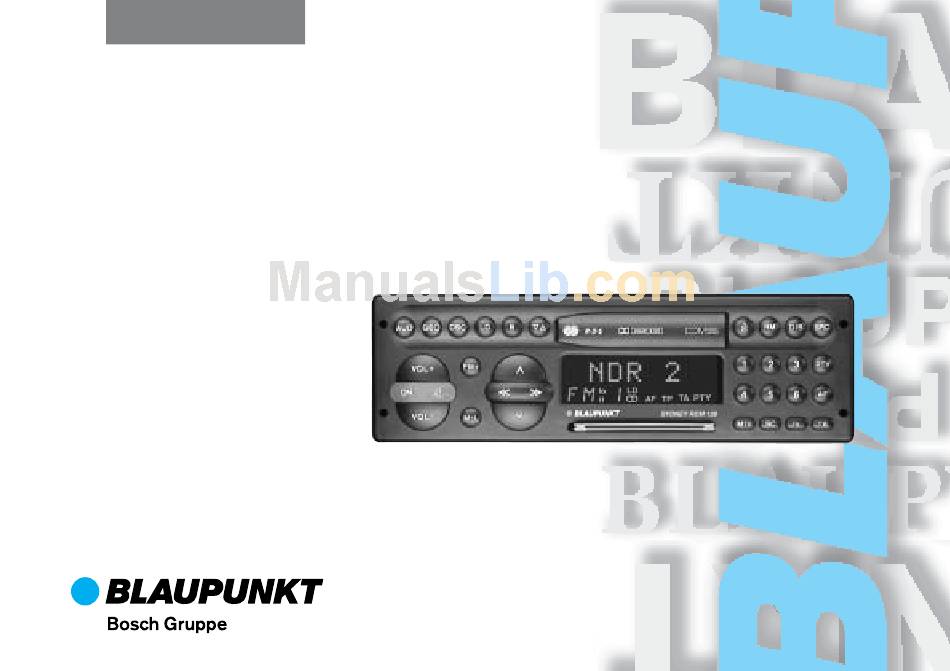

- Page 1 Radio / Cassette Sydney RCM 128 Operating instructions...
- Page 2 23 22 21...
-
Page 3: Table Of Contents
Contents Quick reference ... 30 Important notes ... 36 Precautions ... 36 Traffic safety ... 36 Installation ... 36 Telephone mute ... 36 Accessories ... 36 KeyCard theft protection system ... 37 Putting the unit into operation ... 37 Removing the KeyCard ... 37 “Training”... -
Page 4: Quick Reference
Quick reference 1 Switching on/off with the ON button: Press ON. When switching the set on with the ON button, the KeyCard has to be insert- ed. The unit will play with the pre- adjusted volume. Switching on/off with the KeyCard: The set has to be turned on via the ON button. - Page 5 6 Rocker switch Radio operation Station search Down <</>> Up/Down in short intervals when AF is off <</>> To scroll through the station net- works when AF is on, e.g. NDR 1, 2, 3, 4, N-JOY, FFN, ANTENNE ..Tape operation Title selection (S-CPS) Down...
- Page 6 7 Display e f g i h j a) NDR2 - Station name b) TR 2 - Track (side) 2 of the cas- sette c) VIVALDI - CD name or d) 1 : 52 - CD time (playback time) and number for changer op- eration (optional) e) FM - Waveband...
- Page 7 9 MIX Changer (CDC) operation (optional) MIX CD The CD titles will be played at random. The individual discs are selected in nu- meric order. MIX MAG The CD titles will be played at random. The individual discs are also selected in random order.
- Page 8 ? SRC (source) You can switch between the different audio sources radio, tape, and CDC/ AUX (if activated). @ DIS Radio operation When pressing the DIS button, the fre- quency will be displayed for approxi- mately four seconds. Tape operation When pressing the DIS button, the sta- tion name/frequency will be displayed for approximately four seconds.
- Page 9 H DSC (Direct Software Control) Use the DSC function to customise certain programmable, basic settings to suit your personal needs and prefer- ences. See chapter “DSC program- ming” for more information. I GEO To adjust the balance (left/right) and fader (front/rear) with the rocker switch.
-
Page 10: Important Notes
TA button. Accessories Use only the accessories and spare parts approved by Blaupunkt. You can use the following Blaupunkt prod- ucts with this car stereo: Changer CDC A 05 or CDC F 05 Remote control... -
Page 11: Keycard Theft Protection System
KeyCard theft protection system This car radio is supplied with one KeyCard as standard, though it can also be operated with a second card. If you have lost your KeyCard or if it was damaged, you can buy a new one from your specialised dealer. -
Page 12: Short Additional Memory (S.a.m.)
(optional), or AUX Tape operation is only available if a cassette is inserted. AUX is only available if no Blaupunkt chang- er CDC A05 or CDC F05 is connected. “AUX ON” must be adjusted in the DSC menu. To switch to another source, •... -
Page 13: Radio Operation With Rds
Radio operation with RDS (Radio Data System) The Radio Data System offers you more convenience when listening to FM radio sta- tions. More and more radio stations have begun to broadcast RDS information alongside their programmes. As soon as a programme has been identi- fied, the station name including a regional identifier, if applicable, will appear in the dis- play, for example, NDR1 NDS (regional pro-... -
Page 14: Manual Tuning With
Seek tuning Down Down in short intervals (“AF” must be switched off) Up in short intervals (“AF” must be switched off) Manual tuning with << >> You can also tune in a station manually. Condition: AF and PTY must be switched off (i.e. the symbols do not light up in the display). -
Page 15: Automatically Storing The Strongest Stations With Travelstore
Automatically storing the strongest stations with Travelstore You can automatically store the six most powerful FM stations of your current recep- tion area sorted according to their signal strength. This function is particularly con- venient on longer trips. • Press the FM button for two seconds. -
Page 16: Switching From Stereo To Mono (Fm)
Switching from stereo to mono (FM) If reception is poor, you may get better sound quality by switching to mono: • Press the lo button for approximately two seconds. With mono playback, the stereo sign disappear from the display. Each time the radio is switched on, stereo playback is activated. -
Page 17: Storing Programme Types
If the system is unable to find a station of- fering the selected programme type, the dis- play will show “NO PTY” and a beep tone will be released. The station received be- fore starting seek tuning will be tuned in. You can assign different programme types to each preset position. -
Page 18: Receiving Traffic Programme Stations With Rds-Eon
During tape or CDC operation, the set will also automatically switch to the programme offering the selected PTY within the broad- casting network. After the PTY programme the system will remain in the radio mode. Notice: As earlier mentioned, these functions are currently only supported by a limited number of RDS stations. -
Page 19: Switching The Warning Beep Off
Switching the warning beep off a) Tune into another station offering traf- fic information: • Press the rocker switch or • press a preset button which has a traffic programme station allocated to it. Alternatively: b) Switch off the priority for traffic an- nouncements: •... -
Page 20: Tape Operation
Tape operation The car stereo has to be switched on. The unit automatically switches to tape op- eration when a cassette is inserted. Inserting a tape • Turn on the set. • Insert a tape. The tape will be automatically transported to the playback position. -
Page 21: Scanning Cassette Titles With Scan
Scanning cassette titles with SCAN You can have the cassette titles played brief- ly by using the scan function. If you like a title, stop the scan to continue listening to that track. To start/stop the scan function: • Press the SC button briefly. You can individually adjust the scan time in the DSC menu (see “DSC programming - SCANTIME”). -
Page 22: Cd Changer Operation (Optional)
CD changer operation (optional) This car stereo offers you convenient con- trol of a Blaupunkt CD changer CDC-A05 or CDC-F05. These changers are not includ- ed in the scope of delivery and can be pur- chased from your specialised dealer. -
Page 23: Storing The Display Mode
To switch the display mode: • Press DIS during CD playback. The display mode and the corresponding setting or value will briefly show on the dis- play panel, e.g. “TIME”, “2 : 32”. If you have selected “NAME” without hav- ing specified a name for the corresponding disc, “CD PLAY”... -
Page 24: Dsc Programming
Proceed as described above for all of the CDs/magazines for which the entered name is to be maintained. • After having updated the last maga- zine, press To quit the function, • press DSC. The system has saved the name informa- tion for all of the CDs which were inserted. - Page 25 SPEECH In future many RDS radio stations will differentiate be- tween music and speech programmes. You can alter the tone for speech programmes from between “SPEECH 0 ... 4”. SPEECH 0: Music/speech off SPEECH 1: Linear reproduction (bass, treble and Loudness set to “0”) SPEECH 2-4: Different settings for vol-...
-
Page 26: Overview Of The Dsc Factory Settings
accept any operations ex- cept from being switched off. Re-insert the card. PTY LANG To select the programme type language: DEUTSCH or ENGLISH SCANTIME Use this function to set the scan time for the radio or CD player from between five and 30 seconds. -
Page 27: Appendix
Address of the next service centre in your vicinity (only for Germany) If you would like to know the address of the next Blaupunkt service centre of your area without having our service list at hand: Find out your area code. - Page 28 Blaupunkt-Werke GmbH Bosch Gruppe 1/98 K7/VKD 8 622 401 498...
