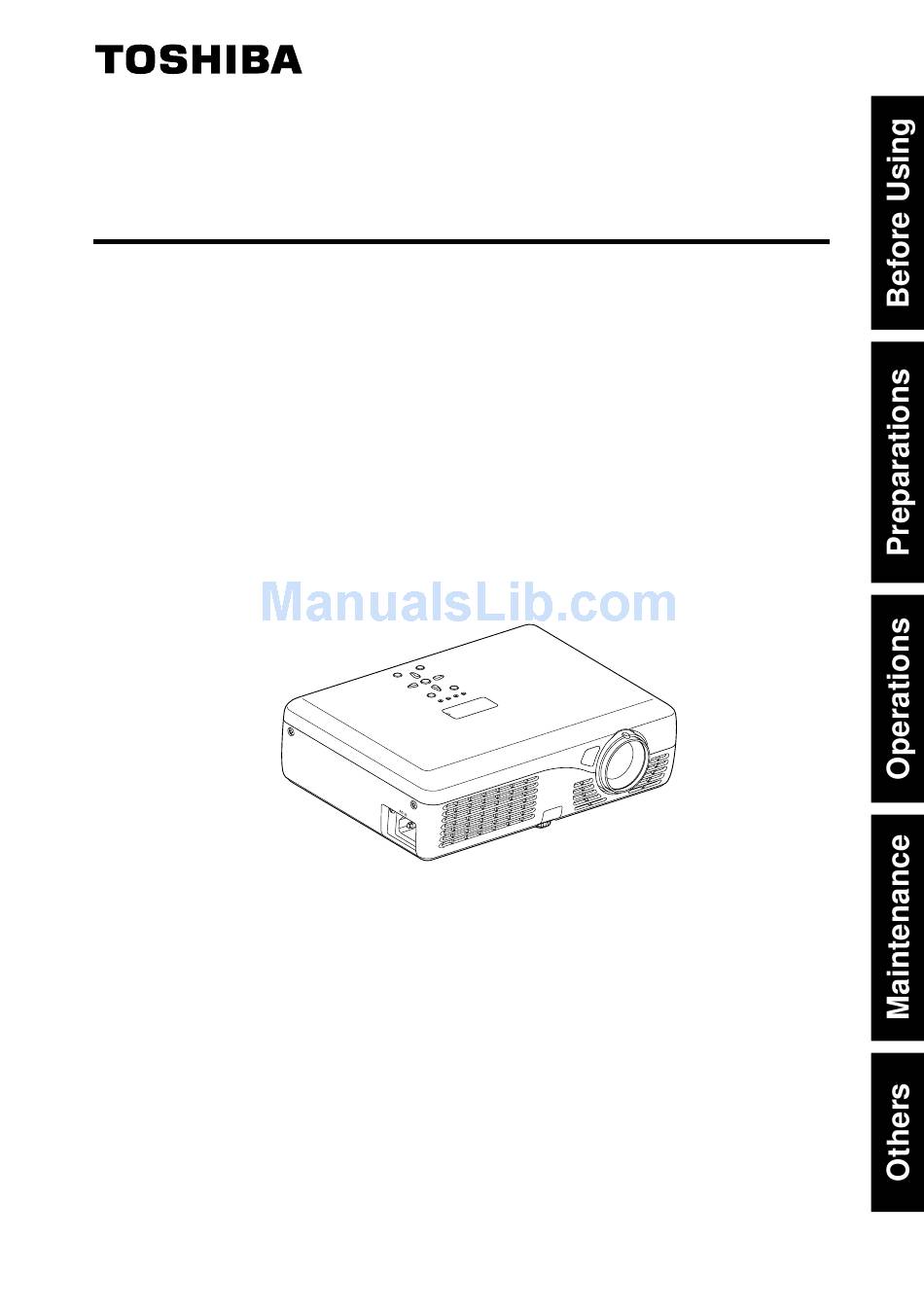

- Page 1 OWNER’S MANUAL 3LCD DATA PROJECTOR TLP-T50M TLP-T50 TLP-S30 TLP-T50M / TLP-T50 / TLP-S30 (XGA / with a mouse remote control) (XGA) (SVGA)
-
Page 2: Safety Precautions
WARNING: Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate USA only the equipment. - Page 3 IMPORTANT SAFETY INSTRUCTIONS (Continued) 5. Heat 8. Power-Cord Protection The product should be situated Power-supply cords should be away from heat sources such as routed so that they are not likely to radiators, heat registers, stoves, or be walked on or pinched by items other products (including placed upon or against them, amplifiers) that produce heat.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS (Continued) 16. Damage Requiring Service 18. Servicing Unplug this product from the wall Do not attempt to service this outlet and refer servicing to product yourself as opening or qualified service personnel under removing covers may expose you the following conditions: to dangerous voltage or other a) When the power-supply cord or...
-
Page 5: Power Supply Cord Selection
POWER SUPPLY CORD SELECTION If your line voltage is 220 to 240V, use one of the following types of cable. Plug Plug configuration Plug type Line voltage configuration EURO 220 – 240V 220 – 240V Use a 5A fuse which is approved by ASTA or BSI to BSI362. -
Page 6: Table Of Contents
EXEMPTION CLAUSES Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, operating by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems. -
Page 7: Checking The Package Contents
(See note) • Mouse remote control receiver (7) RGB cable • Mouse remote control manual (*) Supplied with TLP-T50M Note The shape and number of power cords supplied vary depending on the product destination. The Supplied CD-ROM The supplied CD-ROM contains an owner’s manual including information omitted in the Owner’s manual (Getting started), Acrobat... -
Page 8: Names Of Each Part On The Control Panel And Remote Control
• For the remainder of this manual, buttons are referred to as follows: Selection button ; MENU button • For further information of the mouse remote control supplied with the TLP-T50M, see the Owner’s Manual of the Mouse Remote Control. Names of the connection terminals... -
Page 9: Preparing And Using The Remote Control
Preparing and using the remote control Loading dry-cell batteries Operating the remote control into the remote control Point the remote control toward the q Remove the battery cover. projector’s infrared remote sensor, and press a button on the remote control. •... -
Page 10: Connection
Connection Before connection • Read the owner’s manual of the device to be connected to the projector. • Some types of computer cannot be used connected to this projector. Check for an RGB output terminal, supported signal p.36 • Turn off the power of both devices before connection. •... -
Page 11: Basic Operations
Turning the power on and off (Continued) Turning the power off Press the ON/STANDBY button. A message appears on the screen, confirming that you wish to shut off the power. This message will disappear after a moment. (This operation is no longer valid after the message disappears.) Press the ON/STANDBY button again. -
Page 12: Using Handy Features
Basic operations (Continued) Projector placement angle adjustments The placement angle and the height of the projected image can be adjusted by the foot adjuster. q Lift up the front of the projector until it is at the desired angle, then press the foot adjuster release button. -
Page 13: Correcting The Keystone Distortion (Keystone)
Using handy features (Continued) Correcting the keystone distortion (Keystone) p.22 When the foot adjuster is used to change the projection angle, the picture will undergo keystone (trap- ezoidal) distortion. This projector is capable of correcting this keystone distortion. Before correction After correction q Press the AUTO KEYSTONE button. -
Page 14: Using The Menus
Using handy features (Continued) Displaying Information [Status display] This displays information about the input signal, lamp use time, etc. Press the button twice (or press the CALL button on the remote control once). When the button is pressed once, the Setting display menu appears. -
Page 15: The Image Adjustment Menu
Using the menu (Continued) The image adjustment menu Use this menu to adjust image-related items. Items Items that can be adjusted are marked with “Yes”, and those that cannot are marked with “No”. Item Description Computer Y/P Contrast Lower Higher Brightness Darker Brighter... -
Page 16: Air Filter Cleaning
Air filter cleaning The air filter prevents dust and debris from getting inside the projector. Never run the projector with the filter removed. It is recommended that the air filter is cleaned regularly. (A recommended measure is about once for every 50 hours of use.) CAUTION •... -
Page 17: Trouble Indications
Lamp replacement (Continued) Remove the lamp cover. Loosen the 2 screws, then pull up to direction of the arrow with your fingers on the area shown in the figure to remove the lamp cover. Pull out the lamp. Loosen the 2 screws holding the lamp in place, and pull on the handle to remove the lamp. -
Page 18: Before Calling Service Personnel
Before calling service personnel If you think something is wrong, check the following before contacting customer service. p.33 Please see “Trouble indications” as well. If This Happens Check • Is the power cord plugged in? Is it connected to the projector? No power •... -
Page 19: List Of Supported Signals (Rgb Signals)
Specifications (Continued) List of supported signals (RGB signals) This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show flicker or streaking. Please adjust the projector if this happens. (Press the AUTO SET button, and adjust automatically or manually. Refresh rate Resolution Mode... -
Page 20: Control Terminal
CONTROL terminal Pin assignment Pin No. Signal Name Mini DIN 8 pin connector Interface format 1 Communication method RS-232C, 9600bps, No Parity, Data Length: 8 bits; Stop Bit Length: 1 bit 2 Communication format STX (02h) Command (3Byte) ETX (03h) Only 1 command valid per communication.
