2.

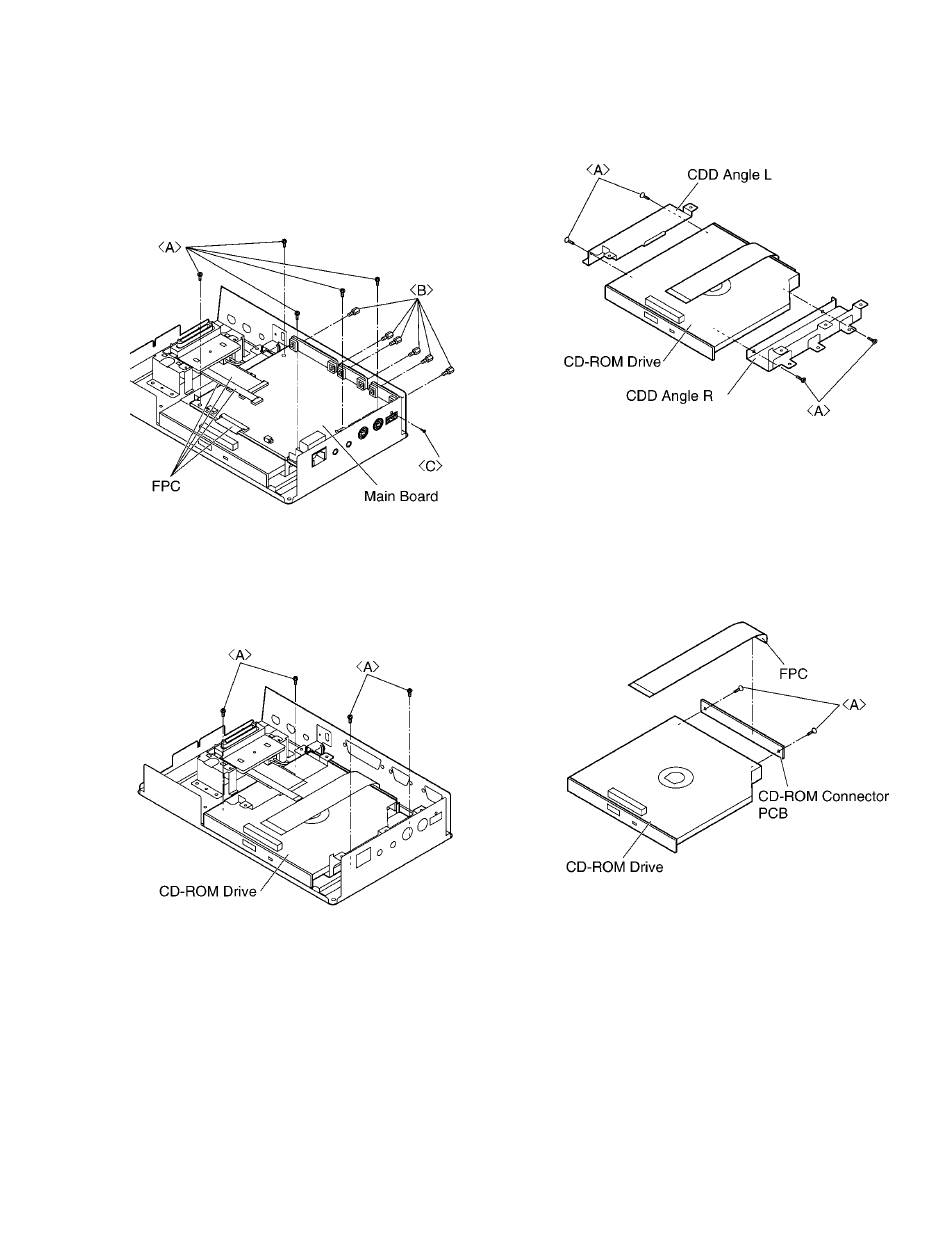

Removing the Main Board
1. Disconnect the 4 flexible cables.
2. Remove the single screw <C> at the back.
3. Remove the 5 screws <A>.
4. Remove the 6 hexagonal screws <B>.
Screw
<A>:XYN26+J5FN
<B>:DFHE5035ZA
<C>:DFHE5025YA
3.
Removing the CD-ROM Drive
1. Remove the 4 screws and release the CD-ROM drive .
Screw
<A>:XYN26+J5FN
3.1.
Removing the left and right CDD
Angle Brackets
1. Remove the 4 screws and release the CDD left & right
angle brackets.
Screw
<A>:DXQT2+D25FNM
3.2.
Removing the CD-ROM Connector
PCB
1. Remove the flexible cable.
2. Remove the 2 screws and release the CD-ROM Connector
Board.
Screw
<A>:DXQT2+D25FNM
8-2
