Panasonic DVD-S1EE Service Manual

Specifications
Power supply:
Power consumption:
Power consumption in standby mode:
Dimensions:
Mass:
Signal system:
Operating temperature range:
Operating humidity range:
Discs played [8 cm (3") or 12 cm (5")]:
(1) DVD (DVD-Video)
(2) DVD-R (DVD-Video, MP3
(3) DVD-RW (DVD-Video, MP3
(4) +R/+RW (Video)
AC230V, 50 Hz
(DVD-S1EE)
AC110-240 V, 50/60 Hz
(DVD-S1GC/GCA/GCS/GCU/PL)
AC120 V, 60 Hz
(DVD-S1PLA)
10 W
approx. 1 W
360 (W) × 251 (D) × 43 (H) mm
1.8 kg (approx.)
PAL 625/50, PAL 525/60, NTSC
(DVD-S1GC/GCA/GCS/GCU/EE)
NTSC
(DVD-S1PL/PLA)
+ 5 to + 35 °C
5 to 90 % RH (no condensation)
*2 , 4 *3 , 4
, JPEG )
*2 , 4 *3 , 4
, JPEG )
DVD-S1EE
DVD-S1GC
DVD-S1GCA
DVD-S1GCS
DVD-S1GCU
DVD-S1PL
DVD-S1PLA
DL4.5 Mechanism Series
Color
(S).......................Silver Type
(5) CD, CD-R / CD-RW (CD-DA, Video CD, SVCD , MP3
*3,4
JPEG )
(6) DVD-R DL (DVD-Video)
(7) +R DL (Video)
*1 Conforming to IEC62107
*2 MPEG-1 Layer 3, MPEG-2 Layer 3
*3 Exif Ver2.1 JPEG Baseline files
Picture resolution: between 320 × 240 and 6144 × 4096
pixels (Sub sampling is 4:2:2 or 4:2:0)
*4 The total combined maximum number of recognizable audio
and picture contents and groups: 1000 audio and picture
contents and 256 groups.
Video output:
Output level:
Output terminal:
S video output:
Y output level:
C output level:
© 2006 Matsushita Electric Industrial CO., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO.CHM0605026CE

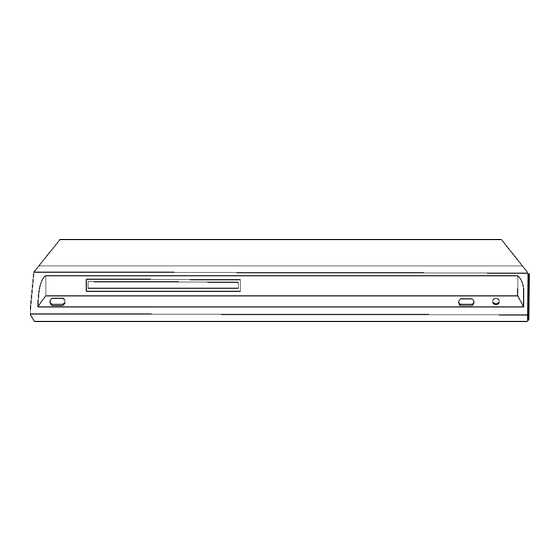

DVD Player
*1 *2 4
1 Vp-p (75 Ω )
Pin jack (1 system)/AV
(DVD-S1EE)
Pin jack (1 system)
(DVD-
S1GC/GCA/GCS/GCU/PL/PLA)
1 Vp-p (75 Ω )
NTSC: 0.286 Vp-p (75 Ω )
PAL: 0.300 Vp-p (75 Ω )
Unauthorized copying
,
,
and
