Metra Electronics 95-7810B Installation Instructions

Honda hr-v 2016-up

Download this manual

Installation instructions for part 95-7810B

Honda HR-V 2016-up

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio trim panel brackets • C) Rear support bracket • D (8) #6 x 3/8" Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1729 Antenna Adapter: • 40-HD11

METRA. The World's best kits.

95-7810B

metraonline.com

™

Table of Contents

Dash Disassembly ................................................. 2

Kit Assembly

– ISO DDIN radio provision ...................................... 3

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 8 mm socket wrench

CAUTION: Metra recommends disconnecting the negative battery

terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your

local Dealership for more information. All accessories, switches,

climate controls panels, and especially air bag indicator lights

must be connected before reconnecting the battery or cycling

the ignition. Also, do not remove the factory radio with the key

in the on position, or the vehicle running. It would be best to

remove the key from the ignition and then wait a few seconds

before removing the factory radio.

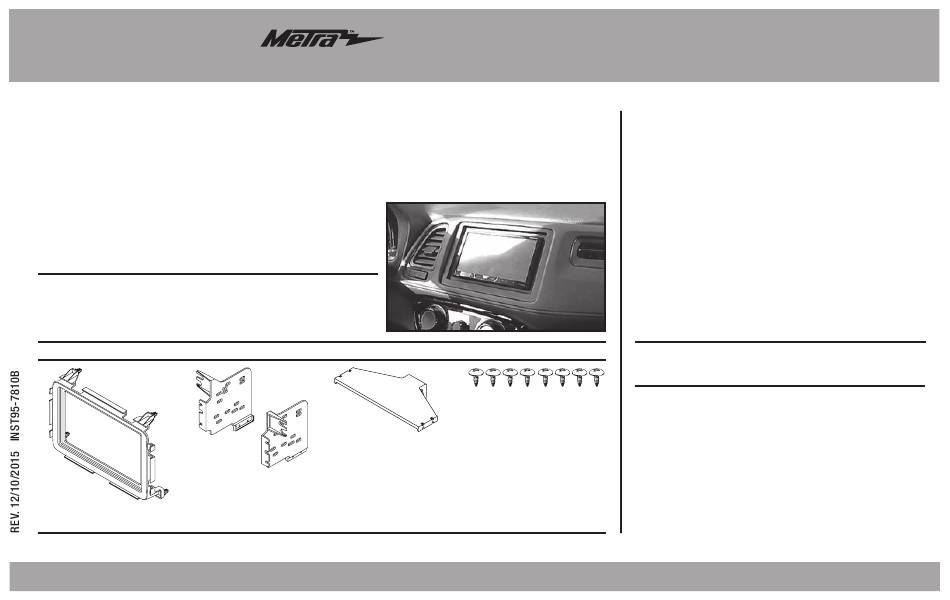

Page 1 Installation instructions for part 95-7810B Table of Contents Honda HR-V 2016-up 95-7810B Dash Disassembly ..........2 Kit Assembly – ISO DDIN radio provision ........3 KIT FEATURES • ISO DDIN radio provision • Painted matte black KIT COMPONENTS TOOLS REQUIRED •...
Page 2 95-7810B Dash Disassembly 1. Open the glove box door. 2. Unclip and remove the trim panel surrounding the radio and a/c vent located to the left of the radio. (Figure A) 3. Remove (2) Phillips screws and (1) 8mm screw securing the factory radio, and then unplug and remove the radio.
Page 3 95-7810B Kit Assembly 1. Attach the radio trim panel brackets 4. Locate the factory wiring harness to the radio trim panel using (4) and antenna connector in the #6 x 3/8” Phillips screws supplied. dash, and complete all necessary (Figure A) connections to the radio.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. metraonline.com ™ © COPYRIGHT 2015 METRA ELECTRONICS CORPORATION...
