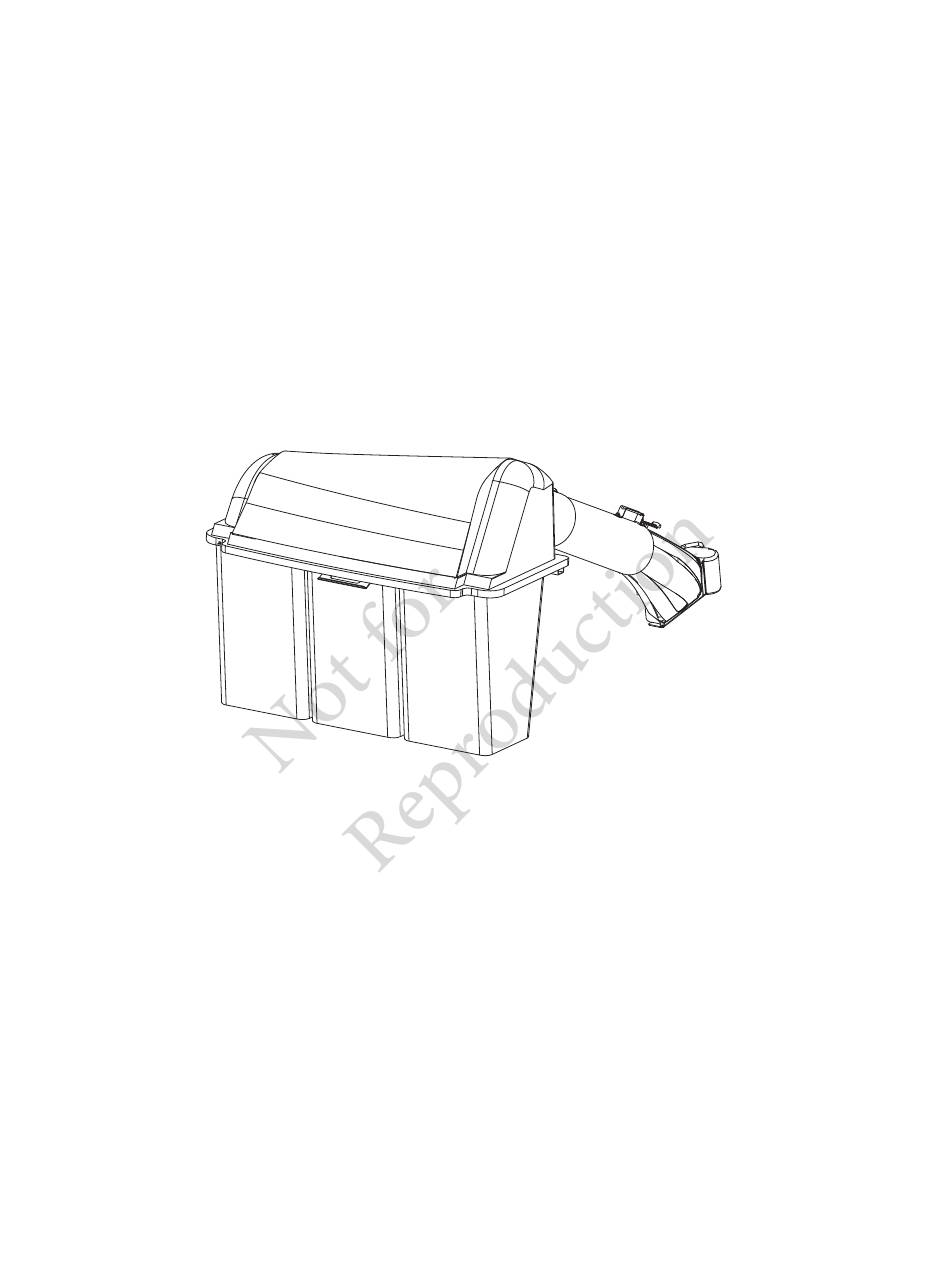

ATTACHMENT
OPERATOR'S
MANUAL
Triple Bagger
Mfg. No.
Description
5600355
ZT Triple Bagger
1739740 -
Rev. C

Advertisement

Table of Contents
loading

Summary of Contents for Briggs & Stratton ZT

  • Page 1 ATTACHMENT OPERATOR’S MANUAL Triple Bagger Mfg. No. Description 5600355 ZT Triple Bagger 1739740 - Rev. C...
  • Page 3: Table Of Contents

    Assembly Hardware Bag Contents ..............Box Contents ................. Operator Safety ................General Warnings ..............Safety Decals ................Assembly..................Baffle Installation ............... Front Weight Carrier Installation ..........Bumper Installation ..............Bag & Cover Support Installation ..........Attach Collector Bags ..............Mower Mounting Hardware Installation ........
  • Page 4: Hardware Bag Contents

    Hardware Bag Contents A - CARRIAGE BOLT, B - CARRIAGE BOLT, C - CARRIAGE BOLT, D - CAPSCREW, 5/16”-18 x 2.0” (Qty. 1) 5/16”-18 x .75” (Qty. 1) 5/16”-18 x 1.25” (Qty. 2) 1/2”-13 x 1.35” (Qty. 2) E - CAPSCREW, F - CARRIAGE BOLT, G - SCREW, 3/8”-16 x 1.0”...
  • Page 5 Hardware Bag Contents N - SPACER, P - SAFETY CLIP, Q - HAIR PIN, .392” ID x .625” OD x .1.32” LG (Qty. 2) (Qty. 3) (Qty. 1) O - SPACER, .390” ID x .625” OD x .687” LG (Qty. 1) R - U-BOLT, 3/8”-16 x 1.125”...
  • Page 6: Box Contents

    Box Contents AA - 46” MOWER BAFFLE AH - BAG & COVER SUPPORT (Qty. 1) (Qty. 1) AB - 52” MOWER BAFFLE AI - COLLECTOR BAGS (Qty. 1) (Qty. 3) AC - WEIGHT CARRIER AJ - BAGGING BOOT (Qty. 1) (Qty.
  • Page 7: Operator Safety

    Operator Safety Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cautions or warnings which must be followed.
  • Page 8: Assembly

    Assembly For 52” Mower Decks WARNING 1. Lift side discharge chute (*, Figure 2). Before beginning any service work turn off the PTO, set 2. Insert baffle (AB) through discharge opening and the parking brake, turn off the ignition, and disconnect position inside deck.
  • Page 9: Front Weight Carrier Installation

    Assembly 4. Set the upright support (AF, Figure 5) onto pins (*) of Front Weight Carrier Installation hitch plate (AE). Insert rod (AG) and secure with hair pin NOTE: Weights are sold separately. (Q) as shown. 1. Install weight carrier (AC, Figure 3) on front of unit securing with two capscrews (D), and two nuts (I).
  • Page 10: Attach Collector Bags

    Assembly Frame Hung Mowers Attach Collector Bags 1. Remove existing hardware from outside of the front- 1. Attach the three collector bags (AI, Figure 7) to bag & right wheel bracket (*, Figure 9). cover support (AH) using grass bag hangers (*) and bag hanger posts (**).
  • Page 11: Tube Assembly

    Assembly Frame Hung Mowers Tube Assembly For non-turbo use only. 1. Rotate latch (*, Figure 13,) into pocket of hardware assembly (**). 1. Ensure latch hardware (*) is in the correct hole for the deck sizes as shown in Figure 11. Note: Removing and reassembling hardware may be required.
  • Page 12: Cover Assembly

    Assembly Assemble Upper & Middle Tube 2. Secure hook (*, Figure 16) of mounting strap (**) onto roller bar support bracket (***). For non-turbo use only. 1. Slide middle tube (AL, Figure 18) into upper tube (AM). 2. See Figure 18 for correct hole location and secure the upper tube to middle tube using screw (G) through hole (*).
  • Page 13: Operation

    Operation Before Operation Clear the lawn of all sticks, stones, wire and other debris which may be caught or thrown by the mower blades. Check grass condition. If wet, wait until later in the day. If grass is wet, the grass catcher is likely to become plugged.
  • Page 14: Collector Removal

    Operation Collector Removal CAUTION Do not leave grass in bagger containers. Empty containers after each use and before storing. Failure to do so may result in spontaneous combustion which could develop into a fire. 1. Lift up cover (AK, Figure 21), then remove and empty bags (AI).
  • Page 15: Warranty

    Warranty BRIGGS & STRATTON POWER PRODUCTS GROUP, L.L.C. OWNER WARRANTY POLICY LIMITED WARRANTY Briggs & Stratton Power Products Group, LLC will repair and/or replace, free of charge, any part(s) of the equipment that is defective in material or workmanship or both. Briggs & Stratton Corporation will repair and/or replace, free of charge, any part(s) of the Briggs and Stratton engine* (if equipped) that is defective in material or workmanship or both.
  • Page 16 Briggs & Stratton Yard Power Products Group Copyright © 2011 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved...
