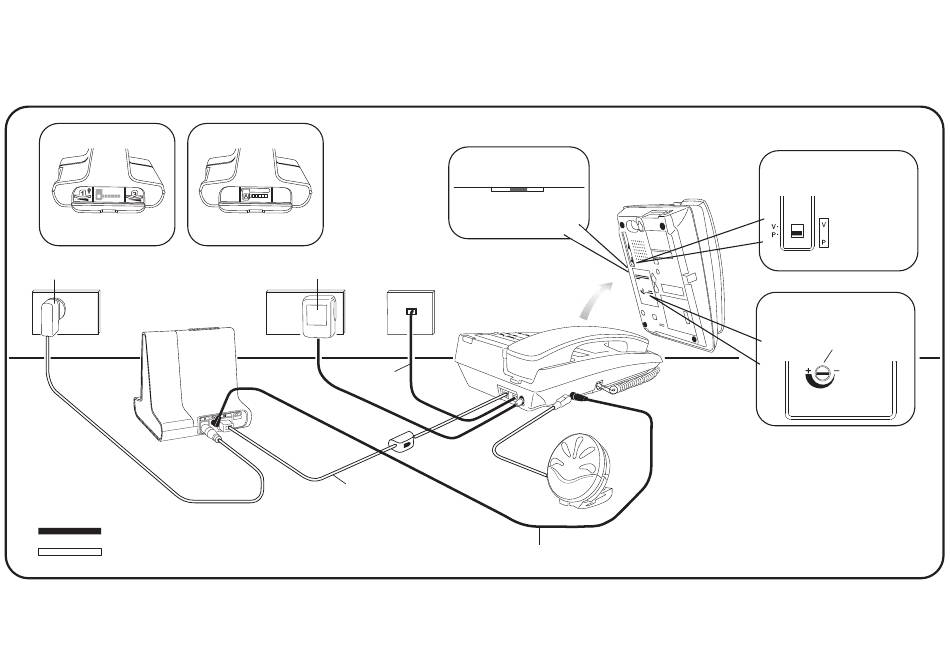

Savi Office (WO100, WO200, W700 etc) & OLI Connection Diagram for IQ750EHS
Step 5
Set Desk Phone Speaking Volume
Set Configuration Switch to "A"
to "1" and Desk Phone Listening
Volume to "3"
Plantronics
Base Power Supply
Savi Office
Mains
(WO100, WO200 etc)
Power
Outlet
Interquartz Cable
Plantronics Cable
Step 4
Telephone
Interquartz
Network
IQ750 9V Adaptor
Outlet
Mains
Power
Outlet
Interquartz
Line Cord
Plantronics Telephone
Interface Cable
Step 3
-
VOLUME
+
Set Volume Slider to
Recommended Setting Position
as shown
IQ750EHS
OLI
Interquartz EHS Cable
Step 1
Set Headset Polarity Switch to "P"
Reversed headset
polarity
Normal headset
polarity
Step 2
Set Headset Mic Adjust Control
fully clockwise to Recommended
Setting Position as shown
HEADSET
MIC ADJUST
27 May 2011
