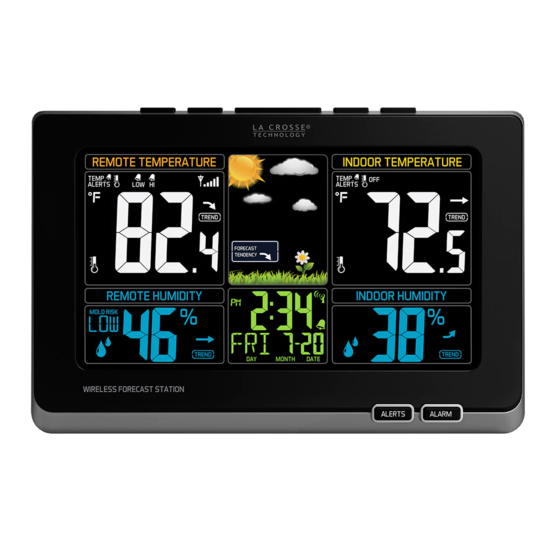

Wireless Color Weather Station
For online video support:
...............................................................................
.................................................................................
........................................................................
.........................................................................
...............................................................................
..............................................................................
.........................................................................
Table of Contents
.......................................................................
..............................................................
.....................................................
........................................................
...........................................................
...............................................................
..............................................................
.....................................................................
..........................................................
..........................................................
...........................................................
......................................................................
........................................................
....................................................................
...............................................................
Instructional Manual
http://bit.ly/LaxTechTalk
.........................................
.....................................
......................................
Model: T85647
DC:072116
1
1
2
2
3
4
4
5
5
5
5
6
6
7
7
7
8
8
8
9
9
10
10
11
11
Advertisement
Table of Contents
Related Manuals for La Crosse Technology T85647
Summary of Contents for La Crosse Technology T85647
-
Page 1: Table Of Contents
Model: T85647 Instructional Manual DC:072116 Wireless Color Weather Station http://bit.ly/LaxTechTalk For online video support: Table of Contents LCD Features ............... Buttons ................Setup ................. Atomic Time ................ Set Time, Date etc............... Alarm Time ................. Deactivate/Activate Alarm ............. Snooze ................ -
Page 2: Lcd Features
LCD Features Alerts (HI-LO-OFF) MIN/MAX | Low Battery Trend Arrow Indoor Temp Mold Risk MIN/MAX Indoor Humidity Trend Arrow Forecast Symbols Forecast Trend AM/PM Atomic Time Atomic Tower | DST Alarm/Snooze Weekday Month/Date Alerts (HI-LO-OFF) MIN/MAX | Low Battery Sensor Strength Remote Temperature Trend Arrow Mold Risk... -
Page 3: Setup
Setup 1. Insert 2-AA batteries (not included) into the TX141TH-Bv2 sensor. Observe correct polarity. 2. Insert 5.0 volt AC cord into the outlet, then into the weather station. 3. (Optional): insert 3-AAA batteries (not included) into the weather station. Observe correct polarity. 4. -
Page 4: Set Time, Date Etc
Set Time, Date, etc. Note: Press one button at a time when setting the station. • Hold the TIME SET button for 3 seconds to enter time set mode. • Press and release the ARROW buttons to adjust the values. Hold to adjust quickly. -
Page 5: Alarm Time
5. Hour | 6. Minutes 7. Year | 8. Month |9. Date 10. Fahrenheit | Celsius Note: Weekday will adjust when year, month, and date are set. Alarm Time Alarm will be active when alarm Hour | Minutes time is set. 1. -
Page 6: Snooze
Snooze • When the alarm sounds, press the SNOOZE/LIGHT button to silence the alarm for 10 minutes. • The snooze icon Zz will flash. • Press any button except SNOOZE/LIGHT to silence the alarm for 24 hours. Backlight (HI-LOW-OFF) When operating with the power cable, the backlight is adjustable: •... -
Page 7: Temperature Alerts
Temperature Alerts Tip: Setting the alerts is one step. Arming the alerts is a separate step (see below). • Hold the ALERTS button for 3 seconds until the remote HI alert value flashes. • Press and release the ARROW buttons to adjust the value. Hold to adjust quickly. -
Page 8: Temperature | Humidity Trend Arrows
Temperature | Humidity Trend Arrows The temperature and humidity trend indicators update with every 30 minutes and look back over the past 3 hours. • Change in temperature (2°F / 1°C). • Change in humidity (3%RH). • 3 hrs comparison which changes on every 1/4 hour E.g.: At 1:00 -compare to 10:00 data;... -
Page 9: Forecast Trend Arrows
Forecast Trend Arrows Pressure is rising. Weather is expected to improve. Pressure is steady. Pressure is falling. Weather is expected to worsen. Low Battery • Battery by Remote Temperature, replace batteries in the sensor. • Battery by Indoor Temperature, replace batteries in the weather station. -
Page 10: Care And Maintenance
• Promptly remove expired batteries. Warranty and Support La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly... -
Page 11: Specifications
Specifications • Temperature Range: 32°F to 122°F (0°C to 50°C) Indoor • Humidity Range: 10% - 99% (RH) • Temperature Range: -40°F to 140°F (-40°C to 60°C) • Alkaline Batteries: -20°F to 140°F (-29°C to 60°C) • Lithium Batteries: -40°F to 140°F (-40°C to 60°C) Remote Note: Temperatures below -20°F (-29°C) require Lithium batteries in the remote sensor... -
Page 12: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
