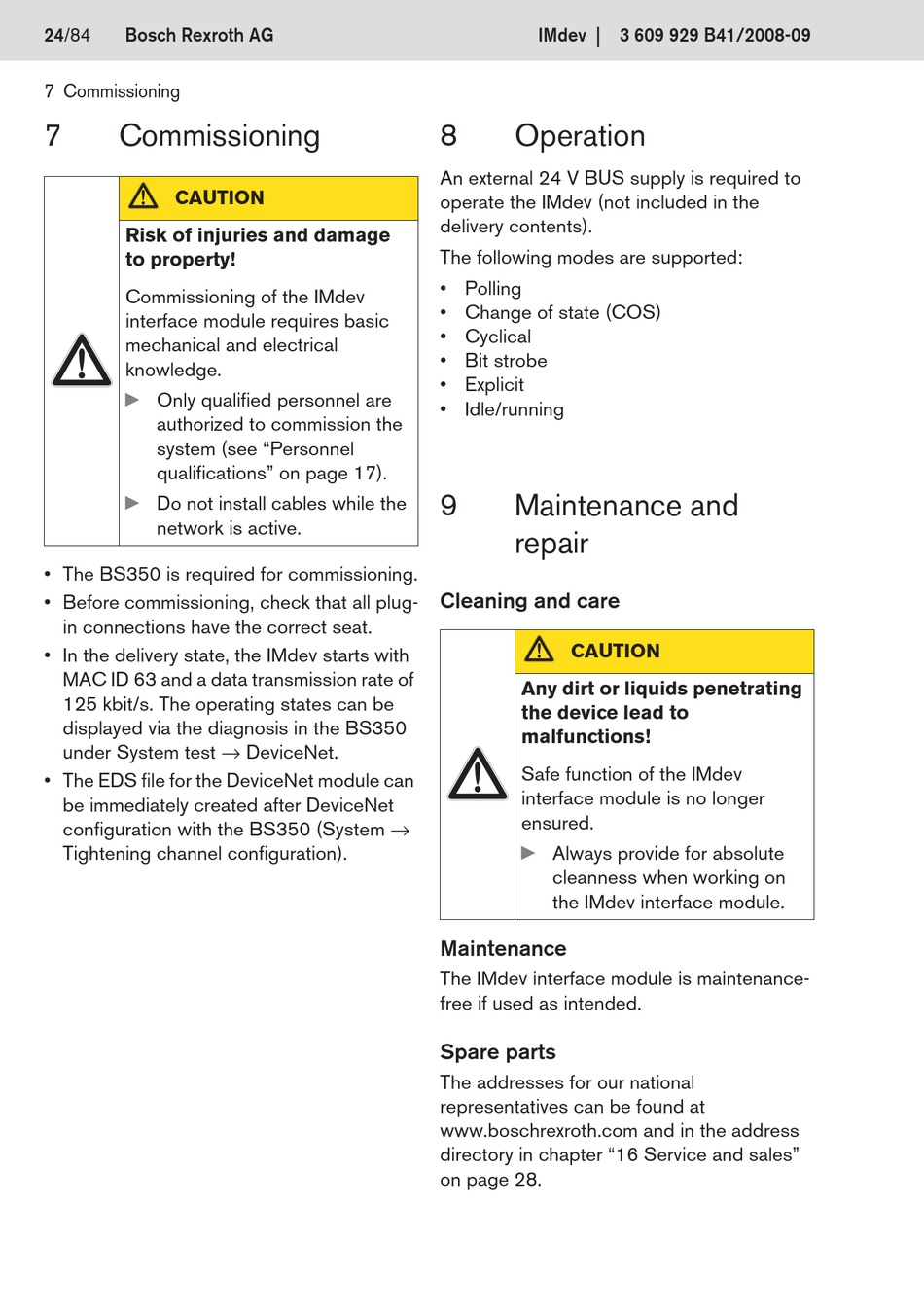

24/84 Bosch Rexroth AG

7 Commissioning

7 Commissioning
CAUTION
Risk of injuries and damage
to property!
Commissioning of the IMdev
interface module requires basic
mechanical and electrical
knowledge.
y Only qualified personnel are
authorized to commission the
system (see "Personnel
qualifications" on page 17).
Do not install cables while the
y
network is active.
• The BS350 is required for commissioning.
• Before commissioning, check that all plug-
in connections have the correct seat.
• In the delivery state, the IMdev starts with
MAC ID 63 and a data transmission rate of
125 kbit/s. The operating states can be
displayed via the diagnosis in the BS350
under System test → DeviceNet.
• The EDS file for the DeviceNet module can
be immediately created after DeviceNet
configuration with the BS350 (System →
Tightening channel configuration).
IMdev | 3 609 929 B41/2008-09
8

Operation

An external 24 V BUS supply is required to
operate the IMdev (not included in the
delivery contents).
The following modes are supported:
• Polling
• Change of state (COS)
• Cyclical
• Bit strobe
• Explicit
• Idle/running
9 Maintenance and
repair
Cleaning and care
CAUTION
Any dirt or liquids penetrating
the device lead to
malfunctions!
Safe function of the IMdev
interface module is no longer
ensured.
y Always provide for absolute
cleanness when working on
the IMdev interface module.
Maintenance
The IMdev interface module is maintenance-
free if used as intended.
Spare parts
The addresses for our national
representatives can be found at
www.boschrexroth.com and in the address
directory in chapter "16 Service and sales"
on page 28.
