3 609 929 B41/2008-09 | IMdev

10 Decommissioning

10 Decommissioning
For details about how to disassemble or
replace your IMdev interface module please
refer to chapter "11 Disassembly and
replacement" on page 25.
11 Disassembly and
replacement
Required tools
• TX9 screwdriver

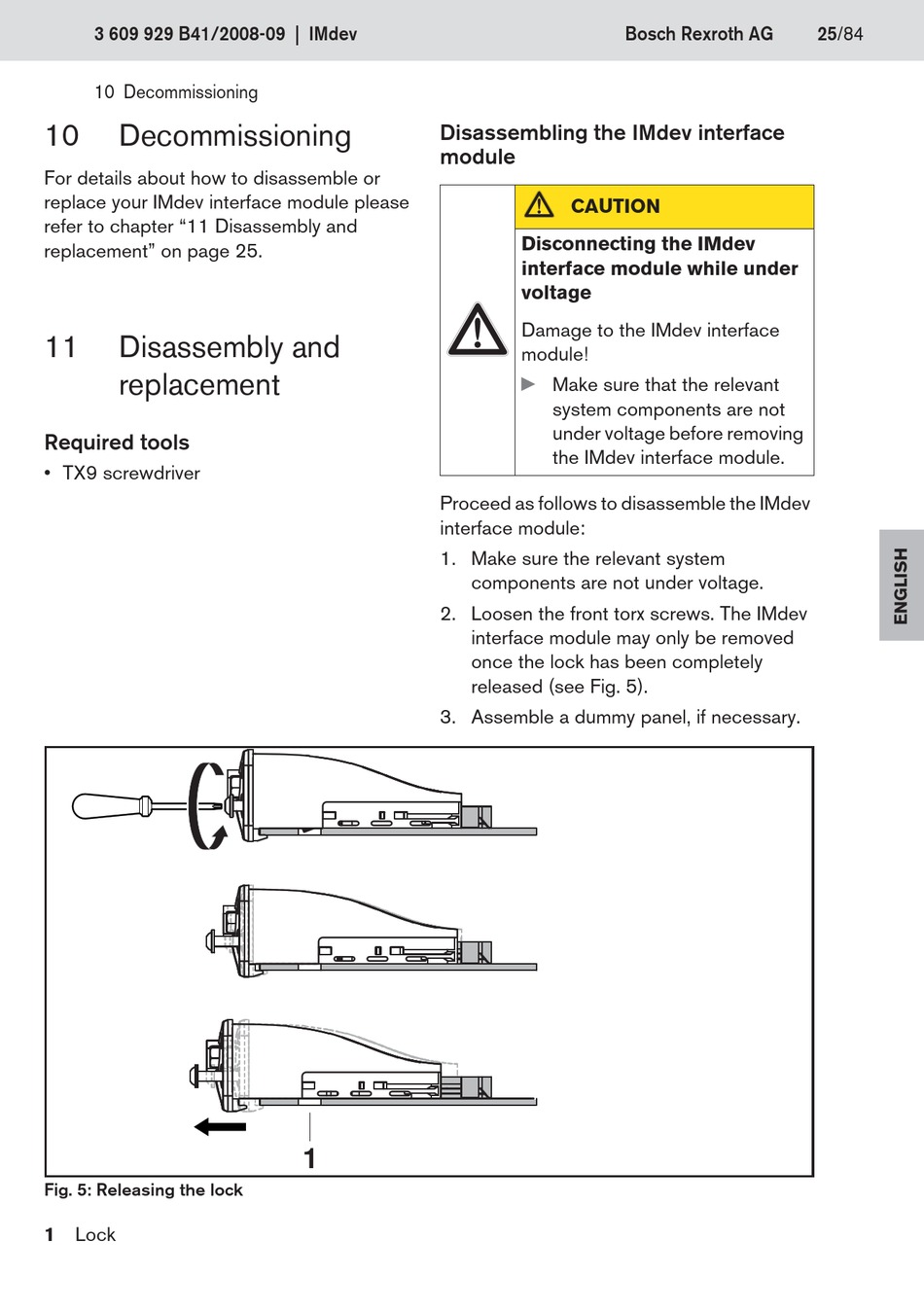

Fig. 5: Releasing the lock
1 Lock
Disassembling the IMdev interface
module
Proceed as follows to disassemble the IMdev
interface module:
1. Make sure the relevant system
components are not under voltage.
2. Loosen the front torx screws. The IMdev
interface module may only be removed
once the lock has been completely
released (see Fig. 5).
3. Assemble a dummy panel, if necessary.
1
Bosch Rexroth AG
CAUTION
Disconnecting the IMdev
interface module while under
voltage
Damage to the IMdev interface
module!
Make sure that the relevant
y
system components are not
under voltage before removing
the IMdev interface module.
25/84
