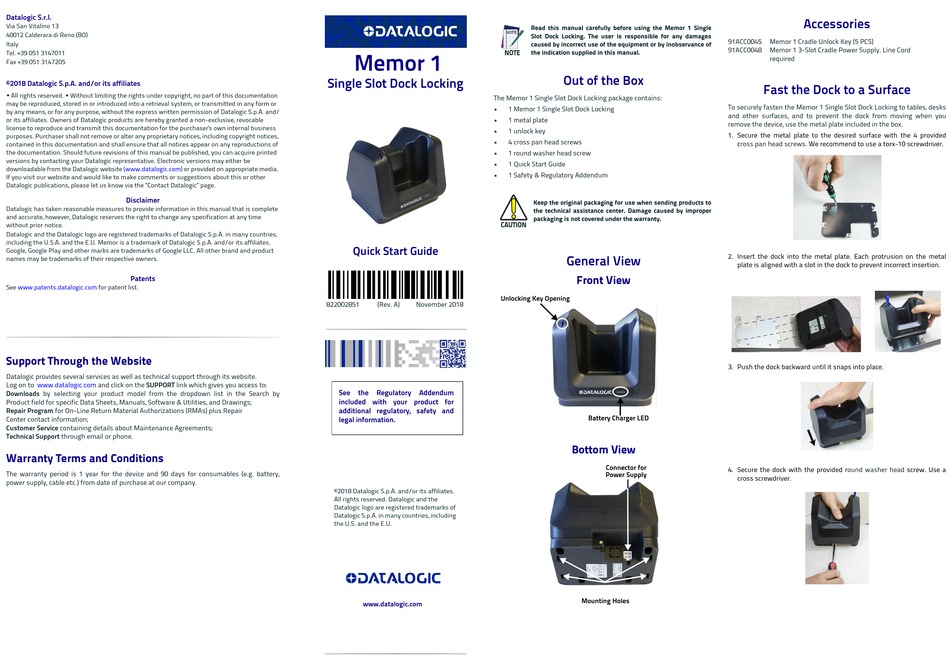

Datalogic Memor 1 Quick Start Manual

Datalogic S.r.l.
Via San Vitalino 13
40012 Calderara di Reno (BO)
Italy
Tel. +39 051 3147011
Fax +39 051 3147205
©2018 Datalogic S.p.A. and/or its affiliates
 All rights reserved.  Without limiting the rights under copyright, no part of this documentation
may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or
by any means, or for any purpose, without the express written permission of Datalogic S.p.A. and/
or its affiliates. Owners of Datalogic products are hereby granted a non-exclusive, revocable
license to reproduce and transmit this documentation for the purchaser' s own internal business
purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices,
contained in this documentation and shall ensure that all notices appear on any reproductions of
the documentation. Should future revisions of this manual be published, you can acquire printed
versions by contacting your Datalogic representative. Electronic versions may either be
downloadable from the Datalogic website (www.datalogic.com) or provided on appropriate media.
If you visit our website and would like to make comments or suggestions about this or other
Datalogic publications, please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is complete
and accurate, however, Datalogic reserves the right to change any specification at any time
without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,
including the U.S.A. and the E.U. Memor is a trademark of Datalogic S.p.A. and/or its affiliates.
Google, Google Play and other marks are trademarks of Google LLC. All other brand and product
names may be trademarks of their respective owners.
Patents
See www.patents.datalogic.com for patent list.
Support Through the Website
Datalogic provides several services as well as technical support through its website.
Log on to www.datalogic.com and click on the SUPPORT link which gives you access to:
Downloads by selecting your product model from the dropdown list in the Search by
Product field for specific Data Sheets, Manuals, Software & Utilities, and Drawings;
Repair Program for On-Line Return Material Authorizations (RMAs) plus Repair
Center contact information;
Customer Service containing details about Maintenance Agreements;
Technical Support through email or phone.
Warranty Terms and Conditions
The warranty period is 1 year for the device and 90 days for consumables (e.g. battery,
power supply, cable etc.) from date of purchase at our company.
NOTE
Memor 1
Single Slot Dock Locking
The Memor 1 Single Slot Dock Locking package contains:
•
•
•
•
•
•
•
CAUTION
Quick Start Guide
Unlocking Key Opening
822002851 (Rev. A) November 2018
See the Regulatory Addendum
included with your product for
additional regulatory, safety and
legal information.
©2018 Datalogic S.p.A. and/or its affiliates.
All rights reserved. Datalogic and the
Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including
the U.S. and the E.U.
www.datalogic.com
Read this manual carefully before using the Memor 1 Single
Slot Dock Locking. The user is responsible for any damages
caused by incorrect use of the equipment or by inobservance of
the indication supplied in this manual.
Out of the Box
1 Memor 1 Single Slot Dock Locking
1 metal plate
1 unlock key
4 cross pan head screws
1 round washer head screw
1 Quick Start Guide
1 Safety & Regulatory Addendum
Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
General View
Front View
Battery Charger LED
Bottom View
Connector for
Power Supply
Mounting Holes
Accessories
91ACC0045 Memor 1 Cradle Unlock Key (5 PCS)
91ACC0048 Memor 1 3-Slot Cradle Power Supply. Line Cord
required
Fast the Dock to a Surface
To securely fasten the Memor 1 Single Slot Dock Locking to tables, desks
and other surfaces, and to prevent the dock from moving when you
remove the device, use the metal plate included in the box.
1. Secure the metal plate to the desired surface with the 4 provided
cross pan head screws. We recommend to use a torx-10 screwdriver.
2. Insert the dock into the metal plate. Each protrusion on the metal
plate is aligned with a slot in the dock to prevent incorrect insertion.
3. Push the dock backward until it snaps into place.
4. Secure the dock with the provided round washer head screw. Use a
cross screwdriver.
