Contemporary

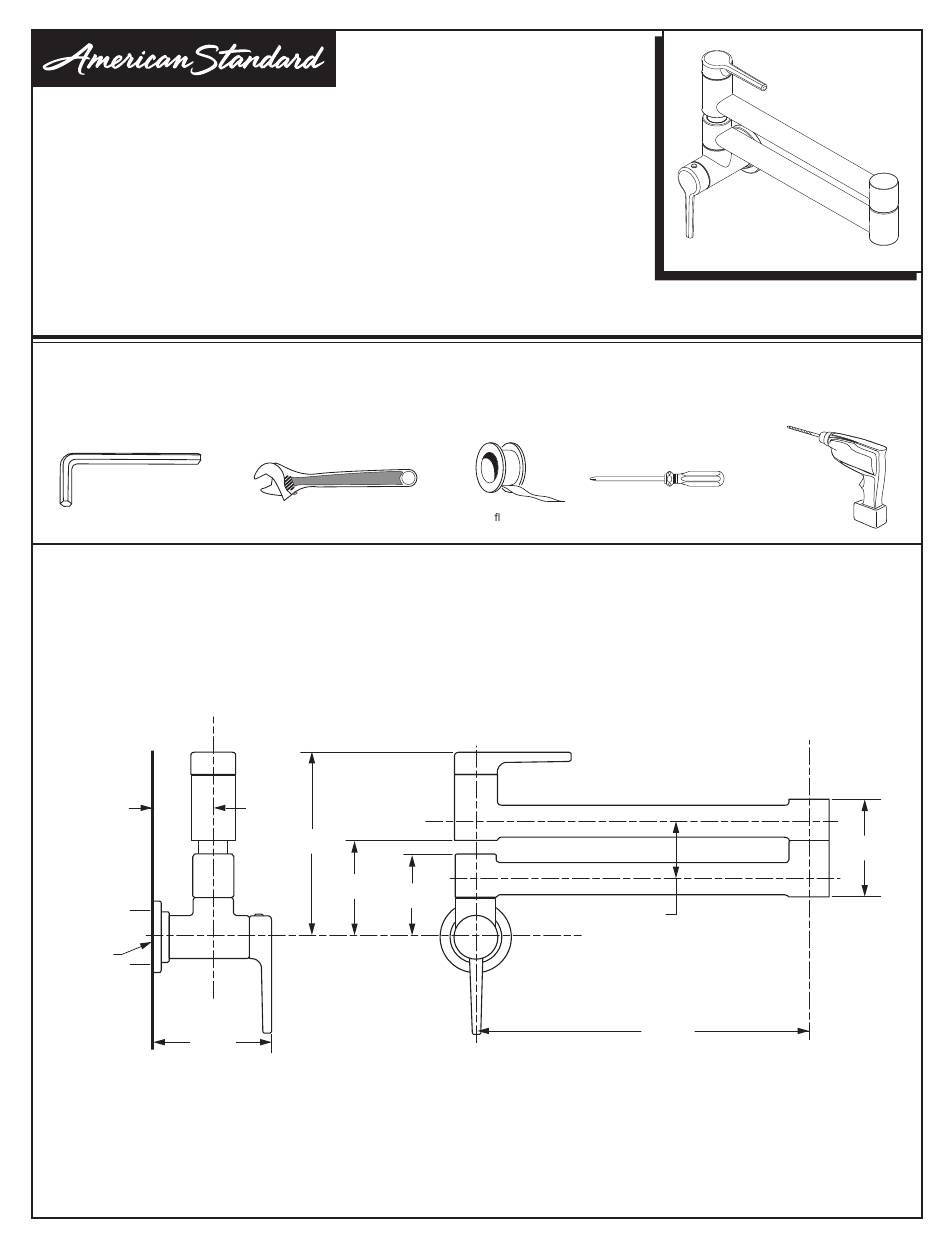

Wall-Mount Pot Filler
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
3/8" Hex Wrench
ROUGHING-IN DIMENSIONS:
• For reference
2" (51 mm)
INLET
1/2" NPT
(21 mm)
3-15/16"
(100 mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
INSTALLATION
INSTRUCTIONS
®
Adjustable Wrench
6-1/8"
(155 mm)
3-3/16"
2-3/4"
(81 mm)
(70 mm)
4803900
Te on Tape
Phillips Screwdriver
1-7/8"
(48 mm)
- 1 -
Certified to comply with ANSI A112.18.1M
Electric Drill
11"
(280 mm)
3-1/4"
(82 mm)
M985014 (3/19)
