Studio-S
®
Pull-Out Kitchen Faucet
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
Flat Blade Screwdriver
1

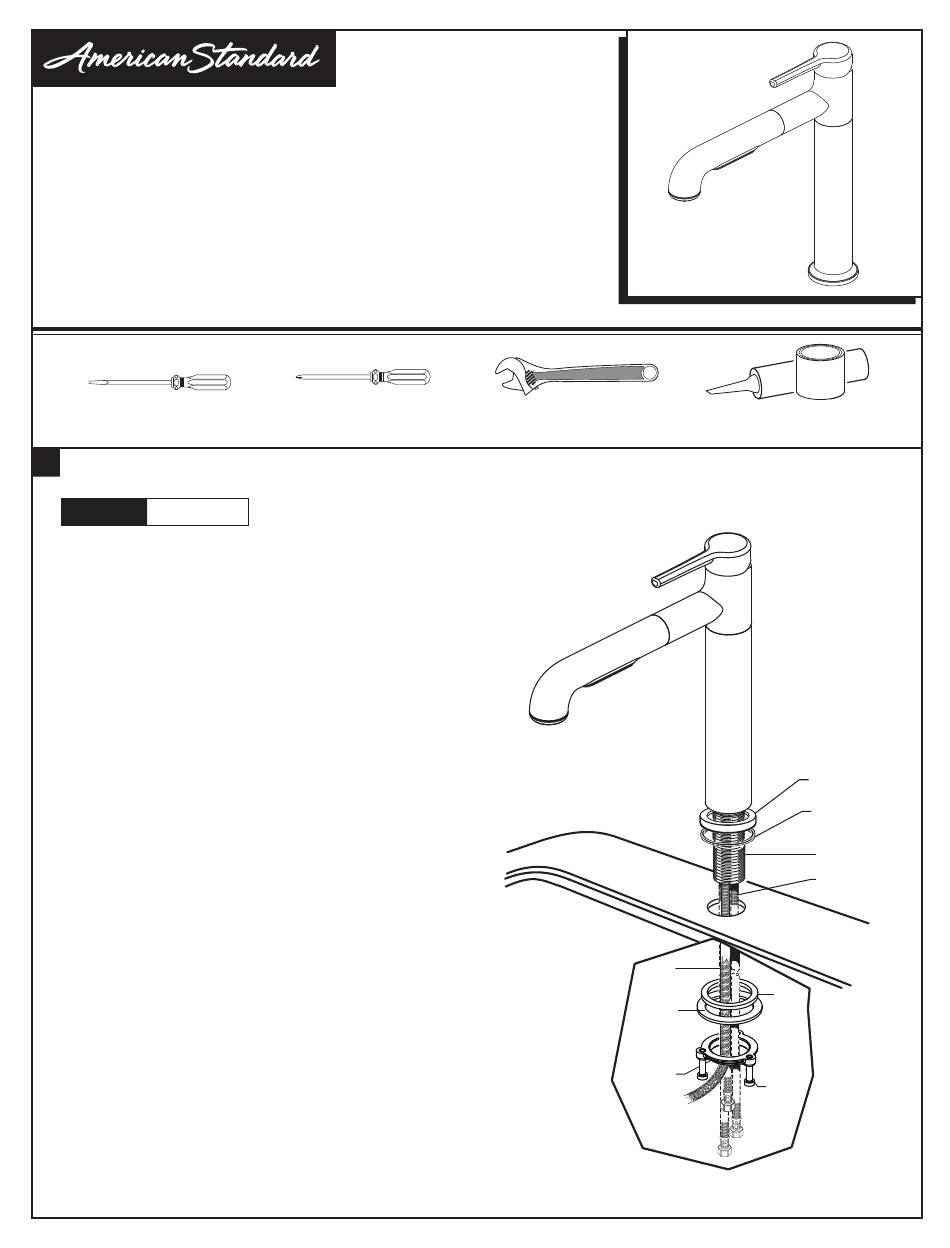

INSTALL FAUCET
Turn off water at
CAUTION
main supply
• Make certain the SEAL (1) is properly seated in recess of
spout base.
• Insert all HOSES (2) and SHANK (3) through MOUNTING
RING (4) and mounting surface. Do not use putty.
• Insert HOSES (2) through RUBBER WASHER (5), BRASS
WASHER (6), and threaded LOCKNUT (7).
• Assemble RUBBER WASHER (5), BRASS WASHER (6), and
threaded LOCKNUT (7) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (7).
• Use a screwdriver to tighten SCREWS (8) on LOCKNUT (7).
Work your way around LOCKNUT (7), tightening the screws
slightly each time until all are snug to ensure even pressure.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
INSTALLATION
INSTRUCTIONS
Philips Screwdriver
- 1 -
4803100
Adjustable Wrench
2
6
7
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
4
1
3
2
5
8
M985010 (3/19)
Advertisement
Table of Contents
Related Manuals for American Standard Studio-S 4803100
Summary of Contents for American Standard Studio-S 4803100
- Page 1 4803100 Studio-S ® Pull-Out Kitchen Faucet Thank you for selecting American Standard... the benchmark of fine quality for over 140 years. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1M...
- Page 2 MAKE WATER SUPPLY CONNECTIONS • Turn off hot and cold water supplies before beginning. • Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left supply (Marked with a Red Stripe) to Hot and right supply (Marked with Blue Stripe) to Cold wall supply.
-
Page 3: Spray Operation
TEST INSTALLED FAUCET • Move HANDLE (1) down into “off” position. • With HANDLE (1) down in “off” position, pull HAND SPRAY (2) from SPOUT (3). SPRAY HOSE (4) should pull approximately 2 feet and direct open SPRAY END (5) into sink. •... -
Page 4: Instructions D'installation
D’INSTALLATION 4803100 Studio-S Robinet de cuisine amovible Nous vous remercions d’avoir choisi American Standard… synonyme de qualité supérieure depuis plus de 140 ans. Pour que l’installation se déroule sans problème, veuillez lire attentivement ces instructions avant de commencer. Certifié conforme aux normes ANSI A112.18.1M OUTILS RECOMMANDÉS... - Page 5 RACCORDS D’ALIMENTATION EN EAU • Fermer l’alimentation en eau avant de commencer. • Raccorder les TUYAUX FLEXIBLES (1, 2) directement à l’alimentation murale. La compression du raccord sur les tuyaux est de 3/8 po. Raccorder l’alimentation de gauche (indiquée par une bande rouge) à l’eau chaude, et l’alimentation de droite (indiquée par une bande bleue) à...
-
Page 6: Entretien
MISE À L’ESSAI DU ROBINET • Mettre la POIGNÉE (1) à la position « off » (arrêt). • Lorsque la POIGNÉE (1) a été abaissée à la position « off », tirer le PULVÉRISEUR À MAIN (2) hors du BEC (3). Le PULVÉRISEUR (4) doit dépasser d’environ 2 pieds. -
Page 7: Instrucciones De Instalación
® Llave para cocina con manija para tirar hacia adelante Gracias por elegir American Standard, el punto de referencia de óptima calidad durante más de 140 años. Para realizar la instalación sin problemas, lea atentamente estas instrucciones antes de comenzar. - Page 8 CONEXIONES DEL SUMINISTRO DE AGUA • Cierre los suministros de agua caliente y fría antes de comenzar. • Conecte los CONDUCTOS FLEXIBLES (1, 2) directamente a los suministros de la pared. Las conexiones en los suministros de accesorios tienen 3/8" de compresión. Conecte el suministro izquierdo al agua caliente (marcado con una franja roja) y el suministro derecho (marcado con una franja azul) al suministro de agua fría de la pared.
- Page 9 PRUEBA DE LA LLAVE MEZCLADORA INSTALADA • Mueva la MANIJA (1) a la posición “off”. • Con la MANIJA (1) en la posición “off”,desenrosque el ROCIADOR (2) del CUERPO (3). La MANGUERA DEL ROCIADOR (4) debera estirar aproxi-madamente 2 pies y regresar directemente el ROCIADOR al fregadero (5). •...
