KVH Industries SAILOR 4300 Configuration And Activation Instructions

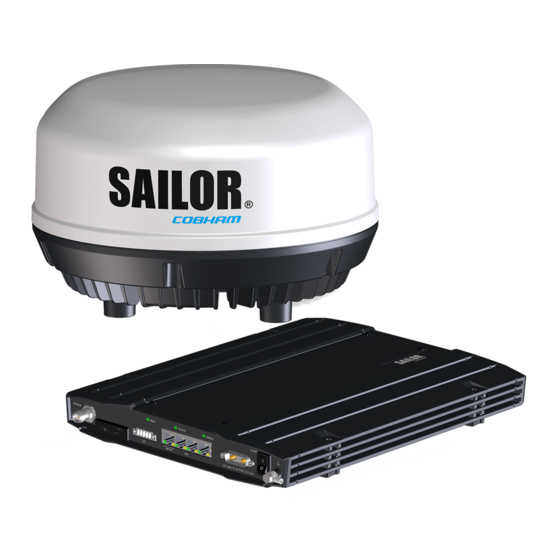

SAILOR 4300 for Iridium Certus
KVH Configuration and Activation Instructions
Important!
Before you begin, you must first install the SAILOR 4300 system as described in the Installation and
Maintenance Manual. Download the latest version of this manual, along with the SAILOR 4300 firmware
update and BDU configuration files from the KVH Partner Portal (www.kvh.com/partners).
The following supplemental instructions explain
how to configure and activate the SAILOR
system for Iridium Certus
Step 1 - Connect the Analog Phone
KVH provides an ATA (analog telephone adapter)
with the system to allow you to connect a standard
analog telephone. Follow these steps and refer to
Figure 1 to connect the phone.
a. Using the supplied Ethernet cable, connect the
"LAN" port on the BDU to the "Internet" port
on the ATA.
b. Using an RJ11 phone cable, connect the analog
phone to the "Phone 1" jack on the ATA.
c. If the customer requires a second phone line,
connect a second analog phone (not supplied) to
the "Phone 2" jack on the ATA.
d. Using the supplied adapter, connect the ATA to
the vessel's AC power.
NOTE: For more details about the ATA, refer to the
ATA's Quick Start Guide.
Step 2 - Connect to the ICM
If the SAILOR 4300 will be used as a backup to a
mini-VSAT Broadband system, connect any LAN
port on the BDU to the designated User Ethernet
®
port on the TracPhone
in Figure 2). KVH's Field Service department will
provide a network diagram showing the port number for
your CommBox configuration.

Technical Support

Europe, Middle East, Africa, Asia-Pacific:
+45 45 160 180
mvbsupport@kvh.com
KVH, CommBox, and TracPhone are trademarks and mini-VSAT Broadband is a service mark of KVH Industries, Inc. Iridium and Iridium
Certus are registered trademarks of Iridium Satellite LLC. SAILOR is a registered trademark of Thrane & Thrane A/S (trading as Cobham
SATCOM). The information in this document is subject to change without notice. No company shall be liable for errors contained herein.
®
4300
®
service from KVH.
system's ICM (see example
© 2019 KVH Industries, Inc., All rights reserved. 54-1323 Rev. A

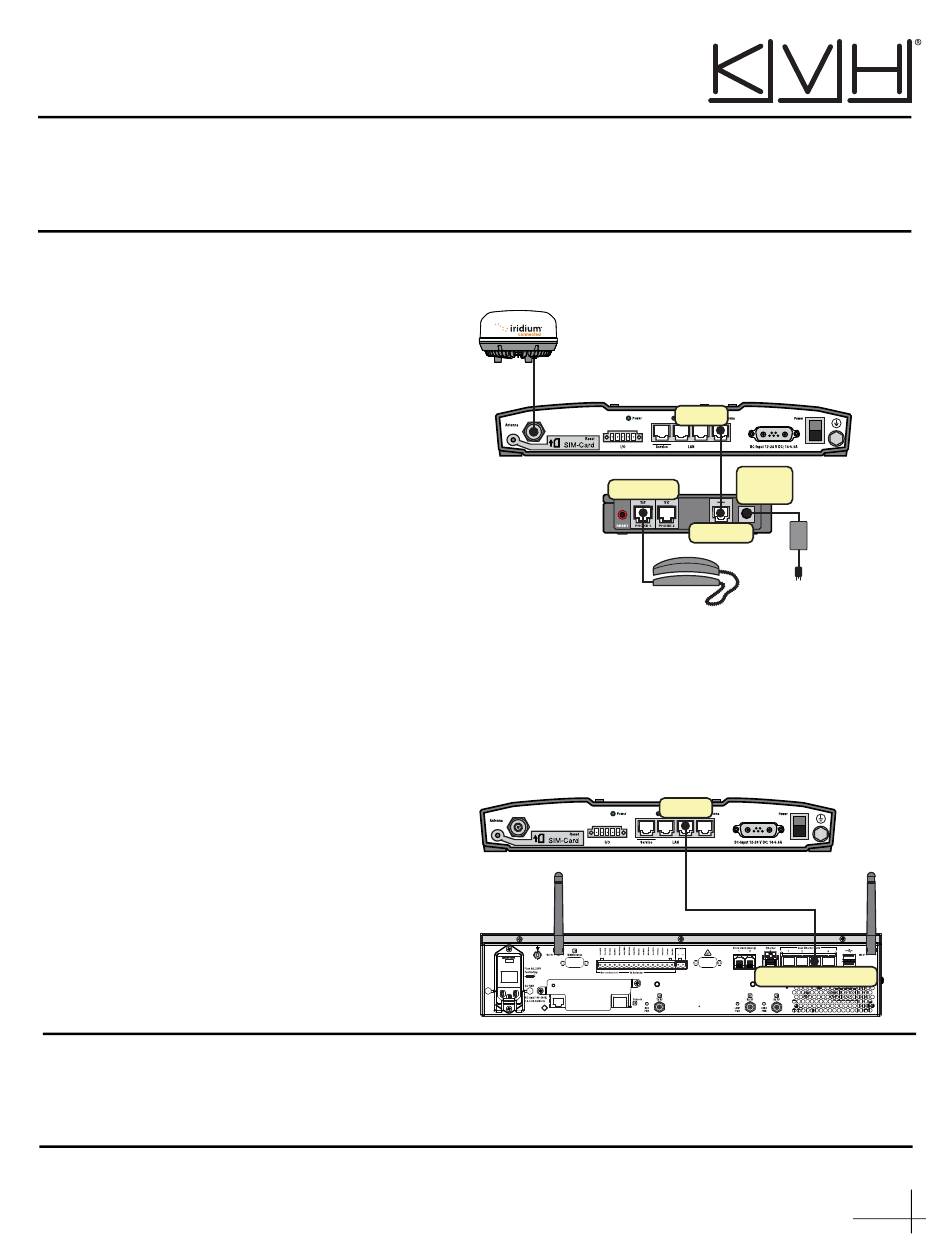

Figure 1: Analog Phone Connection
