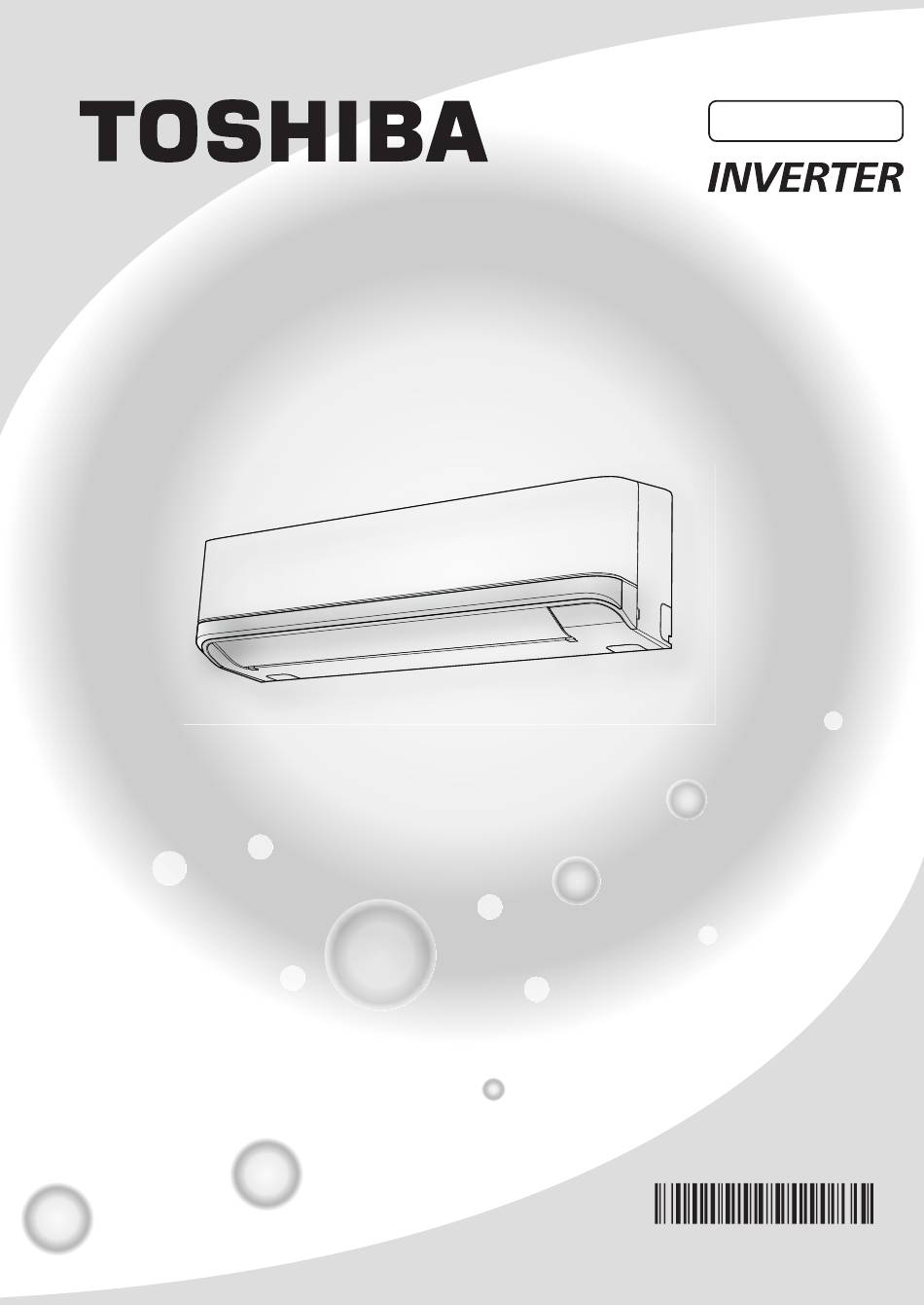

INSTALLATION MANUAL

AIR CONDITIONER (SPLIT TYPE)

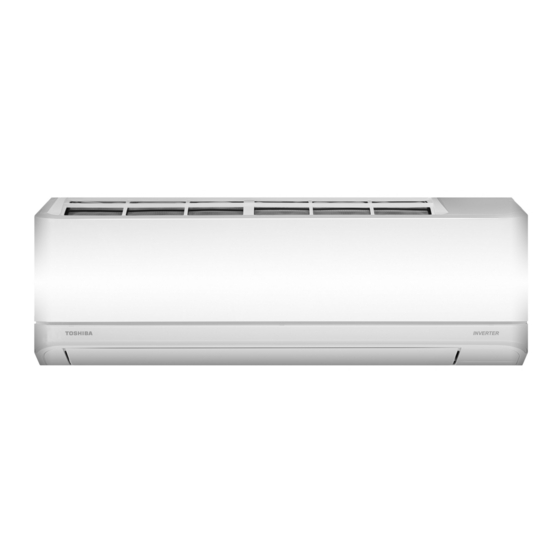

Indoor unit
RAS-18J2KVRG-E
RAS-B22J2KVRG-E
RAS-B24J2KVRG-E
Outdoor unit
RAS-18J2AVRG-E
RAS-22J2AVRG-E
RAS-24J2AVRG-E
R32 or R410A
11 206 501 69

Advertisement

Table of Contents
loading

Summary of Contents for Toshiba RAS-18J2KVRG-E

  • Page 1: Installation Manual

    R32 or R410A INSTALLATION MANUAL AIR CONDITIONER (SPLIT TYPE) Indoor unit RAS-18J2KVRG-E RAS-B22J2KVRG-E RAS-B24J2KVRG-E Outdoor unit RAS-18J2AVRG-E RAS-22J2AVRG-E RAS-24J2AVRG-E 11 206 501 69...
  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS FOR SAFETY ............................1 ACCESSORY PARTS .................................5 INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS ...................6 Optional Installation Parts ...............................6 INDOOR UNIT ..................................7 Installation Place ................................7 Cutting a Hole and Mounting Installation Plate .......................7 Piping and Drain Hose Installation ..........................7 Indoor Unit Fixing ................................8 Drainage ..................................9 OUTDOOR UNIT .................................9...
  • Page 3: Precautions For Safety

    PRECAUTIONS FOR SAFETY PRECAUTIONS FOR SAFETY Read the precautions in this manual carefully before This appliance is fi lled with R32. operating the unit. • Before installation, please read these precautions for safety carefully. • Be sure to follow the precautions provided here to avoid safety risks. The symbols and their meanings are shown below.
  • Page 4 DANGER • FOR USE BY QUALIFIED PERSONS ONLY. • TURN OFF MAIN POWER SUPPLY BEFORE ATTEMPTING ANY ELECTRICAL WORK. MAKE SURE ALL POWER SWITCHES ARE OFF. FAILURE TO DO SO MAY CAUSE ELECTRIC SHOCK. • CONNECT THE CONNECTING CABLE CORRECTLY. IF THE CONNECTING CABLE IS CONNECTED WRONGLY, ELECTRIC PARTS MAY BE DAMAGED.
  • Page 5 • Do not use any refrigerant different from the outdoor unit specifi ed for complement or replacement. Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in a failure or explosion of the product or an injury to your body.
  • Page 6 CAUTION • Exposure of unit to water or other moisture before installation could result in electric shock. Do not store it in a wet basement or expose to rain or water. • After unpacking the unit, examine it carefully for possible damage. •...
  • Page 7: Accessory Parts

    Installation plate × 1 Wireless remote control × 1 Battery × 2 Remote control holder × 1 Toshiba new IAQ fi lter × 2 Mounting screw × 6 Flat head wood screw × 2 Owner’s Manual × 1 Screw × 2 Installation Manual ×...
  • Page 8: Installation Diagram Of Indoor And Outdoor Units

    INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS INSTALLATION DIAGRAM OF INDOOR AND OUTDOOR UNITS For the rear left, bottom left and left piping Wall Hook Installation plate Cut out a piece of SPACER from indoor unit packaging box, roll it and insert between the indoor unit and wall to tilt the indoor unit for better operation.
  • Page 9: Indoor Unit

    INDOOR UNIT INDOOR UNIT When the installation plate is directly mounted Installation Place on the wall • A place which provides the spaces around the indoor unit as shown in the 1. Securely fi t the installation plate onto the wall by screwing it in the upper and diagram lower parts to hook up the indoor unit.
  • Page 10: Indoor Unit Fixing

    How to remove the drain hose NOTE • The drain hose can be removed by removing the If the pipe is bent incorrectly, the indoor unit may unstably be set on the wall. screw securing the drain hose and then pulling out After passing the connecting pipe through the pipe hole, connect the the drain hose.
  • Page 11: Drainage

    2. Put water in the drain pan and make sure that the water is drained out of Drainage doors. 3. When connecting extension drain hose, insulate the connecting part of extension drain hose with shield pipe. 1. Run the drain hose sloped downwards. Shield pipe NOTE •...
  • Page 12: Draining The Water

    IMPERIAL (wing nut type) Draining the Water Outer dia. of copper pipe Tool used Ø6.35 1.5 to 2.0 Holes are provided on the base plate of the outdoor unit to ensure that the Ø9.52 1.5 to 2.0 Pipe defrost water produced during heating operations is drained off efficient. Ø12.70 2.0 to 2.5 If a centralized drain is required when installing the unit on a balcony or...
  • Page 13: Evacuating

    Packed valve handling precautions Evacuating • Open the valve stem all the way out, but do not try to open it beyond the After the piping has been connected to the indoor unit, you can perform the stopper. air purge together at once. Pipe size of Packed Valve Size of Hexagon wrench AIR PURGE...
  • Page 14: Electrical Works

    ELECTRICAL WORKS ELECTRICAL WORKS Model RAS-18J2KVRG-E RAS-B22J2KVRG-E RAS-B24J2KVRG-E Power source 50Hz, 220 – 240 V Single phase Maximum running current 9.5A 10.5A 12.8A Circuit breaker rating 13.5A 16.0A Power supply cable H07RN-F or 60245 IEC66 (2.5 mm or more) Connecting cable H07RN-F or 60245 IEC66 (1.5 mm...
  • Page 15: In Case Of Indoor Unit Connect With 1:1 Outdoor Unit

    In Case of Indoor Unit Connect With 1:1 Outdoor Unit Power Supply Input at Indoor Unit Terminal Block (Recommend) Indoor Unit Outdoor Unit Stripping length of the power Power supply cable Power supply cable Terminal block connect to L N supply cable Terminal block (L N 1 2 3) Earth line...
  • Page 16 Power supply input Wiring Diagram for 1:1 Outdoor Unit Power supply input at Indoor unit Terminal Block (Recommend) Indoor Terminal Block Power supply input CHASSIS INDOOR UNIT OUTDOOR UNIT Outdoor Terminal Block CHASSIS EARTH Power supply input at Outdoor unit Terminal Block (Optional) Indoor Terminal Block...
  • Page 17: In Case Of Indoor Unit Connect With Inverter Multi System (Ims)

    In Case of Indoor Unit Connect With Inverter Multi System (IMS) Power Supply Input at Outdoor Unit Terminal Block Indoor Unit Outdoor Unit Terminal block Stripping length of the Connecting cable 1(L) Connecting cable connect to L 2 3 connecting cable Terminal block (L N 1 2 3) Earth line 50 mm...
  • Page 18: Others

    OTHERS OTHERS Gas Leak Test Test Operation To switch the TEST RUN (COOL) mode, press [RESET] button for 10 seconds. (The beeper will make a short beep.) Check places for the indoor unit. OPERATION / RESET Button Check places for the outdoor unit.
  • Page 20 11 206 501 69...
