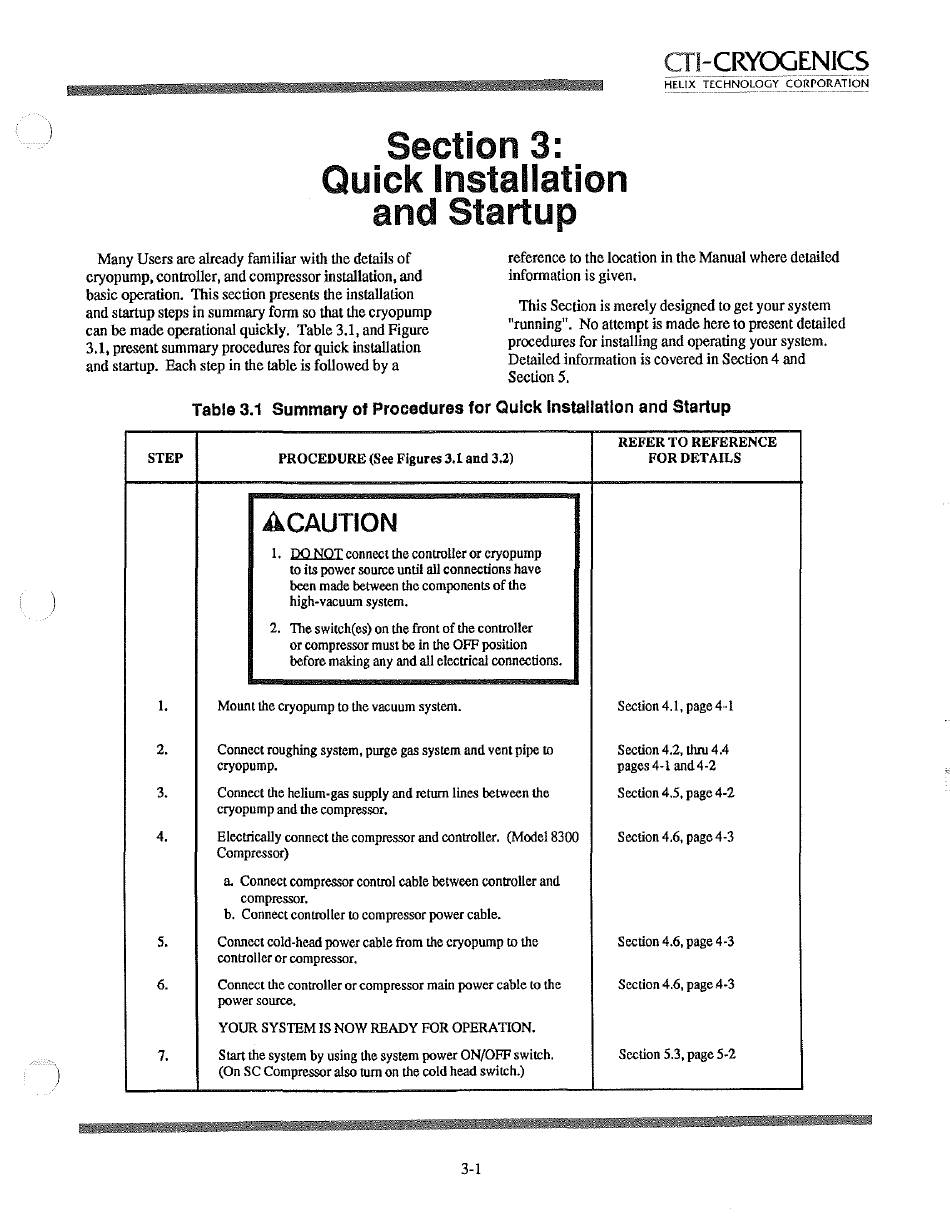

Section 3:
Quick Installation
and Startup
crl-CRYoc.ENICS
HELIX TECHNOLOGY CORPORATION
Many Users are already familiar with the details of
cryopump, controller, and compressor installation, and
basic operation. This section presents the installation
and startup steps in summary form so that the cryopump
can be made operational quickly. Table 3.1, and Figure
3.1, present summary procedures for quick installation
and startup. Each step in the table is followed by a
reference
to
the location in the Manual where detailed
information is given.
This Section is merely designed to get your system
"running". No attempt is made here to present detailed
procedures for installing and operating your system.
Detailed information is covered in Section 4 and
Section 5.
Table 3.1 Summary of Procedures for Quick Installation and Startup
REFER TO REFERENCE
STEP PROCEDURE (See Figures 3.1 and 3.2) FOR DETAILS
ACAUTION
1.
DO NOT connect the controller or cryopump
to
its power source until all connections have
been made between the components of the
high-vacuum system.
2. The switch(es) on the front of the controller
or compressor must be in the OFF position
before making any and
all
electrical connections.
1.
Mount the cryopump
to
the vacuum system.
Section 4.1, page 4··1
2. Connect roughing system, purge gas system and vent pipe
to
Section 4.2, thru 4.4
cryopump.
pages 4-1 and 4-2
3. Connect the helium-gas supply and return lines between the Section 4.5, page 4-2
cryopump and the compressor.
4.
Electrically connect the compressor and controller. (ModeI8300
Section 4.6, page 4-3
Compressor)
a.
Connect compressor control cable between controller and
compressor.
b. Connect controller
to
compressor power cable.
5. Connect cold-head power cable from the cryopump
to
the
Section 4.6, page 4-3
controller or compressor.
6.
Connect the controller or compressor main power cable to the
Section 4.6, page 4-3
power source.
YOUR SYSTEM IS NOW READY FOR OPERATION.
7. Start the system by using the system power ON/OFF switch.
Section 5.3, page 5-2
(On SC Compressor also turn on the cold head switch.)
3-1
