Exploded View Of Intermezzo 1.2S - Infinity INTERMEZZO 1.2s Service Manual

INTERMEZZO 1.2s
4
AMPLIFIER
(NOT FOR SALE)
VIEW
A
(REDUCED)
TO SERVICE THE INTERMEZZO 1.2s
1) Remove the grille and side panel.
2) Extract (8) of the rubber grille retainers shown in view A above; this can be accomplished by
carefully pulling them out of the cavities with long-nosed pliers or similar tool.
3) Remove the (8) Phillips screws that are now exposed.
4) Carefully lift the front baffle, with driver and RABOS controls attached, off the cabinet.
5) To service the amplifier, remove the (8) phillips screws at the rear of the enclosure, and push
the amplifer assemby out the front.

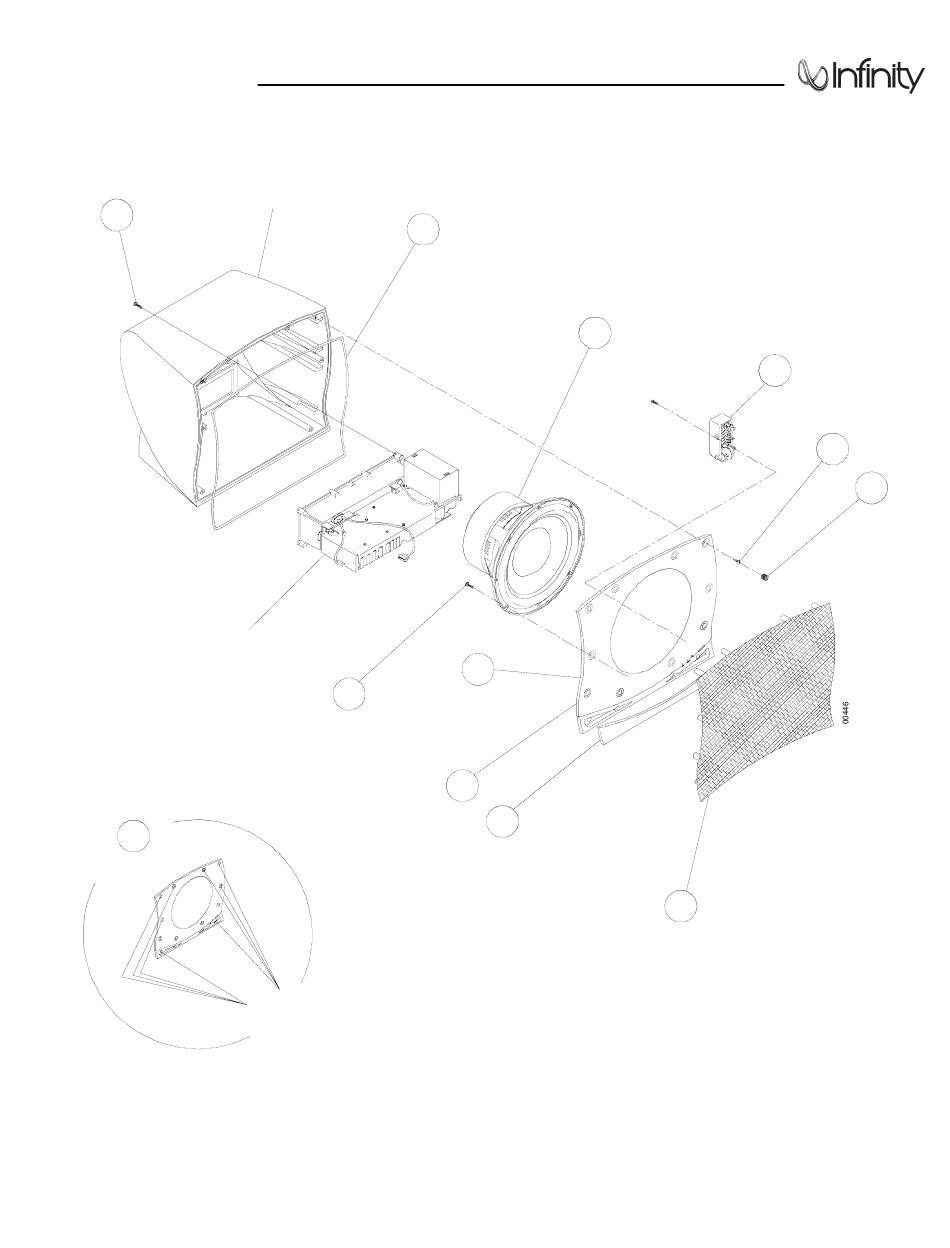

Exploded View
INTERMEZZO 1.2S
CABINET
(NOT FOR SALE)
7
DÉCOR TRIM PANEL, BLACK 335739-030
DÉCOR TRIM PANEL, CHERRY 335739-020
DÉCOR TRIM PANE, MAPLE 335739-010
REMOVE THESE
GRILLE CUPS
AND
SCREWS ONLY
1
2
SEE
VIEW
A
6
9
GRILLE, WARM PLATINUM 335735-040
GRILLE, MIDNIGHT BLUE 335735-050
GRILLE, RICH BURGUNDY 335735-060
12
3
4
(ROTATED)
8
5
