Product Outline

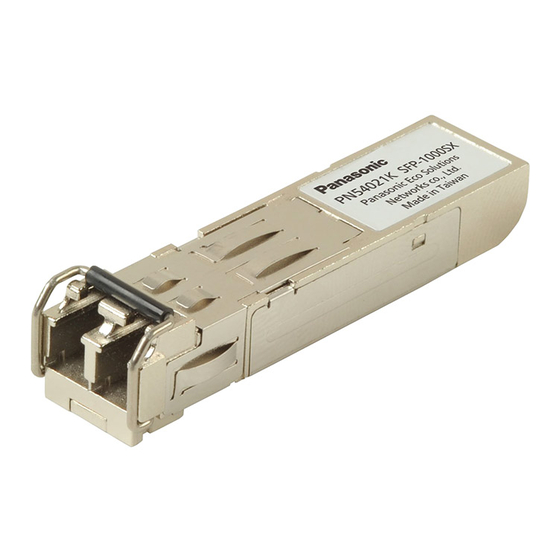

1000BASE-SX SFP Module and 1000BASE-LX SFP Module are SFP (Small Form-Factor
Pluggable) modules to be connected to a Panasonic Switching Hub's SFP extension slot.
Specifications
Product name
1000BASE-SX SFP Module
Module No.
PN54021K
IEEE802.3z
Standards
1000BASE-SX
SFF-8472 (Diagnostic Monitoring Interface)
Compatible cable
MMF cable
Fiber optic port
connector type
Optical wavelength
Operating voltage
Power consumption
0.7 W max
Operating ambient
0 to 50°C /20 to 80% RH (No dew condensation)
temperature/humidity
9 mm (Height) x 14 mm (Width) x 57 mm (Depth)
External dimensions
Mass (Weight)
Installation Guide (this document)
Accessories
Protection cap of the fiber optic port (Attached to the module) x 1
MMF: Multi Mode Fiber
Installation
1. Securely connect the SFP Module to the SFP
extension slot of a Panasonic Switching Hub.
2. Remove the protective cap of the SFP
Module's fiber optic port.
3. Connect a fiber optic cable that meets the
standards specified for the SFP Module.
4. Connect another SFP Module of the same
model number on the opposite end.
Removal
1. Unlatch the fiber optic cable and remove it from the SFP
Module.
2. Pull down the lever of the SFP Module 90 degrees as
shown in the figure to unlatch the SFP Module.
3. Pull out the SFP Module.
1000BASE-LX SFP Module
PN54023K
IEEE802.3z
1000BASE-LX
SMF, MMF cable
LC connector (Duplex)
850 nm
1310 nm
DC 3.3 V
0.9 W max
(Excluding protruding sections)
17 g
SMF: Single Mode Fiber
SFP extension slot
Fiber optic port
SFP Module
Installation Guide
Thank you for purchasing our product.
This document provides important information about safe and proper
operations of this SFP Module.
Please read the "Important Safety Instructions".
Any problems or damage resulting from disassembly of this SFP
Module by customers are not covered by the warranty.
x 1
Switching Hub
2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021
©
Lever
1000BASE-SX SFP Module (SFP-1000SX)
1000BASE-LX SFP Module (SFP-1000LX)
PN54021K/PN54023K
Model No.
2019
C0913-10719
Printed in Japan
