E-Series
NVR Setup Guide
V1. 7
Nov 2014
th
V2. 30
th
Jan 2015
Security Systems Business Division
Panasonic System Networks Co., Ltd.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic E-SERIES

Summary of Contents for Panasonic E-SERIES

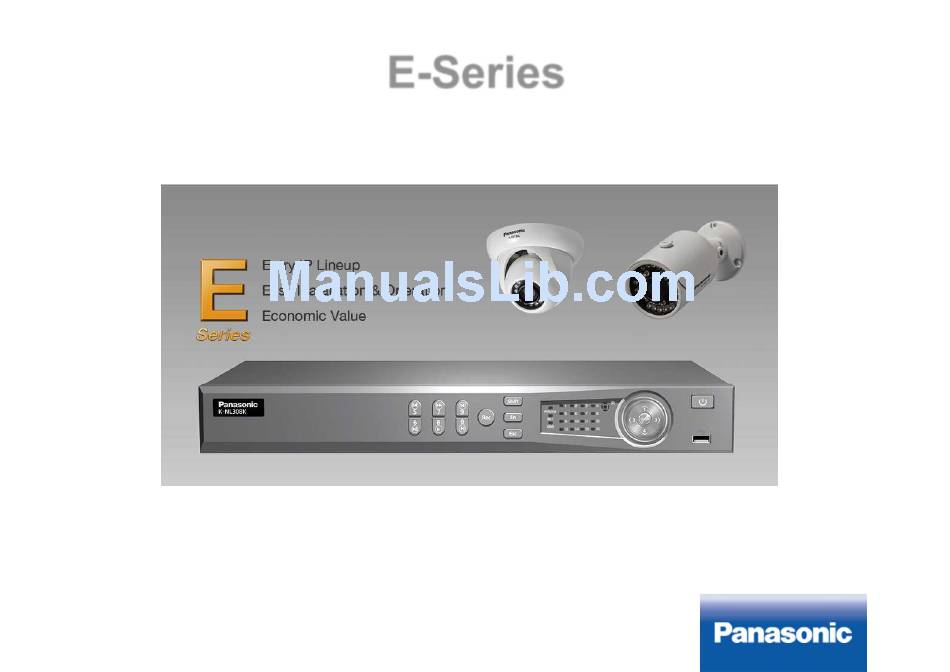

  • Page 1 E-Series NVR Setup Guide V1. 7 Nov 2014 V2. 30 Jan 2015 Security Systems Business Division Panasonic System Networks Co., Ltd.
  • Page 2 <NOTICE> This document is supplementary to the operation manual. The screens used in this document is taken from K-NL-308K with firmware version3.20. Depending on the firmware version, the screens may differ from the actual screens.
  • Page 3 Menu tree of NVR For System related settings : SYSTEM Day & Time / Display /Account / Firmware Update / Maintenance For Camera related settings: REMOTE Encode / Image Adjustment / Firmware Update For Recording related settings: SETTING STORAGE Schedule / HDD Configuration / Others For Event related settings: EVENT...

  • Page 4: System Settings

    SYSTEM Settings...

  • Page 5: General Setting

    General Setting Duration of no user operation to log out automatically Individual number to identify each NVR (range: 0 to 60 min. default : 10 min) when using remote controller “Overwrite”: overwrite old file when all HDD storage is full “Stop Record”: stop recording when all HDD storage is full Time interval to synchronize time with camera...

  • Page 6: Date And Time Setting

    Date & Time Setting Daylight Saving Time( Summer Time) setting NTP server setting If internet connection is available, recommend to set NTP server...

  • Page 7: Holiday Setting

    Holiday Setting Add by date Add by week...

  • Page 8: Display Setting

    Display Setting Resolution setting for Display Monitor(HDMI / VGA) Choose one of following option to match display supported resolution 1280x1024(default) / 1280 x 720 / 1920 x 1080/ 1024 x 768 Check when display for time information is required Check when display for channel information is required Check when keeping aspect ratio of camera resolution setting is required...

  • Page 9: Tour Setting

    Tour Setting Can set interval time between the sequential displays (range : 5 sec – 120 sec) Can select window split types(view1/4/8/9) to check camera to display below area Check window split patterns to display sequentially Can add new channels to display sequentially...

  • Page 10: User Account Setting

    User Account Setting Check when multiple user access using same account is allowed Input “User Name” , “Password”, and select “Group” Don’t forget !
  • Page 11 User Group Setting Input “Group Name” Check allowed items to change...
  • Page 12 Auto Maintain Setting Set whether reboot weekly at certain time or never reboot Set whether delete old files recorded before specified days automatically or never delete old files (range : Never, 1 – 31 days)

  • Page 13: Export Setting

    Export Setting After insertion of USB memory, memory space information is displayed Select appropriate folder Click this button, then in the USB memory “Config_xxxx(Date/Time)” is created.

  • Page 14: Import Setting

    Import Setting After insertion of USB memory, memory space information, and folder/file information is displayed Select the folder “Config_xxxx(Date/Time)” folder where configuration files are included, Then click this button. After import is executed successfully, the system will reboot After import is executed, all settings are changed immediately...

  • Page 15: Default Setting

    Default Setting Can select settings to default...

  • Page 16: Upgrading Nvr Firmware

    Upgrading NVR Firmware Select . bin file and click start. Click after insertion of USB memory Then, firmware will be updated.

  • Page 17: Storage Settings

    STORAGE Settings...

  • Page 18: Recording Schedule Setting

    Recording Schedule Setting Record Type Time to start event triggered recording -Regular (Green) : Continuous recording before the event occurs -Motion(Yellow) : Motion detect triggered recording Check to activate -Alarm(Red) : Alarm triggered recording dual HDD recording -MD&Alarm(Blue) : Motion detect and Alarm dual triggered recording Clicking the icon turns to This enables to set same period in all days...
  • Page 19 HDD Configuration Setting Means HDD is connected HDD Property Type -Read-Write : Allow to record -Read- Only : Not allow to record -Redundant : Set as redundant HDD for one other HDD Click the button execute format of selected HDD...
  • Page 20 Recording Control Setting Control mode -Auto : Recording is executed subject to schedule setting -Manual : Recording is executed regardless of schedule setting -Off : Recording is suppressed regardless of schedule setting Control mode for sub- stream (Need to set “Auto” to start schedule recording by sub-stream)
  • Page 21 HDD Group Setting(1) HDD Group Can set each HDD to either group ‘1’ or group ‘2’...
  • Page 22 HDD Group Setting(2) Also for sub stream recording, group can be allocated to each CH in the same way Can allocate group 1 or 2 to each CH for main stream recording...

  • Page 23: Remote Settings

    REMOTE Settings...
  • Page 24 Camera Firmware Version Firmware information...

  • Page 25: Upgrading Camera Firmware

    Upgrading Camera Firmware Check a camera to be upgraded Double-click . bin file and click OK. after insertion of USB memory...

  • Page 26: Camera Image Settings

    Camera Image Settings(1) No Flip : Set back to original position. default Saturation : Color Saturation control Flip 180 : Rotate Upside Down display Brightness : Picture Brightness control Clockwise 90: Rotate display 90 degree clockwise Contrast : Picture Contrast control Counter Clockwise 90 : Rotate 90 degree counterclockwise Sharpness : Picture Sharpness control Switching Left/Right side display...
  • Page 27 Camera Image Settings(2) Can memorize each following profiles for Image settings Day : profile for daytime Night : profile for night Normal : profile for normal (all day) Switch By Period : can set schedule to set day profile and night profile Set Time to start and end time to use “day profile”.
  • Page 28 Video Encode Setting Can select “Regular”/”Motion Detect”/”Alarm” And configure different settings by selected type /VBR Recommend to use CBR Settings for sub stream Settings for main stream...

  • Page 29: Snapshot Setting

    Snapshot Setting Picture quality of snapshot(range : 1-6, default : 5) Number of snapshots to take Can configure following two types of snapshot setting Timing : Select in case of manual snapshot Trigger : Select in case of motion triggered snapshot or alarm triggered snapshot Interval to take snapshots(range : 1sec –...

  • Page 30: Overlay Setting

    Overlay Setting(1) Time Display Can change the position of time display with mouse dragging operation Channel Display Can change the position of channel display with mouse dragging operation...
  • Page 31 Overlay Setting(2) Private Mask Setting This mask area can change the position and its size with mouse operation Can select up to 4 mask areas Display after the setting...

  • Page 32: Camera Name Setting

    Camera Name Setting Can change name for each channel (max. 31 characters) Camera name is overlaid on camera display...

  • Page 33: Event Settings

    EVENT Settings...

  • Page 34: Motion Detect Setting

    Motion Detect Setting Detection Area Setting Can specify up to 4 different areas Colored area means motion detection area Detection Period Setting Specify recording channel when MD occurs Do not forget to check it for MD recording...
  • Page 35 Motion Detect Setting Enable/Disable alarm out port 1/2 Latch : additional time to last alarm output signal (range : 1- 300 sec, default : 10 sec) Duration to ignore new one after motion detection (range : 5 – 600 sec, default: 5 sec) Specify channels for sequential display Enable/ Disable to generate buzzer Need to uncheck here...
  • Page 36 Alarm(IPC Offline) Setting(1) Specify recording channel when alarm occurs Do not forget to check it for alarm recording...
  • Page 37 Alarm(IPC Offline) Setting(2) Enable/Disable alarm out port 1/2 Latch : time to last alarm output signal (range : 1- 300 sec, default : 10 sec) Specify channels for sequential display Additional time to record video after alarm ends (range: 10 – 300 sec, default : 10 sec) Enable/ Disable to generate buzzer Need to uncheck here to stop buzzer...
  • Page 38 Alarm(from alarm terminal) Setting(1) Polarity of alarm terminal NO : Normal Open NC : Normal Close Alarm Period Setting Specify recording channel when alarm occurs Do not forget to check it for alarm recording...
  • Page 39 Alarm(from alarm terminal) Setting(2) Enable/Disable alarm out port 1/2 Latch : time to last alarm output signal (range : 1- 300 sec, default : 10 sec) Duration to ignore new one after alarm occurrence (range : 5 – 600 sec, default: 5 sec) Specify channels for sequential display Enable/ Disable to generate buzzer Need to uncheck here...
  • Page 40 HDD Abnormality Notification Setting Abnormal HDD status No HDD : No HDD connected No Space : HDD free space is less than specified percentage Disk Error : HDD error detected Enable/Disable alarm out port 1/2 Latch : time to last alarm output signal Enable/ Disable to generate buzzer (range : 1- 300 sec, default : 10 sec) Need to uncheck here...
  • Page 41 NW Abnormality Notification Setting Abnormal Network status Disconnect : NVR connection to network is failed IP Conflict : IP address is duplicated in the network MAC Conflict : Mac address is duplicated in the network Enable/Disable alarm out port 1/2 Latch : time to last alarm output signal (range : 1- 300 sec, default : 10 sec) Enable/ Disable to generate buzzer...
  • Page 42 Alarm Output Control Setting Control mode -Auto : Alarm output is executed subject to alarm setting -Manual : Alarm output is executed manually -Stop : Alarm output stops manually...

  • Page 43: Network Settings

    NETWORK Settings...
  • Page 44 TCP/IP Change IP address and Subnet Mask Enable to select DHCP if router supports this function...
  • Page 45 Connection Define port number. If you access multiple NVRs through the Internet, you have to change port number individually.
  • Page 46 DDNS After internet connection establishes, check Enable, select Domain name and put email address in User Name. You may select default domain name or unique domain name. Press test and you can find result (Success) in another window. Then press Apply.
  • Page 47 UPNP Please check whether your router has UPNP function or not. If Yes, please enable UPNP function of your router. Check Enable and press Apply. Then Status will be changed to Success. Edit Port number of Network service * Recommend to use UPNP function with fixed LAN addressing...
  • Page 48 IP FILTER(User Access Control) User Access Control Type Trusted Sites : only specified IP address users can access NVR Blocked Sites : Specified IP address users can NOT access NVR User’s IP address range under access control Click here to specify IP address range...
  • Page 49 IP FILTER(User Access Control) Can select trusted user or blocked user to access NVR Add IP address Specify user’s IP address...
  • Page 50 Switch Enable to change IP address of PoE switch which cameras are connected.
