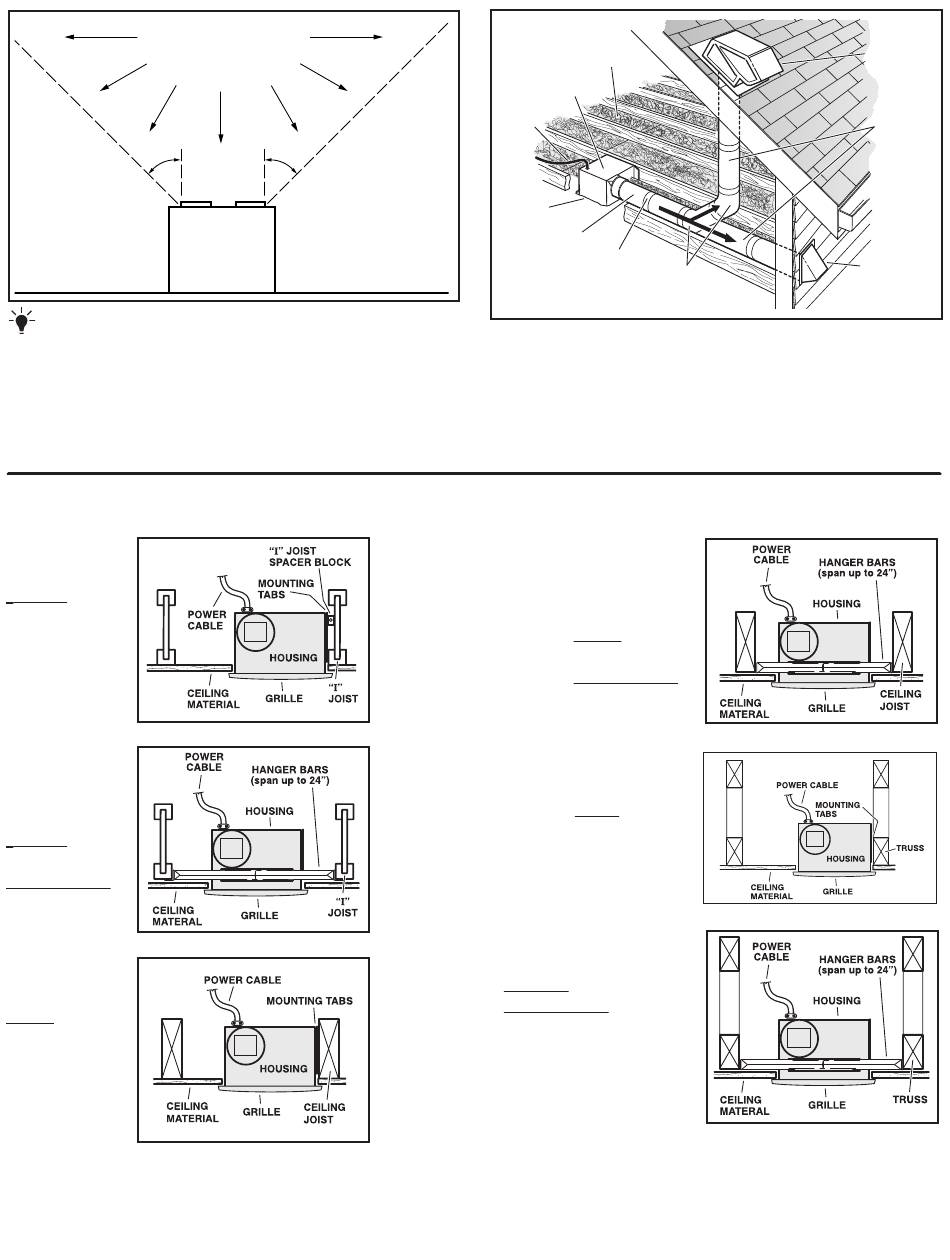

Typical Installations - Broan QT DC Series Install Instructions Manual

COOKING AREA
Do not install above or
inside this area.
o
45
NOT FOR USE IN
A COOKING AREA.
IMPORTANT - The ducting from this fan to the outside of the building
has a strong effect on the air flow, noise and energy use of the fan. Use the
shortest, straightest duct routing possible for best performance, and avoid
installing the fan with smaller ducts than recommended. Insulation around
the ducts can reduce energy loss and inhibit mold growth. Fans installed
with existing ducts may not achieve their rated airflow.
Housing
mounted to
I-joists.
Use I-joist
spacer block
(provided).
Housing
mounted
anywhere
between
I-joists
using
hanger bars.
Housing
mounted to
joists.
o
45
Cooking
Equipment
Floor

TYPICAL INSTALLATIONS

INSULATION
(Place around and
over fan housing.)
FAN
HOUSING
POWER
CABLE*
Seal gaps
around
housing.
6-IN. ROUND
DUCT*
Seal duct
joints with
*Purchase
6-IN. ROUND
tape.
separately.
Housing
mounted
anywhere
between
joists
using
hanger bars.
Housing
mounted to
truss.
Housing mounted
anywhere between
trusses using
hanger bars.
2
OR
ELBOWS*
ROOF CAP*
(with built-in
damper)
Keep duct
runs short.
WALL CAP*
(with built-in
damper)
