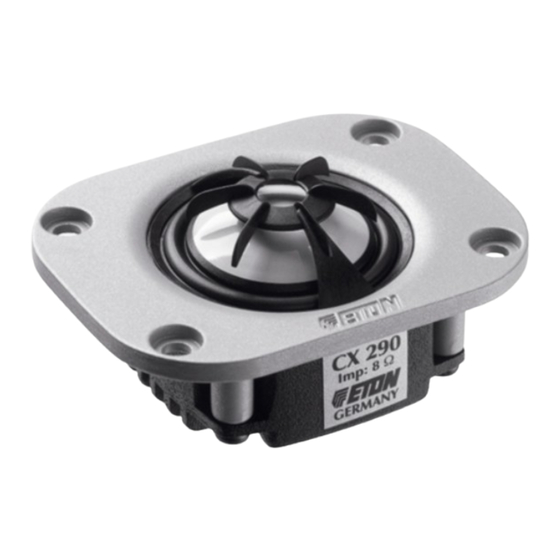

Eton CX 290 Installation & Operation Manual

Tweeter system

Advertisement

Available languages

Available languages

Quick Links

GERMAN HIGH TECHNOLOGY
CX 290
CX 290
HOCHTÖNER SYSTEM
TWEETER SYSTEM
EINBAU / BEDIENUNG
INSTALLATION / OPERATION
Achtung !
Bitte lesen Sie alle Warnungen in dieser Anleitung. Diese
Informationen sind eingerahmt hervorgehoben und eingefügt, um
Sie über mögliche persönliche Schäden oder Beschädigungen von
Sachwerten zu informieren.
Hörschäden
Anhaltendes, übermäßiges Ausgesetztsein von Lautstärken
über 85 dB kann das Hörvermögen auf Dauer beeinträchtigen. ETON
Lautsprechersysteme sind imstande, auch Lautstärken über 85 dB zu
produzieren.
Lautstärke und Fahrerbewußtsein
Der Gebrauch von Musikanlagen kann das Hören von
wichtigen Verkehrsgeräuschen behindern und dadurch während der
Fahrt Gefahren auslösen.
ETON übernimmt keine Verantwortung für Gehörschäden,
körperliche Schäden oder Sachschäden, die aus dem Gebrauch oder
Mißbrauch seiner Produkte entstehen.
Attention !
Please read all warnings found in this manual. This
information is highlighted in frames and is included to inform you of
the potential danger of personal injury or damage to property.
Hearing Damage
Continuous, excessive exposure to sound pressure levels in
excess of 85 dB can cause a loss of hearing. ETON components are
capable of producing sound pressure levels greater than 85 dB.
Volume and Driver Awareness
Use of sound components can impair your ability to hear
necessary traffic sounds and may constitute a hazard while driving
your automobile.
ETON accepts no liability for hearing loss, bodily injury or
property damage as a result of use or misuse of this product.
2

Advertisement

loading

Summary of Contents for Eton CX 290

  • Page 1 Hearing Damage Continuous, excessive exposure to sound pressure levels in excess of 85 dB can cause a loss of hearing. ETON components are capable of producing sound pressure levels greater than 85 dB. Volume and Driver Awareness...
  • Page 2: Montage

    MONTAGE ELEKTRISCHER ANSCHLUSS Nehmen Sie Ihr Fahrzeug nicht in Betrieb, bevor alle Komponenten des Achten Sie immer darauf, wenn Sie Kabel durch ein Blech verlegen, daß das Lautsprechersystems fest und sicher eingebaut sind. Lose Teile können Kabel durch eine Kunststoffdurchführung geschützt ist und nicht von einer im Falle eines plötzlichen Bremsmanövers oder eines Unfalls zu scharfen Blechkante beschädigt werden kann, um Kurzschlüsse und daraus gefährlichen, fliegenden Geschossen werden.
  • Page 3: Choosing A Location

    Den Lautstärkeregler so einstellen, dass die Musik in ihrer vollen Bandbreite Choosing a Location (Hochton-, Mittel- und Tieftonbereich) noch gut wahrnehmbar ist. Installation too close to reflective surfaces can negatively affect stereo imaging. Lassen Sie einen Musikabschnitt abspielen (ca. 20-30 Sekunden) und achten The distance between each mid/woofer and tweeter pair should not exceed 60 genau auf die Wiedergabe.
  • Page 4 Important! Abbildung 1 Einbau Hochtöner Figure 1 Flush mount of Tweeter Correct high frequency polarity in the automobile The correct polarity of tweeter to woofer is a decisive factor for the sound quality of the entire sound system. A false polarity can even "destroy” the sound of the best loudspeaker system.
  • Page 5: Technische Daten / Specifications

    Wiring diagram for Technische Daten / Specifications Figure 2 2 Kanal 2-channel 4 Kanal 4-channel AUTORADIO / SOURCE UNIT CX 290 120 W Nennbelastbarbeit / Nominal Power Impedanz / Nominal Impedance 8 Ohm VERSTÄRKER AMPLIFIER 1500 - 22000 Hz Frequenzbereich / Frequency Response...
  • Page 6 Bohrschablone · Mounting template GERMAN HIGH TECHNOLOGY V 21.893...
