Philips DVP320F/17B Quick Use Manual

There are many ways to connect your new DVD Player to your TV.
This Quick-Use Guide shows a common connection using the supplied cables.
Other options are explained in the accompanying owner's manual.
L R COAXIAL
2

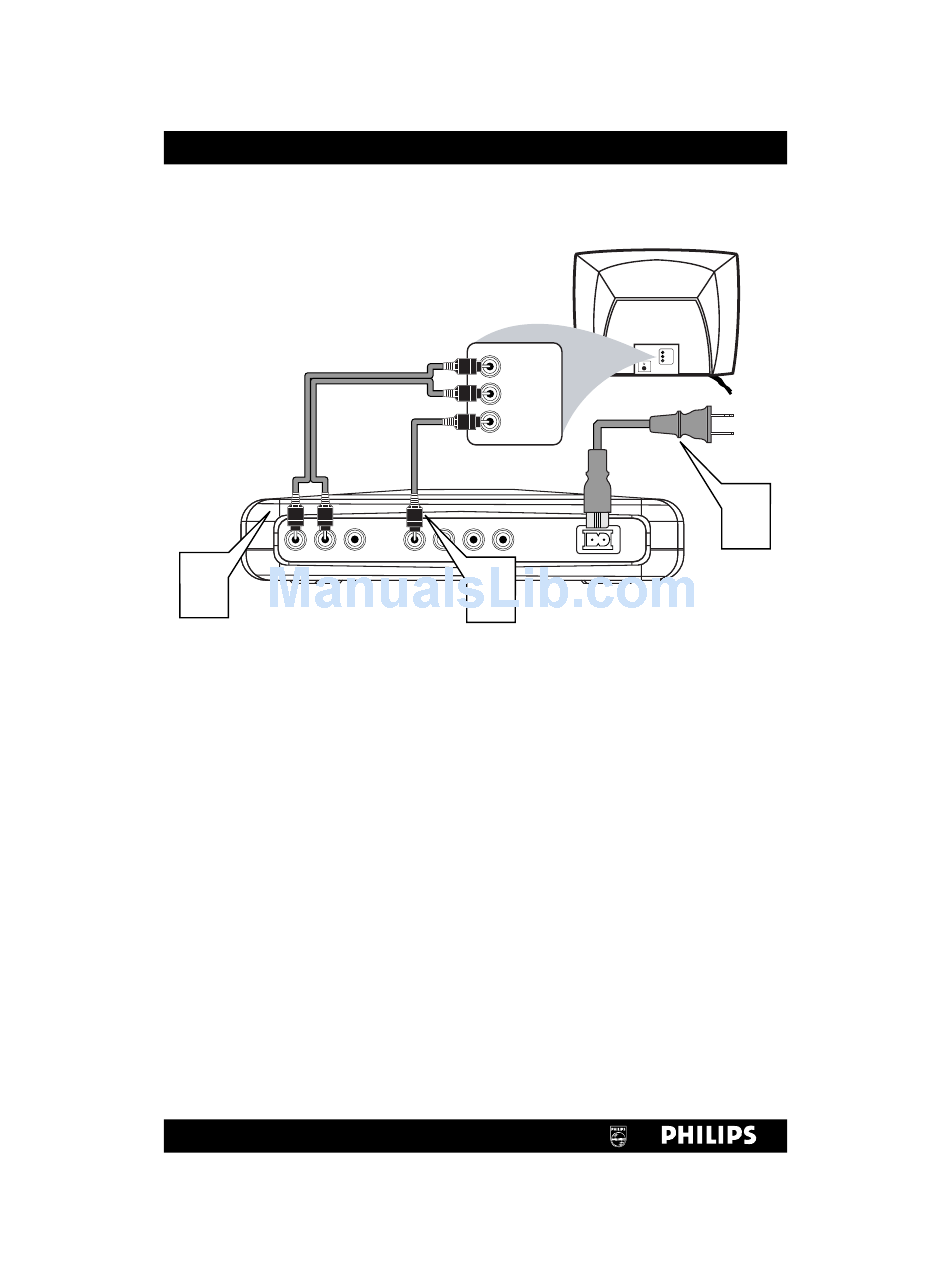

Connect the supplied video cable (yellow) to the DVD Player's yel-
1
low VIDEO Out jack and to the VIDEO IN jack on your TV.
Connect the supplied audio cable (white and red) to the DVD
2
Player's white/red AUDIO Out (left/right) jacks and to the left/right
AUDIO IN jacks on the TV. Match the cable colors to the jack colors.
Connect the supplied power cord to the MAINS (AC Power) jack on
3
the rear of the DVD Player.
Plug the power cords of the Player and the TV into a power outlet.
Press POWER on the Player to turn it on.
4
Turn on the TV. Set it to the correct Video In channel.
5
Such channels may be called AUX or AUXILIARY IN, AUDIO/VIDEO or A/V
IN, EXT1 or EXT2 or External In, etc. Or, your TV's remote control may have
a button or switch that selects a Video In mode. See your TV manual for
details. Or, select your lowest TV channel (01 or 02) and change TV channels
down until you see the blue DVD screen on the TV.
If your TV has a single Antenna In or RF In jack, you will need an RF
modulator. That will enable you to watch the DVD Player on your TV at
channel 3 or 4 (as with a VCR). See the owner's manual for details.
