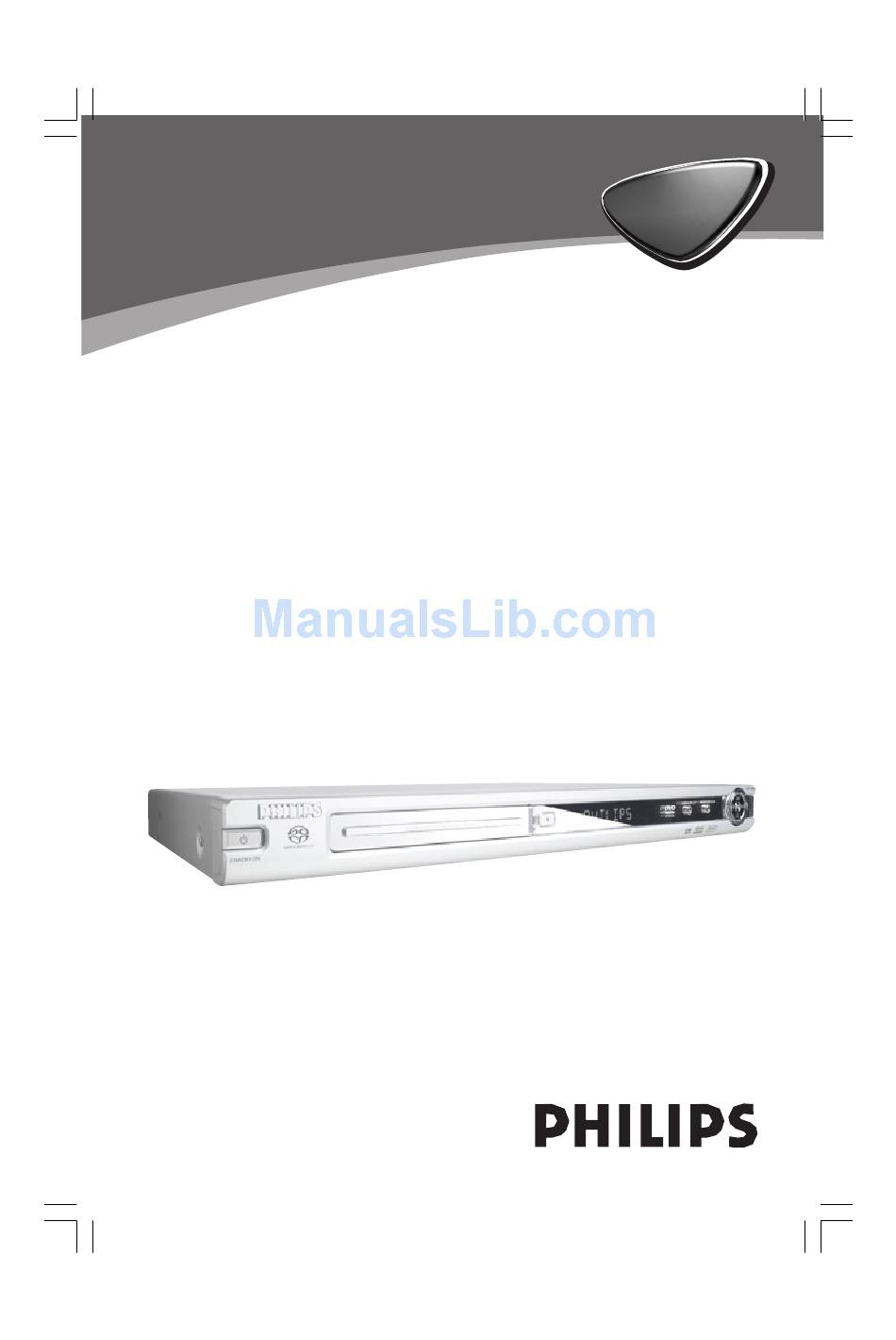

- Page 1 720SA 720SA DVD VIDEO / SACD PLAYER 3139 246 13543 01-40 DVP720_EU_051 3/08/2004, 4:43 PM...
- Page 2 Important notes for users in the U.K. Mains plug This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fix new fuse which should be a BS1362 5 Amp, A.S.T.A.
- Page 3 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
-
Page 4: General Information
Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CD- Audio disc retailer. - Page 5 DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete. Go to www.p4c.philips.com for software upgrade. ‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS...
-
Page 6: Table Of Contents
Contents Introduction Supplied accessories ... 8 Care and safety information ... 8 Connections Connecting TV ... 9-10 Using RGB jack ... Using Composite Video jacks (CVBS) ... Using S-Video jack ... Using Component Video jacks (Pr Pb Y) . Using an accessory RF modulator ... Connecting the power cord ... - Page 7 DVD Menu Options General Setup menu ... 27-28 Locking/Unlocking the disc for viewing ... Dimming system’s display screen ... Programming disc tracks ... OSD Language ... Screen Saver - turning on/off ... DivX VOD registration code ... Audio Setup Menu ... 28-30 Digital Audio Setup ...
-
Page 8: Supplied Accessories
– Write only on the printed side of a CDR(W) and only with a soft felt- tipped pen. – Handle the disc by its edge, do not touch the surface. 3/08/2004, 4:43 PM 2.5 cm (1 inches) PHILIPS 2.5 cm (1 inches) 3139 246 13543... -
Page 9: Connections
Connecting TV S-VIDEO AUDIO SCART/RGB IN VIDEO IN CVBS DIGITAL AUDIO OUT PCM/MPEG2/Dolby Digital COAXIAL OPTICAL S-VIDEO IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your TV system. – Connect the DVD system directly to the TV. -
Page 10: Using S-Video Jack
Connections COMPONENT VIDEO IN S-VIDEO V (Pr/Cr) AUDIO U (Pb/Cb) VIDEO IN COMPONENT S-VIDEO VIDEO IN V (Pr/Cr) AUDIO U (Pb/Cb) VIDEO IN CVBS DIGITAL AUDIO OUT PCM/MPEG2/Dolby Digital COAXIAL OPTICAL S-VIDEO TV OUT IMPORTANT! – S-Video connection provides better picture quality. This option must be available on your TV. -
Page 11: Using An Accessory Rf Modulator
RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. Using an accessory RF modulator Use the composite video cable (yellow) to connect the DVD Player’s CVBS jack to... -
Page 12: Optional: Connecting To A Multi-Channel Receiver
Connections Optional: Connecting to a Multi- channel Receiver MULTICHANNEL AUDIO IN AV Receiver FRONT CENTER FRONT SUBW. CENTRE SUB- TV OUT STEREO FRONT WOOFER Receiver has a Dolby Digital or DTS decoder Select one of the video connections (CVBS VIDEO IN, S-VIDEO IN, SCART or COMPONENT VIDEO IN) depending on the options available on your TV. -
Page 13: Optional: Connecting Digital Av Receiver
Optional: Connecting Digital AV Receiver AV Receiver OPTICAL AUDIO DIGITAL CVBS DIGITAL AUDIO OUT PCM/MPEG2/Dolby Digital COAXIAL OPTICAL S-VIDEO Receiver has a PCM, Dolby Digital, or MPEG2 decoder Select one of the video connections (CVBS VIDEO IN, S-VIDEO IN, SCART or COMPONENT VIDEO IN) depending on the options available on your TV. -
Page 14: Functional Overview
Functional Overview Front and Rear Panels STANDBY-ON B – To switch the DVD Player to Standby mode or ON Disc tray OPEN/CLOSE / – Open/Close the disc tray Display – Shows the current status of the DVD Player IR Sensor –... -
Page 15: Remote Control
Remote Control RETURN – To go back to previous menu DISC MENU – Enters or exits the disc contents menu – Switches on or off the playback control mode (for VCD version 2.0 only) 1 2 3 4 – Selects an item in the menu/ fast forward/backward, slow forward/ backward –... -
Page 16: Getting Started
9-11 “Connecting TV”). Turn on the TV and set to the correct video-in channel. You should see the Philips DVD background screen on the Usually these channels are between the lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details. -
Page 17: Selecting The Colour System That Corresponds To Your Tv
Press 1 then, press MUTE on the remote control. ➜ The Philips DVD background appears on the TV screen. Selecting the colour system that corresponds to your TV This DVD Player is compatible with both NTSC and PAL. -
Page 18: Step 3: Setting Language Preference
Getting Started Step 3: Setting language preference You can select your own preferred language settings.This DVD Player will automatically switch to the language for you whenever you load a disc. Setting the OSD Language The On-screen language for the system menu will remain as you set it, regardless of various disc languages. -
Page 19: Step 4: Setting The Speakers' Channels
Step 4: Setting the speakers’ channels You can adjust the delay times (centre and surround only) and volume level for individual speakers. These adjustments let you optimise the sound according to your surroundings and setup. IMPORTANT! The speaker settings only available on Multi-channel audio outputs. -
Page 20: Disc Operations
“Setting up the TV”). Press STANDBY-ON on the DVD Player front panel. ➜ You should see the Philips DVD background screen on the TV. Press OPEN•CLOSE 0 button to open the disc tray and load in a disc, then press the same button again to close the disc tray. -
Page 21: Basic Playback Controls
Basic playback controls Unless otherwise stated, all operations described are based on Remote Control use. Pausing playback During playback, press PAUSEÅ. ➜ Playback will pause and sound will be muted. Press PAUSEÅ again to select the next picture frame. To resume normal playback, press PLAY B. -
Page 22: Operations For Video Playback
Disc Operations Operations for video playback (DVD/VCD/SVCD) Using the Disc Menu Depending on the disc, a menu may appear on the TV screen once you load in the disc. To select a playback feature or item Use 1 2 3 4 keys or numeric keypad (0-9) on the remote, then press OK to start playback. -
Page 23: Special Dvd Features
Special DVD Features Playing a Title Press DISC MENU. ➜ The disc title menu appears on the TV screen. Use 341 2 keys or numeric keypad (0-9) to select a play option. Press OK key to confirm. Camera Angle Press ANGLE repeatedly to select different desired angle. -
Page 24: Preview
Disc Operations Preview Function Press PREVIEW. Press 34 to highlight {TRACK DIGEST}, {DISC INTERVAL} or {TRACK INTERVAL}. Press OK to open one option. Track Digest This function will minimise the picture of every track in order to display every six of these tracks on the screen to help you know the content of every track on the disc. -
Page 25: Selecting A Folder And Track/File
Selecting a folder and track/file Press 34 to select the folder and press OK to open the folder. Press 34 to select a track/file. Press OK to confirm. ➜ Playback will start from the selected file to the end of the folder. During playback, you can;... -
Page 26: Special Picture Disc Features
Disc Operations Special picture disc features IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 16 “Setting the TV”). Load a Picture disc (Kodak Picture CD, JPEG). ➜ For Kodak disc, the slide show will begin. -
Page 27: Dvd Menu Options
This DVD Player setup is carried out via the TV, enabling you to customise the DVD Player to suit your particular requirements. General Setup menu In disc mode, press SYSTEM MENU. Press 1 2 to select ‘General Setup’ icon. Press OK to confirm. Locking/Unlocking the disc for viewing Not all discs are rated or coded by the... -
Page 28: Osd Language
Press 34 to select a setting, then press OK to confirm your selection. DivX(R) VOD registration code ® Philips provide you the DivX (Video On Demand) registration code that allows you to rent and purchase ® videos using the DivX VOD service. -
Page 29: Setting The Analogue Output
Digital Output Set the Digital output according to your optional audio equipment connection. ➜ Off: Turn off the digital output. ➜ All: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver. ➜ PCM Only: Only if your receiver is not capable of decoding multi-channel audio. -
Page 30: Night Mode - Turning On/Off
DVD Setup Menu Options Night Mode - turning on/off In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favourite action movie without disturbing others at night. In ‘AUDIO SETUP PAGE’, press 34 to highlight {NIGHT MODE}, then press 2. -
Page 31: Progressive - Turning On/Off
Press 34 to select a setting, then press OK to confirm your selection. Warning: When the player is set to Y Pb Pr (YUV), some TV may not properly synchronise with player on the SCART connector. Progressive - turning on/off This feature is only applicable if you have connected this DVD Player to a Progressive Scan TV through the Y Pb Pr... -
Page 32: Preference Setup Menu
DVD Setup Menu Options Preference Setup Menu Press Ç twice to stop playback (if any), then press SYSTEM MENU. Press 1 2 to select the ‘Preference Setup’ icon. Press OK to confirm. Audio, Subtitle, Disc Menu These menus contain various language options for audio, subtitle and disc menu which may be recorded on the DVD. -
Page 33: Changing The Password
Changing the Password The same password is used for both Parental Control and Disc Lock. Enter your six-digit password when prompted on the screen. The default password is 136 900. In ‘PREFERENCE PAGE’, press 34 to highlight {PASSWORD}, then press 2 to select {CHANGE}. -
Page 34: Troubleshooting
No output from subwoofer during stereo – Check that all speaker settings in the setup menu Disc can’t be played Picture freezes momentarily during playback Visit us at www.p4c.philips.com for service support 01-40 DVP720_EU_051 Solution – Check if the AC power cord is properly connected. - Page 35 An MPEG-4 or DivX movies does not repeat Unable to select the DVD Player’s front panel Multichannel and Progressive Scan Visit us at www.p4c.philips.com for service support 01-40 DVP720_EU_051 Troubleshooting Solution – Reset the unit by switching the player off, then on again.
-
Page 36: Specifications
Specifications TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE CVBS 1Vpp — 75 ohm YPbPr 0.7 Vpp — 75 ohm RGB (SCART) 0.7 Vpp — 75 ohm Video DAC 108MHz / 12bit VIDEO FORMAT Digital Compression MPEG 2 for DVD,SVCD MPEG 1 for VCD MPEG-4/DivX 50Hz... -
Page 37: Glossary
Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. -
Page 38: Language Code
Language Code Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian... - Page 39 3139 246 13543 01-40 DVP720_EU_051 3/08/2004, 4:44 PM...
- Page 40 Meet Philips at the Internet http://www.philips.com DVP720SA CLASS 1 LASER PRODUCT 3139 246 13543 Sgp-SL-0430/05-1 3139 246 13543 01-40 DVP720_EU_051 3/08/2004, 4:44 PM...
