Broadata Link Bridge LBS-41H2 Manual

4×1 hdmi 2.0 switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

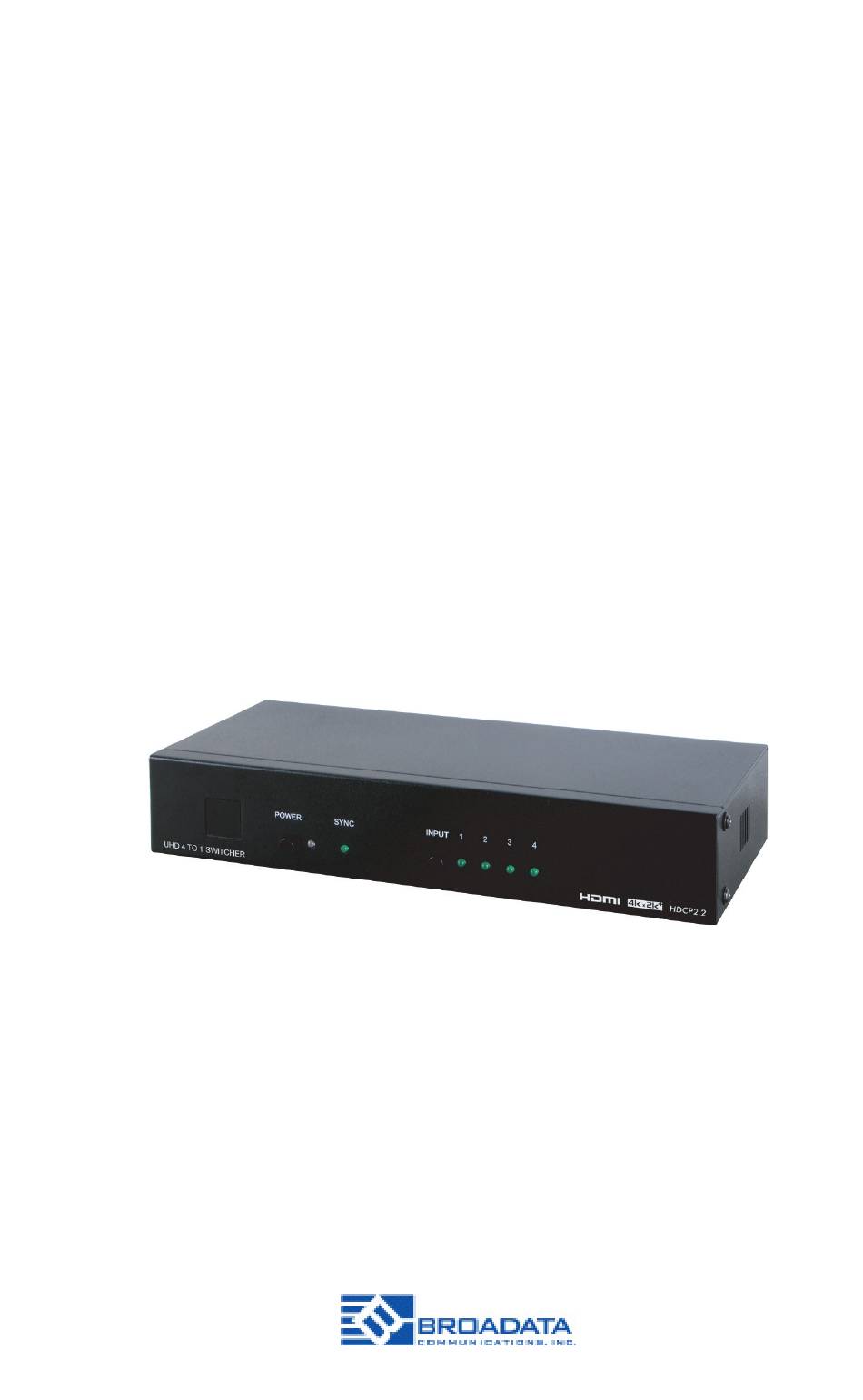

LBS-41H2
Link Bridge
4×1 HDMI 2.0 Switcher
TM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2017 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Broadata Link Bridge LBS-41H2

Summary of Contents for Broadata Link Bridge LBS-41H2

  • Page 1 4×1 HDMI 2.0 Switcher BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
  • Page 3 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 4: Table Of Contents

    4.2 TELNET CONTROL..................12 4.3 GUI CONTROL ....................13 4.4 WEBGUI CONTROL PAGE................14 5.0 SPECIFICATIONS ..................18 6.0 SERVICE PROCEDURE.................19 6.1 REPLACEMENT POLICY ................19 6.2 RETURN & REPAIR SERVICE.................19 7.0 LIMITED WARRANTY..................20 8.0 APPENDIX - VIDEO SPECIFICATIONS ............21 Broadata Technical Support, Sales@Broadatacom.com...

  • Page 5: Product Description

    Dolby Digital, DTS, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio • Supports configurable EDID management via pre-defined internal EDIDs and user-defined EDID selections • Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote Broadata Technical Support, Sales@Broadatacom.com...

  • Page 6: Operation Controls And Functions

    5. INPUT: Press this button to sequentially switch through the 4 available inputs. 6. INPUT LED 1~4: These LEDs will illuminate GREEN to indicate which of the 4 sources are currently selected. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 7: Rear Panel

    Ensure that the remote being used is within direct line-of-sight of the IR Extender. 7. DC 5V: Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 8: Remote Control

    2. INPUT 1~4: Press 1 through 4 to select the input source. 3.1 IR Cable Pin Assignments 4.0 RS-232 PIN ASSIGNMENT Baud Rates: 115200bps Data Bits: 8 Parity Bits: None Stop Bit: 1 Flow Control: None Broadata Technical Support, Sales@Broadatacom.com...

  • Page 9: Rs-232 And Telnet Commands

    Set the HDCP mode for input N1. N1 = 1~4 [Input number] Available values for N2: 0 [Standard] 1 [Apple Mode] HDCPIN N1 Show the HDCP settings for input N1. N1 = 1~4 [Input number] HDCPIN Show all current HDCP input settings. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 10 0 [SINK] 1 [720P] 2 [1080P] 3 [4K_3G] 4 [4K_Y420] 5 [4K_6G] EDIDIN N1 Show the current EDID selection for input N1 in “Appoint” mode. EDIDIN Show the current EDID selections for all inputs in “Appoint” mode. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 11 TELNETPORT N1 Set the Telnet port. N1 = 0~65535 IPMODE N1 Set the current IP address mode. Available values for N1: 0 [Static IP] 1 [DHCP] READMAC Show the unit’s MAC address. UPDATE Broadata Technical Support, Sales@Broadatacom.com Broadata Technical Support, Sales@Broadatacom.com...

  • Page 12: Telnet Control

    Notes: • Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. • If the IP address is changed then the IP address required for Telnet access will also change accordingly. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 13: Gui Control

    “Save” followed by “Reboot”. • WebGUI: Once you are satisfied with the network settings, you may use them to connect via Telnet or WebGUI. The network information window provides a convenient link to launch the WebGUI directly. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 14: Webgui Control Page

    1. Power The unit can be powered on or off (stand-by mode) from this tab. 2. Routing This tab allows for the selection of the input source. Four HDMI inputs are available for selection. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 15 This tab allows for the HDCP mode to be switched between “Standard” and “Apple” mode. “Apple” mode allows for the display of non-HDCP required content from Apple devices on non-HDCP displays. This setting can be assigned individually to each input. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 16 7. Source Detect When a live input source is connected one of the 4 HDMI inputs the corresponding input port in this tab will display “ON”. If no source is detected on that input, it will display “OFF”. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 17 • UPDATE: Click the “UPDATE” button to begin the firmware update process. 10. HDMI Out Info The HDMI output display’s detected information is listed here, including type, manufacturer name, native resolution, color depth, 3D support, 4K support and audio format support. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 18: Specifications

    One (1) or Two (2) HDMI 2.0 ports Control LAN, RJ45 RS-232 (1), DB-9 Service USB, for firmware upgrade PHYSICAL Dimension (WxDxH) 9.45” x 4.10” x 1.70” Operating Temperature 0˚C to 40˚C Storage Temperature -20˚C to 60˚C Power Supply 5V@2.6A Broadata Technical Support, Sales@Broadatacom.com...

  • Page 19: Service Procedure

    The LBS-41H2 System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •...

  • Page 20: Limited Warranty

    Link Bridge 4x1 HDMI 2.0 Switcher 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election,...

  • Page 21: Appendix - Video Specifications

    1024 x 768@60/70/75 1280 x 768@60 1280 x 1024@60 1360 x 768@60 1600 x 1200@60 1920 x 1200@60 (RB) Supported TV Resolutions (Hz) Input Output 480i@60 576i@50 480p@60 576p@50 720p@50/60 1080i@50/60 1080p@24/25/30/50/60 3840x2160p@50/60 (4:2:0) 4096x2160p@50/60 (4:2:0) 3840x2160p@24/25/30/50/60 4096x2160p@24/50/60 Broadata Technical Support, Sales@Broadatacom.com...
  • Page 22 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 6000-LBS41H2...
