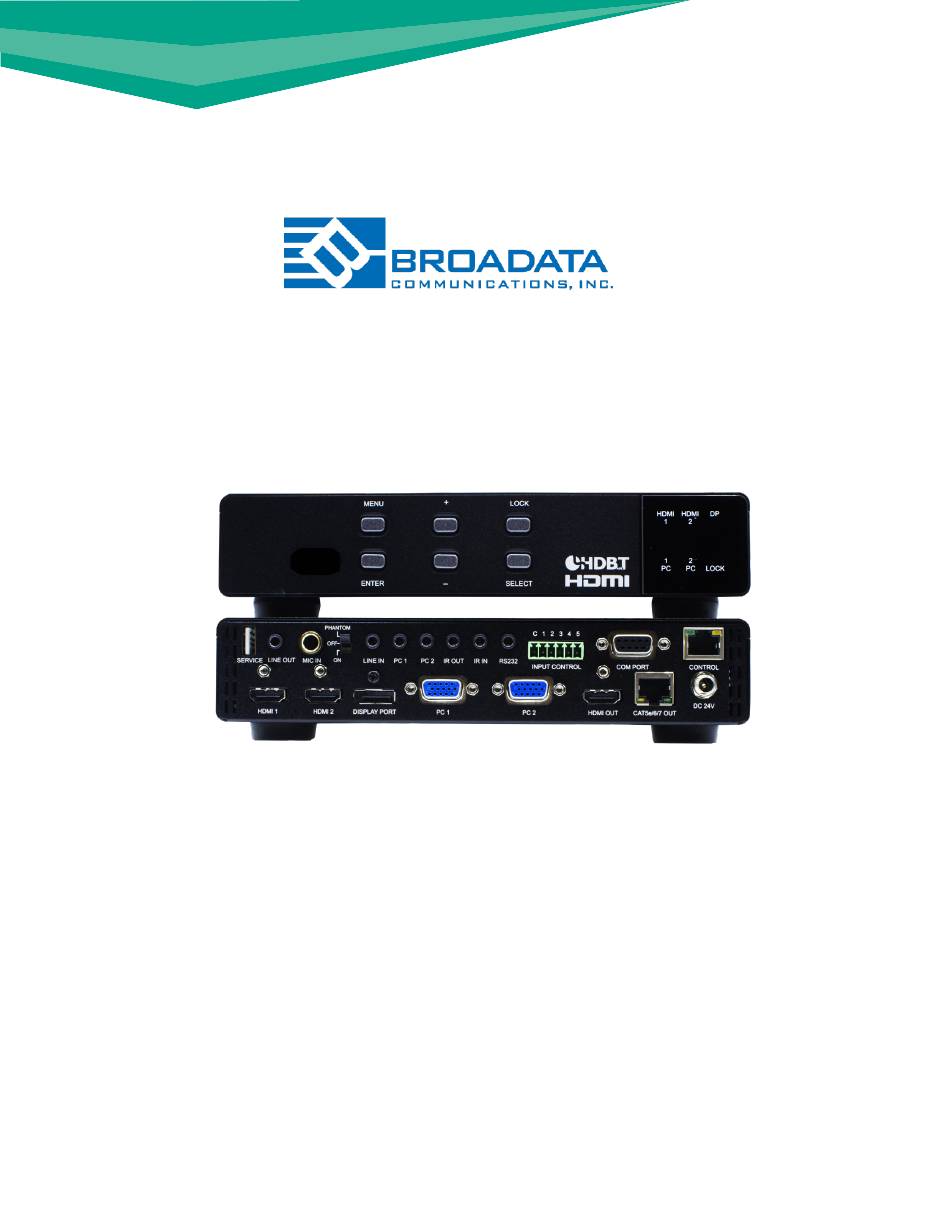

LINKBRIDGE™ PRESENTATION SCALING SWITCH
with 5 Inputs and Two Mirrored Outputs
LBC-PSW52
USER MANUAL
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Broadata LINKBRIDGE LBC-PSW52

Summary of Contents for Broadata LINKBRIDGE LBC-PSW52

  • Page 1 5 Inputs and Two Mirrored Outputs LBC-PSW52 USER MANUAL BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2019 Broadata Communications, Inc.
  • Page 2 SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATION PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes,surges,electric shock,lightning strikes, etc. Use of surge proctection system is highly recommended in order to protect and extend the life of your equipment.
  • Page 3 DC POWER CONNECTION Do not use this device near water/liquids. This device should not be exposed to dripping and splashing or liquids. Clean only with dry cloth. Do not use solvents such as paint thinners and acetone to clean external casing. Such agents will remove any labels on the device.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRODUCT DESCRIPTION OPERATION CONTROL AND FUNCTIONS FRONT/REAR PANEL CONNECTOR PIN OUT ASSIGNMENT WEB GUI CONFIGURATION API COMMANDS (RS-232 & TELNET) OSD MENU SPECIFICATIONS MAINTENANCE AND TROUBLESHOOTING SERVICE PROCEDURE REPLACEMENT POLICY 10.0 RETURN AND REPAIR SERVICE LIMITED WARRANTY HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)

  • Page 5: Product Description

    PRODUCT DESCRIPTION The LinkBridge™ HDBaseT Presentation Scaling Switch is a compact and robust switch that offers compact video and audio extension with the ability to scale 5 video inputs to 2 mirrored outputs. The Scaling Switch is capable of extending audio/video signals up to 70 meters over HDBaseT CAT 5e/6 cabling.
  • Page 6 PRODUCT DESCRIPTION PACKAGE CONTENTS • 1- HDBaseT LinkBridge™ HDBaseT Presentation Scaling Switch1 • 1- 24V/1A DC Power Adapter • 1- Power Cord • 1- Remote Control • 1- Operation Manual SYSTEM REQUIREMENTS • Source equipment such as media players, video game consoles, PCs, or set-top boxes.

  • Page 7: Operation Control And Functions

    OPERATION CONTROL AND FUNCTIONS FRONT PANEL LBC-PSW52 MENU LOCK HDMI HDMI LOCK ENTER SELECT “Menu” Button: Press this button to enter On Screen Display (OSD) menu. “-“ (Minus) Button: Press button to navigate down on OSD menu. “+” (Plus) Button: Press button to navigate up on OSD menu. “Lock”...

  • Page 8: Front/Rear Panel

    OPERATION CONTROL AND FUNCTIONS REAR PANEL LBC-PSW52 PHANTOM C 1 2 3 4 5 LINE OUT SERVIC MIC IN LINE IN PC 1 PC 2 R OUT IR IN RS232 INPUT CONTROL COM PORT CONTROL DC 24V HDMI HDMI 2 ISPLAY PORT PC 1 PC 2...
  • Page 9 OPERATION CONTROL AND FUNCTIONS REAR PANEL LBC-PSW52 CON’T PHANTOM C 1 2 3 4 5 SERVIC LINE OUT MIC IN LINE IN PC 1 PC 2 R OUT IR IN RS232 INPUT CONTROL COM PORT CONTROL DC 24V HDMI HDMI 2 ISPLAY PORT PC 1 PC 2...
  • Page 10 OPERATION CONTROL AND FUNCTIONS 10 9 HDMI1 : HDMI 1 source input HDMI2 : HDMI 2 source input Display Port source input PC1: PC1 source input PC2: PC2 source input EXIT: Exit from On Screen Display (OSD) MENU: Access to On Screen Display (OSD) RESET: Return to factory default setting (Ethernet setting remain the same) AUTO ADJUST: Auto adjust PC picture in central...

  • Page 11: Connector Pin Out Assignment

    CONNECTOR PINOUT ASSIGNMENT IR Cable Pin Outs IR Blaster Pin Out IR Extender IR Signal Power Power IR Signal Ground Not Used RS-232 Pin Out DEFINE Tx/Rx BAUD RATE 19200 DATA BITS PARITY BITS NONE HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
  • Page 12 DC POWER CONNECTION In order to make sure that you have a proper installation, please observe the following: Your AC jack has power. The 24VDC power supply is working. Your electrical system has proper grounding (this ensures that your power supply does not suffer from voltage variations).

  • Page 13: Web Gui Configuration

    WEB GUI CONFIGURATION The WebGUI is divided up into multiple sections (Input, Lock, Information, Display, Picture, Audio, Miscellany, and Factory) allowing for all functions of the unit to be viewed and controlled directly. If desired, the numerical value for many of the items can be entered directly by typing it in the box above the slider bar.
  • Page 14 WEB GUI CONFIGURATION INPUT This section allows for control of input selection with a choice between HDMI1, HDMI2, DP, PC1, and PC2. Once a selection is made, the switch will occur immediately. LOCK This section provides a way to turn the front panel lock on and off. INFORMATION This section provides details about the current input and output signals, as well as the firmware version of the unit.
  • Page 15 WEB GUI CONFIGURATION DISPLAY This section allows for control of the output resolution, size (aspect ratio), and HDCP behavior for all 3 digital inputs on the unit. There are also controls for the signal type expected by each PC input. Enabling "Comp In" for a PC input allows YUV (component video) signals to be used.
  • Page 16 WEB GUI CONFIGURATION PICTURE This section provides detailed controls for the output's RGB levels, contrast, and brightness for all input types. Additional controls for hue, saturation, sharpness and noise reduction are provided for digital input signals while H/V position, Phase, Clock and WXGA support is provided for the PC inputs.
  • Page 17 WEB GUI CONFIGURATION AUDIO This section provides controls for the Mic audio mixer as well as embedded audio. The microphone input volume, audio delay and output volume can be directly controlled. The preferred embedded audio source for each digital input may also be selected, and the input volume for each audio source can be set independently.
  • Page 18 WEB GUI CONFIGURATION MISCELLANY This section provides controls for auto input, auto sync off, OSD settings as well as EDID management. The EDID from one of the 2 outputs can be copied and used with any of the unit's digital inputs. HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
  • Page 19 WEB GUI CONFIGURATION NETWORK This section provides controls for the IP configuration. The IP Address, Netmask and Gateway can be set manually, or DHCP can be enabled for automatic IP configuration if the local network supports it. Click on “Display Current Setting” to display the current IP configuration.
  • Page 20 API COMMANDS (RS232 & TELNET) RS-232 AND TELNET COMMANDS Command Description List all commands. R VERSION Get firmware version. S FACTORY-RESET Return to factory default settings. S SOURCE x Set input source. x =0~4 0=HDMI 1 1=HDMI 2 2=DP 3=PC 1 4=PC 2 R SOURCE Read current input source.
  • Page 21 API COMMANDS (RS232 & TELNET) Command Description R OUTPUT Read output resolution. S SIZE x Set output aspect. x =0~6 1=Full 2=Follow Input 3=Pan Scan 4=Letter Box 5=Under 2 6=Under 1 R SIZE Read output aspect setting. S HDMI1-HDCP x Set HDCP mode for HDMI 1.
  • Page 22 API COMMANDS (RS232 & TELNET) Command Description S COLOR-R x Set red color level. x =0~1023 R COLOR-R Read red color level. S COLOR-G x Set green color level. x =0~1023 R COLOR-G Read green color level. S COLOR-B x Set blue color level.
  • Page 23 API COMMANDS (RS232 & TELNET) Command Description S PC-WXGA-XGA x Set WXGA/XGA preference. x =0, 1 0=WXGA 1=XGA R PC-WXGA-XGA Read PC WXGA/XGA status. S PC-RESET x Return to the default settings for the PC source. x =0,1 0=Off 1=On S MIXER x Set Mic mixer state.
  • Page 24 API COMMANDS (RS232 & TELNET) Command Description S HDMI2-AUDIO x Set HDMI 2 audio source. x = 0~2 0=Automatic 1=Analog 2=Embedded R HDMI2-AUDIO Read HDMI 2 audio source. S DP-AUDIO x Set DisplayPort audio source. x = 0~2 0=Automatic 1=Analog 2=Embedded R DP-AUDIO Read DisplayPort audio source.
  • Page 25 API COMMANDS (RS232 & TELNET) Command Description S OSD-V-POS x Set OSD vertical position. x = 0~100 R OSD-V-POS Read OSD vertical position. S OSD-TIMER x Set OSD automatic off time. x =10~100 (seconds) R OSD-TIMER Read OSD automatic off time. S OSD-TRANS x Set OSD transparency.
  • Page 26 API COMMANDS (RS232 & TELNET) Command Description R EDID-FROM Read which output the EDID is set to be copied from. S EDID-TO x Set the EDID copy destination. x = 0~3 0=None 1=HDMI1 2=HDMI2 3=DP R EDID-TO Read the input the EDID will be copied to.
  • Page 27 OSD MENU All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (Plus), − (Minus), ENTER, and MENU buttons to navigate the OSD menu. Press the “MENU” button to back out from any menu item and then press it again to close the menu.
  • Page 28 OSD MENU The individual functions of the OSD will be introduced in the following section. Items marked in BOLD are the factory default settings. 1. Source: Provides control over the selection of the input video source to output. 2. Size: Selects the aspect ratio to use when outputting the source.

  • Page 29: Osd Menu

    OSD MENU DISPLAY LEVEL LEVEL LEVEL RESOLUTION 640X480@60 800X600@60 1024X768@60 1280X768@60 1360X768@60 1280X720@60 1280X800@60 1280X1024@60 1440X900@60 1400X1050@60 1680X1050@60 1600X1200@60 1920X1080@60 1920X1200@60 720x480p@60 1280x720p@60 1920x1080i@60 1920x1080p@60 720x576p@50 1280x720p@50 1920x1080i@50 1920x1080p@50 NATIVE OUT 1 NATIVE OUT 2 HDCP ON INPUT HDMI 1 HDMI 2 COMP IN PC COMP IN PC 1...
  • Page 30 OSD MENU 1. Contrast: Provides control over the overall contrast of the scaled output image. 2. Brightness: Provides control over the overall brightness of the scaled output image. 3. Red/Green/Blue: Provides control over the red, green, and blue color level of the scaled output.
  • Page 31 OSD MENU 1. Mixer: Provides control over the mic mixer state. 2. Mic Volume: Provides control over the microphone volume. 3. Delay: Provides control over the audio delay. 4. Mute: Provides control over the audio mute state. 5. Output Volume: Provides control over the video output volume. 6.
  • Page 32 OSD MENU 1. Auto Input: Sets the auto detection of the input video source. 2. Auto Sync Off: Sets the amount of time to continue outputting sync with the free run color if there is no live source and no operations have been executed on the unit.
  • Page 33 OSD MENU 5. EDID Setup: Select the EDID to use with the HDMI1/HDMI2/DP input. Selecting “Output” will copy and use the current sink’s EDID but will not re-copy the EDID if the sink is changed. Selecting “Auto Output” will automatically copy and use the EDID from the current sink every time a new sink is connected.
  • Page 34 OSD MENU 1. Reset All: Selecting this option will reset the unit’s settings back to their factory defaults. 2. Update from USB: Provides a way to update the unit’s firmware. In- sert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option.

  • Page 35: Specifications

    SPECIFICATIONS VIDEO SPECIFICATIONS PHYSICAL Resolution Up to 1080p or 1920x1200@60Hz Dimensions 8.62”(W) x 6.14”(D) x 1.7”(H) Input Connectors 2- HDMI Female Plug Power Rating +24V DC, 1A (Max.) 2- HD-15 VGA Female* Operating Temperature 0 to 40ºC, operating 1- DisplayPort Humidity 20 to 90% RH, Non-Condensing Output Connectors...

  • Page 36: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING 3.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 3.2 Troubleshooting If the LBC-PSW52 units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections.

  • Page 37: Service Procedure

    The LBC-PSW52 contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •...

  • Page 38: Limited Warranty

    LIMITED WARRANTY 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of ship- ment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained.
  • Page 39 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com 2545 West 237th Street Website: www.broadatacom.com Torrance, CA 90505 800•214•0222 310•530•1416 e-mail: Sales@broadatacom.com www.broadatacom.com HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
