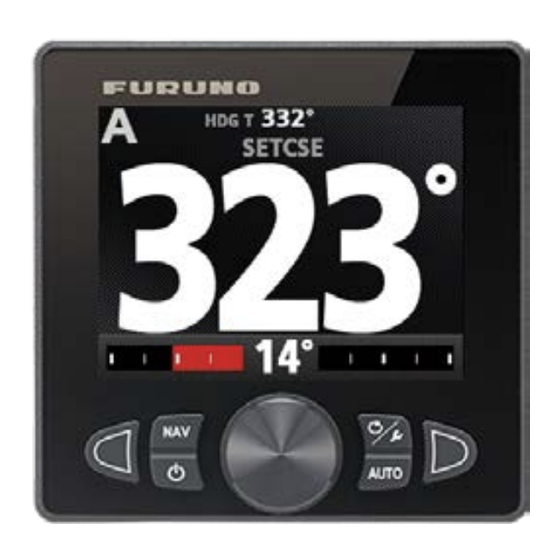

Furuno NAVpilot-711C Manual

With seastar optimus
Hide thumbs Also See for NAVpilot-711C:

Advertisement

Quick Links

Download this manual See also: User Manual, Instruction and Installation Manual
1. Optimus Seastar
1.1. What is Seastar Optimus?
1.2. Seastar Optimus with NAVpilot-711C
2. NAVpilot-711C
2.1. Interconnection
2.2. Wiring IF-NMEA2K2 to EVC (CAN 2)
2.3. Wiring IF-NMEA2K2 to NAVpilot-711C
(TB7)
NAVpilot-711C
Seastar Optimus
with
2.4. Initial Settings on NAVpilot-711C
2.5. Compatible Software Versions
Optimus CANTrak Display
3.1. Status Indication on Optimus CANTrak
Displays
3.2. OVRD (Override) Mode
3.3. Seastar Optimus Software Version
INDEX
1

Advertisement

loading

Related Manuals for Furuno NAVpilot-711C

Summary of Contents for Furuno NAVpilot-711C

  • Page 1 NAVpilot-711C Seastar Optimus with INDEX 1. Optimus Seastar 2.4. Initial Settings on NAVpilot-711C 1.1. What is Seastar Optimus? 2.5. Compatible Software Versions Optimus CANTrak Display 1.2. Seastar Optimus with NAVpilot-711C 3.1. Status Indication on Optimus CANTrak 2. NAVpilot-711C Displays 2.1. Interconnection 3.2.
  • Page 2 Overview Notes:  The IF-NMEA2K2 software version must be 1.16 or higher.  Set the IF-NMEA2K2 to high speed mode by cutting the orange wire. See IF-NMEA2K2 installation guide for additional information.  Software version of PCM, Pump Control Module, must be revision “T” or later. ...
  • Page 3 CAN3. CAN1 network is for the Optimus steering network. CAN2 network is for Optimus communication, display units and for a connection to the autopilot. CAN3 network is for NMEA2000 certified devices. The NAVpilot-711C is connected to CAN2 via an IF-NMEA2K2. Rudder control is achieved by plugging the IF-NMEA2K2 into the Optimus...
  • Page 4 NAVpilot-711C Interconnection The following drawing shows an overview of NAVpilot-711C connected to the Seastar Optimus network. The NAVpilot-711C processor unit FAP-7002 is connected to the Seastar Optimus system EVC bus, CAN2 via the IF-NMEA2K2 (v01.16 or later). The NMEA2000 port is connected to the NMEA2000 backbone to communicate for navigation data.
  • Page 5 Wiring IF-NMEA2K2 to NAVpilot-711C (TB7) Connect NMEA0183 wires of the IF-NMEA2K2 to the processor unit FAP-7002: TB7 (NMEA0183 Port 2) port as shown below. Make sure that the IF-NMEA2K2 mode is set to High Speed mode. Connection with TB7 (NMEA...
  • Page 6 Boat” is selected. Navpilot 711C compatible software versions The NAVpilot-711C is compatible with Seastar Optimus with the following software versions. Make sure to install the latest versions of both processor and control units in the correct combination, as well as the appropriate IF-NMEA2K2 serial number and version.
  • Page 7 Optimus CANtrack Display Operation Information The Optimus CANtrak display will show the current mode status at the top of the screen. Under normal operating conditions, “ALL HELMS ACTIVE” is displayed. The CANtrak display will show “AUTO-PILOT MODE” when the NAVPILOT is engaged in either the AUTO or NAV mode.
  • Page 8 The NavPilot-711C will display OVRD mode during the following conditions. When operating the Helm or Joystick, or in one of the Optimus operating modes such as Position Hold, Heading Hold or Position and Heading Hold. The Seastar Optimus system automatically...
  • Page 9 Appendix: Connection Diagrams...
