Nabco GT 710 Manual

Low energy operator swing door systems side load units
Hide thumbs Also See for GT 710:
Table of Contents

Advertisement

Quick Links

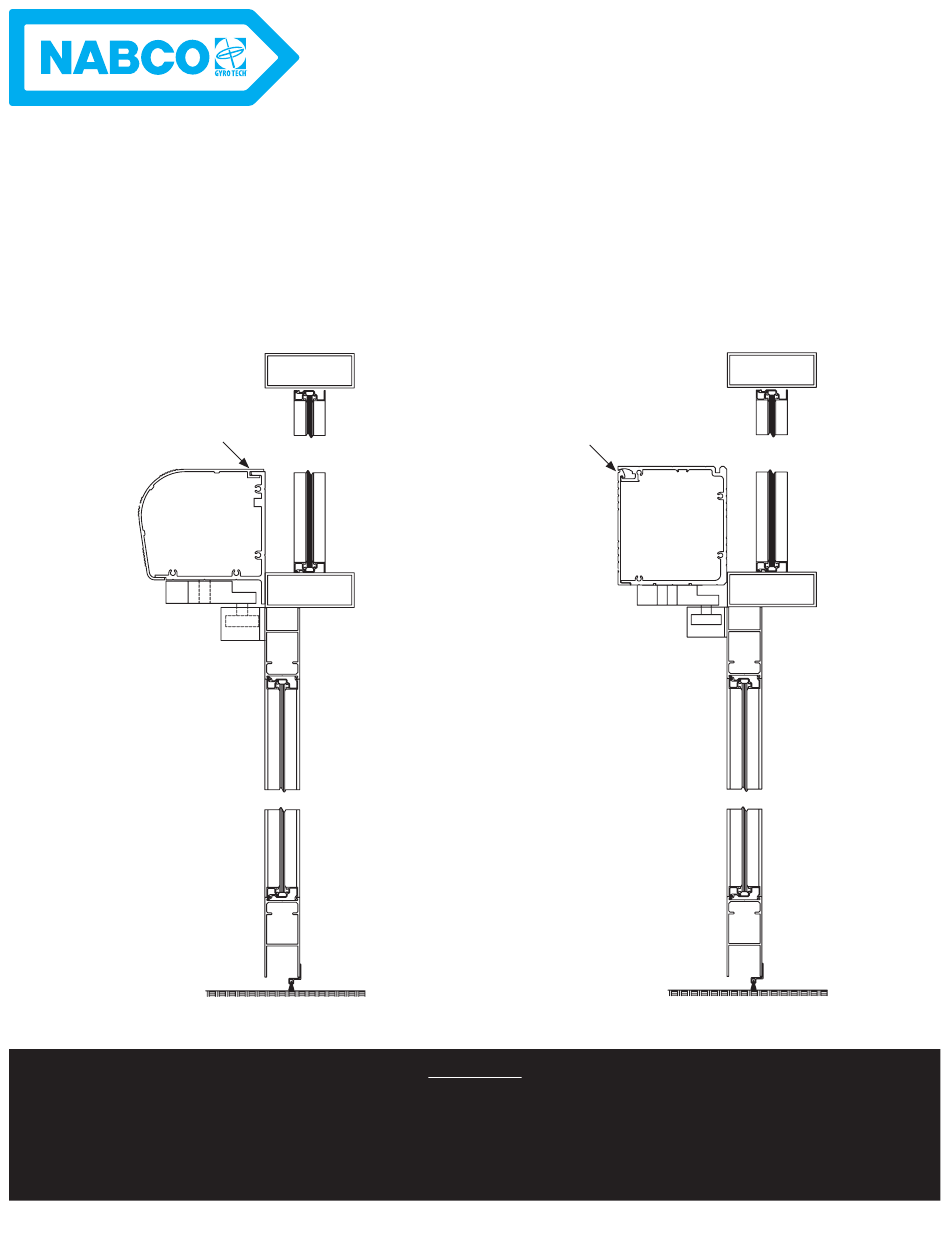

Low Energy Operator Swing Door Systems
GT710 SIDE LOAD UNIT
Hinged Side
Access Panel
DN 1078
• Turn OFF all power to the Automatic Door if a Safety System is not working.
• Instruct the Owner to keep all power turned OFF until corrective action can be achieved by a NABCO
trained technician. Failure to follow these practices may result in serious consequences.
• NEVER leave a Door operating without all Safety detection systems operational.
Side Load Units: GT 710 and 8710
WARNING
Technical Support: (866) 622-8325
GT8710 SIDE LOAD UNIT
Hinged Side
Access Panel
S82 W18717 Gemini Drive
Muskego, Wisconsin 53150
Phone: (877) 622-2694
Fax: (888) 679-3319
www.nabcoentrances.com
Part #15-10683
Rev. 9/24/14

Advertisement

Table of Contents
loading

Related Manuals for Nabco GT 710

Summary of Contents for Nabco GT 710

  • Page 1 • Turn OFF all power to the Automatic Door if a Safety System is not working. • Instruct the Owner to keep all power turned OFF until corrective action can be achieved by a NABCO trained technician. Failure to follow these practices may result in serious consequences.
  • Page 2 THIS PAGE IS INTENTIONALLY LEFT BLANK...

  • Page 3: Table Of Contents

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 Table of Contents Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii General Safety Recommendations .

  • Page 4: Warning Labels

    GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 WARNING LABELS Warning labels are universal and used to alert an individual of potential harm to one’s self or to others. The following warning labels are listed in a hierarchy order that defines the most potential danger first, and the least potential danger last. Please refer to this page in the event that a warning label is displayed within this manual and further definition needs to be explained.

  • Page 5: General Safety Recommendations

    ► It is the responsibility of the purchasing facility or end user to keep warning and ► instructional labels and literature legible, intact and with the door. ► Replacement labels and literature may be obtained from local NABCO Entrances, Inc. ► distributors. If the name of the local distrubutor is unknown, contact NABCO Entrances, Inc.

  • Page 6: Chapter 1: Scope

    • NEVER leave a Door operating without all Safety detection systems operational. Section 1b: Objective GT 710/8710 Swing Door Low Energy Units are designed to be installed onto the top surface of the Door Frame. The Operator is controlled by the Magnum IV Control that offers many features to accommodate most installation options.

  • Page 7: Chapter 2: Getting Started

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 CHAPTER 2: GETTING STARTED Section 2a: Electrical Standards Note:  It is recommended for the Installer to use an Electrical Conduit to house all incoming 120 VAC wires. Note:  All wiring must conform to standard wiring practices and be in accordance with national and local electrical codes.

  • Page 8: Section 2D: How To Determine Handing

    To Determine Handing from the Operator: go to the top of the LCN Door Closer. The letter “R” or “L” will be marked on the Shaft by the NABCO Factory. Please see Figure 2-2. “L” for Le ; “R” for Right Figure 2-2 Handing Labeled...

  • Page 9: Section 2E: Swing Door Types

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 Section 2e: Swing Door Types Inswing Inswing Single Single Le Hand Right Hand Simultaneous Simultaneous Inswing Pair Outswing Pair Outswing Outswing Single Single Right Hand Le Hand Dual Inswing...

  • Page 10: Chapter 3: Install The Header

    GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 CHAPTER 3: INSTALL THE HEADER Section 3a: Inswing Doors FOR OUTSWING UNITS SKIP TO SECTION 3B 1.►Open the Swing door 90 degrees. 2.►Measure between the wall and the outside face of the Swing Door.

  • Page 11: Section 3C: Prepare The Door Frame

    Note:  If the Door Frame is not properly reinforced nor anchored to the building surface, and/or is hollow, reinforce the Door Frame with 1/4-20 blind rivnuts (not provided by NABCO). 1.►Go to the Pivot Side of Swing door. Note:  If the Door Frame is not Metal, ensure the Door Frame being used is of equal strength.
  • Page 12 GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 Pivot side of Header 1-1/8” 1/4” screw holes (GT 8710) Pivot Door Jamb Pivot side of Header 1/8” 1/4” screw holes (GT 710) Figure 3-4 Position Header onto Door Frame...

  • Page 13: Section 3D: Secure Header To The Door Frame

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 Shim Header Wall Wall Shim Header Top of Door Frame Top of Door Frame Swing Door Swing Door Figure 3-6 Shim between Conversion Unit and Wall DN 1080 GT 710 SIDE LOAD SWING DOOR GT 8710 SIDE LOAD SWING DOOR Section 3d: Secure Header to the Door Frame...

  • Page 14: Chapter 4: 110 Vac General Wiring

    GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 CHAPTER 4: 110 VAC GENERAL WIRING 4-12 110 VAC General Wiring...

  • Page 15: Chapter 5: Install The First Half Of Swing Arm

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 CHAPTER 5: INSTALL THE FIRST HALF OF SWING ARM Section 5 a: Outswing Arm FOR INSWING ARMS SKIP TO SECTION 5 B Face of Swing Door = Reveal Back of Header Figure 5-1 What is Reveal?
  • Page 16 GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 Threaded Rod Swing Arm Arm Shoe Rod End Threaded Rod Figure 5-3 Disassemble the Outswing Arm DN 1117 2.►Go to Table 5-2 to locate the appropriate length measurement for the Threaded Arm.

  • Page 17: Section 5 B: Inswing Arm

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 7.►Cut the Plastic Tube to the same length as the exposed Rod (between the Links and Nuts). 8.►Slide the Plastic Tube over the Threaded Rod. 9.►Replace the Rod Link back onto the Threaded Rod.
  • Page 18 GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 2.►Mark a Vertical line reflecting the measured distance on the face of the Swing door. Please see Figure 5-7. Table 5-3 Small Track Mounting Locations (12-1/4 inches) Dim A Dim A...
  • Page 19 GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 3.►Go to the top edge of the Swing Door. Measure: 0 inch Reveal (Straight Arm): • 11/16 inch from the top edge of the Swing Door down to the center of the Swing Door.

  • Page 20: Chapter 6: Install The Second Half Of Swing Arm

    GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 CHAPTER 6: INSTALL THE SECOND HALF OF SWING ARM Section 6 a: Set Pre-Load Proper Preload is critical for the Control/Operator to open/close the Swing Door WARNING correctly. Power must be turned OFF during the Swing Arm installation.

  • Page 21: Section 6 B: Secure The Swing Arm To The Swing Door

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 RIGHT HAND INSWING DN 0022 DN 0023 Figure 6-3 Preload: Inswing Arm LEFT HAND OUTSWING DN 1134 RIGHT HAND INSWING 0 REVEAL DN 0025 DN 0024 LEFT HAND INSWING Figure 6-4 Preload: Inswing Arm with Zero Reveal...
  • Page 22 GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 Threaded Rod Threaded Rod 3/8”-24 x 1-1/4” 3/8”-24 x 1-1/4” Socket Screw 5/16-24 5/16-24 Socket Screw Set Screw Set Screw .405 Washer .405 Washer Swing Arm Swing Arm (Standard Profi...

  • Page 23: Chapter 7: Install The Magnets

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 CHAPTER 7: INSTALL THE MAGNETS Power must be turned OFF while installing the Magnets. CAUTION When Magnets are correctly set, the Green LED on the Magnum 4A Control will be: Note:  Magnetic Reed Switches are reversed according to Handing of door (LH vs RH).
  • Page 24 GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 LEFT HAND RIGHT HAND OUTSWING OUTSWING DOOR FULLY OPEN DOOR FULLY OPEN Back Check Magne c Switch ALL MAGNETS MUST BE INSTALLED WHITE SIDE UP LEFT HAND...
  • Page 25 GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 1.►Obtain (1) 1/4 inch square x 1 inch long Magnet. Please see Figure 7-3. 5.2 Insert The Latch Check Magnet 2.►Manually Close the Swing door to the Fully Closed position (0 degrees).

  • Page 26: Chapter 8: Adjustments

    GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 CHAPTER 8: ADJUSTMENTS Section 8a: LCN Tension Spring Improperly installed/adjusted Tension Springs may cause property damage or WARNING personal injury. Please follow instructions carefully. Opening Force must be properly adjusted on the LCN Tension Spring - BEFORE - CAUTION the Magnum 4A Control can be adjusted.
  • Page 27 GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 8.b.a: Adjust Main Speed 1.►Turn Power OFF. 2.►Insert 3/32 Allen Wrench into the Main Speed adjustment hole. If the adjustment hole is blocked by the sprocket, slightly close the Swing door until the adjustment Valve can be accessed.

  • Page 28: Chapter 9: Install The Arm Stop

    GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 CHAPTER 9: INSTALL THE ARM STOP Power must be turned OFF while installing the Arm Stop. CAUTION Do Not drill screw holes for the Arm Stop into the Motor/Operator!!! CAUTION 1.►Turn Power OFF.

  • Page 29: Chapter 10: Troubleshooting

    GT 710-8710 Swing Door System Low Energy Operator Rev. 9-24-14 Part #15-10683 CHAPTER 10: TROUBLESHOOTING Table 10-1 Most Common Slide Door Problems Operator does not Check Fuse 2 (F2) Replace Fuse Problem Action/Cause Solution function. Check for 120 VAC at Check incoming power. If power is good, check Connector J5 connection to motor.
  • Page 30 GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com Part #15-10683 Rev. 9-24-14 Sensor shows activation Sensor not connected properly to Check harness wiring to wiring diagram Problem Action/Cause Solution signal sent, but door activation connector. does not open. One sensor does not Sensor is not connected to both Install Simultaneous Pair Harness (P/N 2210270).

This manual is also suitable for:

8710

Table of Contents
